Quick Details
-
Voltage:
-
380V/220V,AC
-
Weight:
-
Based on equipmenmt
-
Dimension(L*W*H):
-
Based on equipmenmt
-
Certification:
-
ISO,TUV,GB
-
Product name:
-
Industrial oxygen concentrator China manufacture Oxygen gas plant
-
Oxygen generation system capacity:
-
40Nm3/h
-
Purity:
-
93%
-
Technology:
-
pressure swing adsorption(PSA)
-
Mounting:
-
Skid mounted
-
Main surface paint:
-
Sky blue or customization
-
Service life:
-
over 10 years under proper maintenance
-
Customization:
-
available
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KL
-
Production Rate:
-
90%
-
Voltage:
-
380V/220V,AC
-
Weight:
-
Based on equipmenmt
-
Dimension(L*W*H):
-
Based on equipmenmt
-
Certification:
-
ISO,TUV,GB
-
Product name:
-
Industrial oxygen concentrator China manufacture Oxygen gas plant
-
Oxygen generation system capacity:
-
40Nm3/h
-
Purity:
-
93%
-
Technology:
-
pressure swing adsorption(PSA)
-
Mounting:
-
Skid mounted
-
Main surface paint:
-
Sky blue or customization
-
Service life:
-
over 10 years under proper maintenance
-
Customization:
-
available

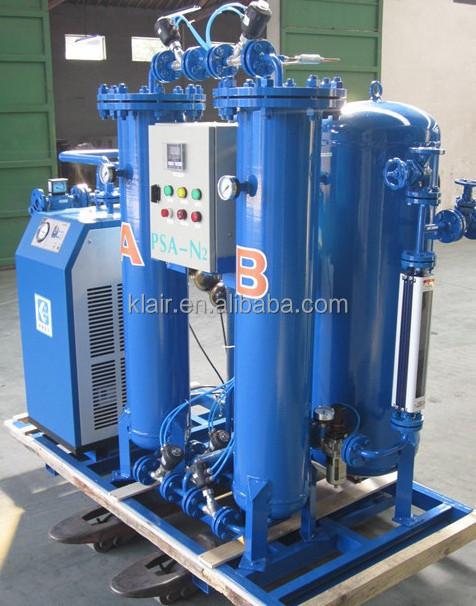

Industrial oxygen concentrator China manufacture Oxygen gas plant
Welcome to>> Hangzhou Kelin Aier Qiyuan Equipment Co., Ltd.
Features:
* Low investment, small workload of construction;
* Low energy consumption, advanced process system;
* High automation, less operators;
* Quickly start, and conveniencely open and shut down;
* Low costs of maintenance;
* Stable operation and highly reliable;
* High quality pneumatic control valves, safe, reliable and durable;
* High quality special oxygen molecular sieve adsobent, good adsorption properties.
How it works ?
The raw air will be removed its particle by inlet filter and then be pressurized to about 40Kpa.
The air temperature from the air blower is about 75C, after to be cooled by cooling water, it will flows into one of adsorption tower which filled with adsorber.When the raw air flows from the bottom tower to upper tower, the
nitrogen will be adsorbed, oxygen will be oncentrated at the top of tower and be delivered out as product gas.
When the adsorber almost reaches to saturation, in the action of controller, the valves will be switched, the raw air flows into annotheradsorption tower to adsorb. Saturated adsorption tower will be decompressurized to atmosphere pressure andthen be vacuumized to about -60Kpa,product gas will be introduced into the tower to pruge the adsorption bed, thereby,the adsorber will be desorbed, and prepare for the next cycle.
The two adsorption towers adsorb and desorb alternately to produce oxygen gas continuously. Raw air shifting from one adsorption tower to another tower is controlled by pneumatic valves, the action process of valves is realized by PLC controller. Centralized control system enables the whole system to work automatically.
Flow Chart:
1.Air compressor one set
2.Compressed air pretreatment system (dryer and multistage filters) one set
3.Air buffer tank one set
4.PSA oxygen generator one set
5.Oxygen gas buffer tank one set
6.Oxygen booster one set
7.Filling station one set
8.Control system one set (including man-machine control interface)
9.Instrument and meter (installed in nitrogen generator) one set
Flow Chart
| Model | Capacity(Nm3/h) | Air consumption(Nm3/min) | Purity (%) | Outlet pressure (bar) | Buffer tank |
| KPO-5 | 5 | 1.2 | 93% | 2~3 | CG-0.3 |
| KPO-10 | 10 | 2.5 | CG-0.5 | ||
| KPO-15 | 15 | 3.5 | CG-0.6 | ||
| KPO-20 | 20 | 5.0 | CG-1 | ||
| KPO-30 | 30 | 7.5 | CG-1.5 | ||
| KPO-35 | 35 | 8.5 | CG-2 | ||
| KPO-40 | 40 | 10.0 | CG-2 | ||
| KPO-50 | 50 | 12.0 | CG-2.5 | ||
| KPO-60 | 60 | 15.0 | CG-2.5 | ||
| KPO-80 | 80 | 19.0 | CG-2.5 | ||
| KPO-100 | 100 | 24.0 |
CG-4
|
Delivery time
Generally 50 working days after the order confirmed
Packaging
1) Custom package request is appreciate.
2) Standard package:
Standard Export Packaging(Wooden Crates, cartons, waterproof fabric...etc)
How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)O 2 flow rate: _____Nm3/hr
2)O2 purity: _____%
3)O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
