- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GORENCY
-
Theory:
-
Infrared
-
Output:
-
35ms
-
Description:
-
IR sensor module
-
Voltage:
-
DC 4.5V-6.6V
-
Size(cm):
-
10*29
-
Sensor distance:
-
Tap sensors: 15 CM, 28 CM
-
Error distance:
-
±1%
-
Switch off time delay:
-
0.5 S ( adjustable)
-
Maximum washing period:
-
60 S
-
Low voltage indicator:
-
< 4.5V
-
Maximum output current:
-
800 mA
-
Low power consumption:
-
< 20 mA
-
Warranty:
-
2 years
Quick Details
-
Use:
-
Sensor Sanitary Wares
-
Model Number:
-
FS-1235
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GORENCY
-
Theory:
-
Infrared
-
Output:
-
35ms
-
Description:
-
IR sensor module
-
Voltage:
-
DC 4.5V-6.6V
-
Size(cm):
-
10*29
-
Sensor distance:
-
Tap sensors: 15 CM, 28 CM
-
Error distance:
-
±1%
-
Switch off time delay:
-
0.5 S ( adjustable)
-
Maximum washing period:
-
60 S
-
Low voltage indicator:
-
< 4.5V
-
Maximum output current:
-
800 mA
-
Low power consumption:
-
< 20 mA
-
Warranty:
-
2 years
Product Description
|
Power supply
|
DC 4.5V-6.6V
|
|
Infrared sensor distance factory default setting for different applications: (Adjusted with a remote)
|
Tap sensors: 15 CM, 28 CM
Soap dispenser: 10 CM Urinal sensors: 40 CM, 55 CM. WC sensors: 65 CM |
|
Error distance
|
±1%
|
|
Switch off time delay
|
0.5 S ( adjustable)
|
|
Maximum washing period
|
60 S
|
|
Low voltage indicator
|
< 4.5V
|
|
Maximum output current
|
800 mA
|
|
Low power consumption
|
< 20 mA
|
|
Warranty
|
2 years
|
Product Feature
Automatic on/off, the infrared sensor supports applications that either measure the distance of a target object or detect its presence.
Anti-interference, the system can be resistant to interference in other systems, sunlight, light, and battery.
Customized setting: working modes and parameters can adjust with a remote or a smartphone APP.
Low power consumption: with regular use average 200 times per day, the battery life of 4 AA battery lasts for three years
Water flow control system
This sensor PCB, designed for a wide range of applications, a variety of sensor housings and wire connections optional.

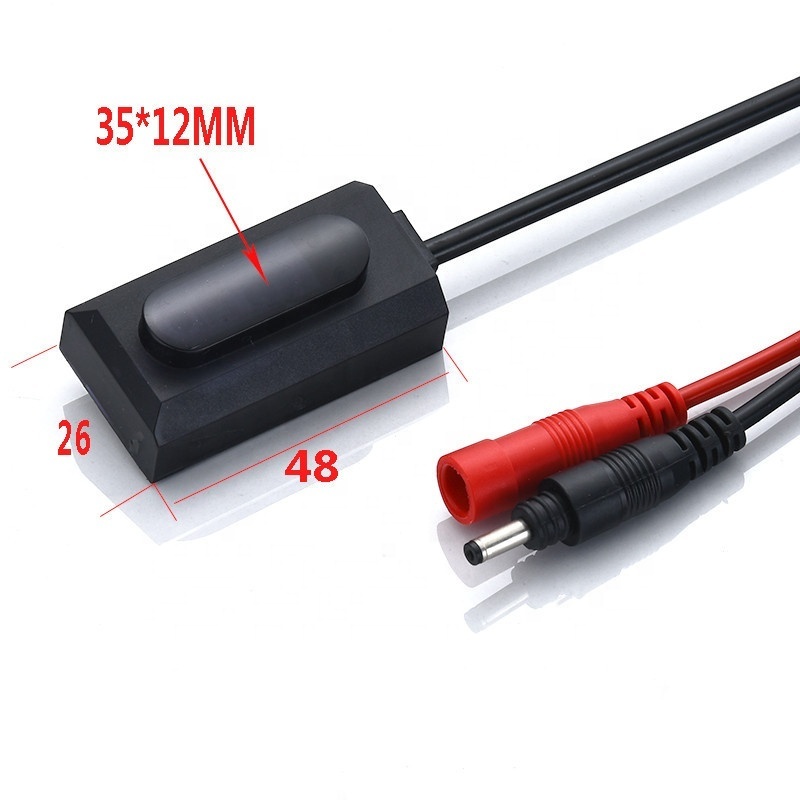

Plastic sensor housing
There is strong resistance to abrasion, weathering, corrosion. Can be formed on the surface of a variety of colors. Have a strong hardness, can be well-protected electronics.
Waterproof connector wires
IP68, different models waterproof can do customized
Company Introduction
Wenzhou Yuanjing Intelligent Home Co., Ltd, was established in 1983 and located in Wenzhou Zhejiang China. We were the first and best company in China who develop sensor modules, sensor faucet, sensor urinal, hand dryer, soap dispenser and so on. Moreover, we are a Chinese high-tech enterprise with multiple utility model patents and inventions patents.
We are developed to providing you professional, intelligent, environmentally-friendly and high quality kitchen and bathroom sensor sanitary wares. We are also devoted to providing professional intelligent water solutions for enterprise in the kitchen and bathroom fields. We are committed to improving your life with intelligent water solutions.
Our Advantage
1.We were the first and best company in China who develop sensor modules, sensor faucet, sensor urinal, hand dryer, soap dispenser and so on.
2.Your inquiry will be replied in 2 hours.
3.Well-trained and experienced staff in GORENCY will reply your inquires with fluent English.
4.OEM is provided for your designing as well as our models.
5.Follow business confidential rules.
Certificate
Sample Display
Partner
Packing&Shipping
Soft Protection Cushion + Carton
FAQ
Q1: Are you trading company or manufacturer?
A: Yes, we are professional sensor sanitary wares manufacturer. We supply automatic hand dryer, automatic faucet, sensor urinal and toilet flusher. We have 2 factories in Fuzhou and Guangdong.
Q2: Can we place a trial order to do some test?
A: Sure, we have test our products for many terms, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order.
Q3: Do you accept OEM order?
A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery.
Q4: What is your terms of payment?
A: T/T, L/C at sight, and Western Union are available for our company.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q6: How about your delivery time?
A: 35 days for container order, 7-10 days for sample order. The specific delivery time depends on the items and the quantity of your order.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2years warranty to our products.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customer`s benefit.
2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from.
