Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINOOUTPUT
-
Dimension(L*W*H):
-
2730x1320x1670
-
Weight:
-
3200
-
Rated power/speed:
-
220/1000
-
Marketing Type:
-
Hot Product 2022
-
Engine type:
-
four-stroke direct injection supercharged and intercooled
-
Bore*Stroke:
-
170x200mm
-
Rated speed:
-
1000 to 1500rpm
-
Number of cylinders:
-
in-line 6/8
-
Compression ratio:
-
14.5:1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Average effective pressure:
-
8.27 to 15.8bar
-
Fuel consumption rate:
-
196g/kWh
-
Oil consumption rate:
-
0.7 g/kWh
Quick Details
-
Displacement:
-
27.22L, 27.22L
-
Emission Standard:
-
IMO TIER II
-
Power:
-
285-816HP
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINOOUTPUT
-
Dimension(L*W*H):
-
2730x1320x1670
-
Weight:
-
3200
-
Rated power/speed:
-
220/1000
-
Marketing Type:
-
Hot Product 2022
-
Engine type:
-
four-stroke direct injection supercharged and intercooled
-
Bore*Stroke:
-
170x200mm
-
Rated speed:
-
1000 to 1500rpm
-
Number of cylinders:
-
in-line 6/8
-
Compression ratio:
-
14.5:1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Average effective pressure:
-
8.27 to 15.8bar
-
Fuel consumption rate:
-
196g/kWh
-
Oil consumption rate:
-
0.7 g/kWh
Product Description

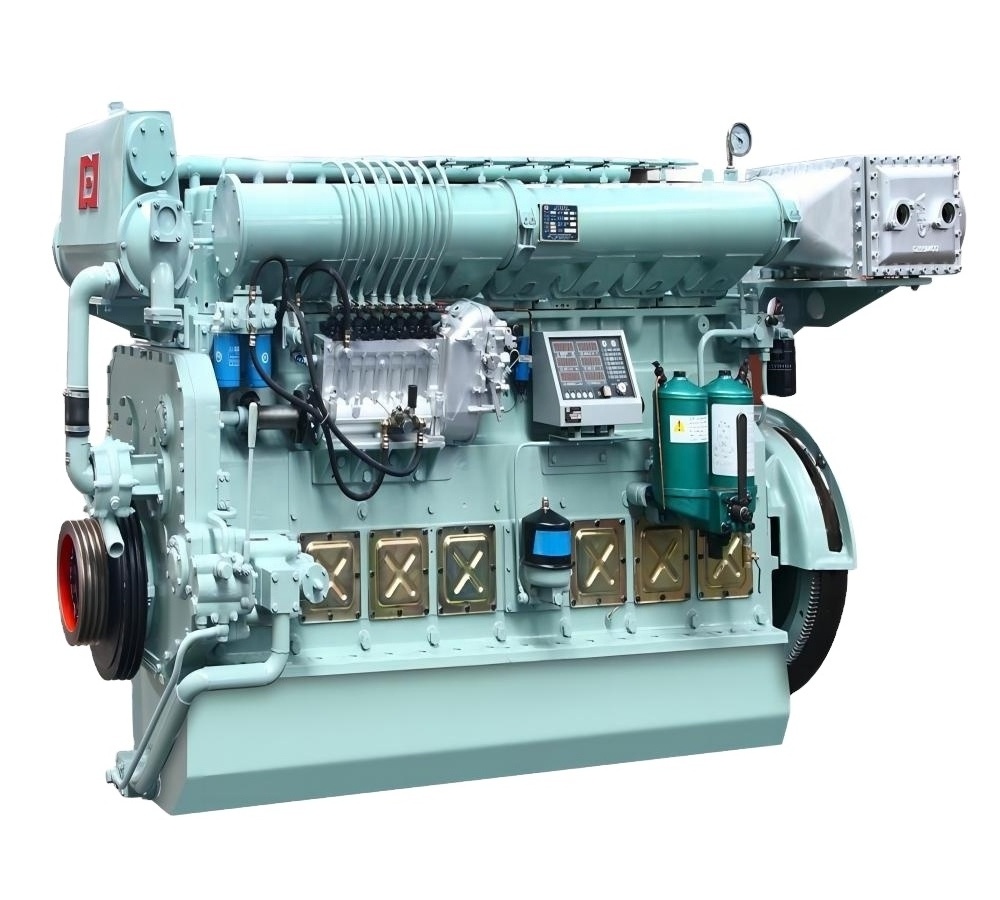

SINO-816 Marine Diesel Engine(285~816hp)
Item No.: 00578
Power: 210~600kW(285~816 HP)
four-stroke, direct injection, supercharged and intercooled
Number of cylinders: in-line 6/8
|
Main parameters of diesel engine
|
|
|
|
|||
|
Diesel engine power
|
210~600kW (285~816 HP)
|
Fuel consumption rate
|
196+3%g/kW·h
|
|||
|
Diesel engine form
|
four-stroke, direct injection, supercharged and intercooled
|
Oil consumption rate
|
≤0.7 g/kW·h
|
|||
|
Number of cylinders
|
in-line 6/8
|
NOx emission standard
|
IMO Tier II
|
|||
|
Bore x Stroke
|
170 x 200mm
|
Cylinder height
|
3800 mm above the crankshaft centerline
|
|||
|
Speed
|
1000~1500rpm
|
Average effective pressure
|
8.27~15.8bar
|
|||
|
Compression ratio
|
14.5:1
|
|
|
|||
|
Standard and Optional Parts
|
|
|
|
|||
|
Cooler
|
shell-and-tube heat exchanger (standard)
|
|
|
|||
|
Governor
|
mechanical governor (standard), electronic governor (optional)
|
|
|
|||
|
Silencer
|
optional
|
|
|
|||
|
Exhaust expansion joint
|
optional
|
|
|
|||
Sinooutput
Marine Diesel Engine
Sinooutput Group LTD. We are one of the support of World Expo. Supporters for the green power, also we are authorized by Shanghai marine field bureau for special supplier for the military boat, yacht etc. We are mainly focus on the marine field. Our headquarter set up in 1958 year, now we have our own shipyard and vessel repair workshop and six offices and more than 20 after sale service bureau in China.
Specification
|
Parameters Table
|
|
|
||
|
Item
|
Unit
|
Data
|
||
|
Type
|
|
Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection, non-reversible
|
||
|
Bore×Stroke
|
mm
|
170×200
|
||
|
Number of Cylinders
|
|
6 / 8
|
||
|
Displacement
|
L
|
27.22 / 36.29
|
||
|
Compression Ratio
|
|
14.5 : 1
|
||
|
Speed
|
rpm
|
1000 – 1500
|
||
|
SFOC
|
g/kW·h
|
≤194+3% (at 100% MCR)
|
||
|
SLOC
|
g/kW·h
|
≤192+3% (at 85% MCR)
|
||
|
Starting Mode
|
|
Compressed-air motor or electric motor
|
||
|
Direction of Rotation
|
|
Starboard engine: clockwise（aft. end）
|
||
|
|
|
Port engine: anticlockwise（aft. end）
|
||
|
Minimum Height for Lifting Piston
|
mm
|
1260 (above crankshaft centerline)
|
||
|
Outline Dimensions
|
mm
|
6 cylinders: 2730×1320×1670
|
||
|
Length×Width ×Height
|
mm
|
8 cylinders: 3180×1360×1680
|
||
|
Net Weight
|
Kg
|
3200 / 3800
|
||
|
Model Portfolio Table
|
|
|
|
|
|
|
|
|||||||
|
Series
|
Model
|
|
MCR
|
Speed rpm
|
MEP Mpa
|
Mean Piston Speed m/s
|
NOX Emission Standard
|
|||||||
|
|
Starboard
|
Port
|
kW/Ps
|
|
|
|
|
|||||||
|
N6170
|
N6170ZLC1
|
NZ6170ZLC1
|
220/299
|
1000
|
0.97
|
6.67
|
IMO Tier II
|
|||||||
|
|
N6170ZLC2
|
NZ6170ZLC2
|
250/340
|
1000
|
1.02
|
6.67
|
IMO Tier II
|
|||||||
|
|
N6170ZLC6
|
NZ6170ZLC6
|
294/400
|
1200
|
1.08
|
8
|
IMO Tier II
|
|||||||
|
|
N6170ZLC8
|
NZ6170ZLC8
|
350/476
|
1200
|
1.286
|
8
|
IMO Tier II
|
|||||||
|
|
N6170ZLC9
|
NZ6170ZLC9
|
385/524
|
1200
|
1.414
|
8
|
IMO Tier II
|
|||||||
|
|
N6170ZLC10
|
NZ6170ZLC10
|
350/476
|
1350
|
1.157
|
9
|
IMO Tier II
|
|||||||
|
|
N6170ZLC12
|
NZ6170ZLC12
|
430/585
|
1350
|
1.404
|
9
|
IMO Tier II
|
|||||||
|
|
N6170ZLC14
|
NZ6170ZLC14
|
450/612
|
1500
|
1.323
|
10
|
IMO Tier II
|
|||||||
|
|
N6170ZLC15
|
NZ6170ZLC15
|
225/306
|
1200
|
0.827
|
8
|
IMO Tier II
|
|||||||
|
|
N6170ZLC16
|
NZ6170ZLC16
|
210/286
|
1000
|
0.926
|
6.67
|
IMO Tier II
|
|||||||
|
N8170
|
N8170ZLC1
|
NZ8170ZLC1
|
441/600
|
1000
|
1.46
|
6.67
|
IMO Tier II
|
|||||||
|
|
N8170ZLC2
|
NZ8170ZLC2
|
480/653
|
1200
|
1.32
|
8
|
IMO Tier II
|
|||||||
|
|
N8170ZLC3
|
NZ8170ZLC3
|
540/734
|
1350
|
1.32
|
9
|
IMO Tier II
|
|||||||
|
|
N8170ZLC4
|
NZ8170ZLC4
|
600/816
|
1500
|
1.32
|
10
|
IMO Tier II
|
|||||||
|
|
N8170ZLC5
|
NZ8170ZLC5
|
480/653
|
1000
|
1.58
|
6.67
|
IMO Tier II
|
|||||||
|
|
N8170ZLC6
|
NZ8170ZLC6
|
529/719
|
1200
|
1.46
|
8
|
IMO Tier II
|
|||||||
|
|
N8170ZLC8
|
NZ8170ZLC8
|
575/782
|
1350
|
1.41
|
9
|
IMO Tier II
|
|||||||
|
|
N8170ZLC10
|
NZ8170ZLC10
|
350/476
|
1000
|
1.157
|
6.67
|
IMO Tier II
|
|||||||
|
|
N8170ZLC12
|
NZ8170ZLC12
|
400/544
|
1200
|
1.102
|
8
|
IMO Tier II
|
|||||||
|
|
N8170ZLC15
|
NZ8170ZLC15
|
500/680
|
1500
|
1.1
|
10
|
IMO Tier II
|
|||||||
|
|
N8170ZLC16
|
NZ8170ZLC16
|
440/598
|
1000
|
1.45
|
6.67
|
IMO Tier II
|
|||||||
