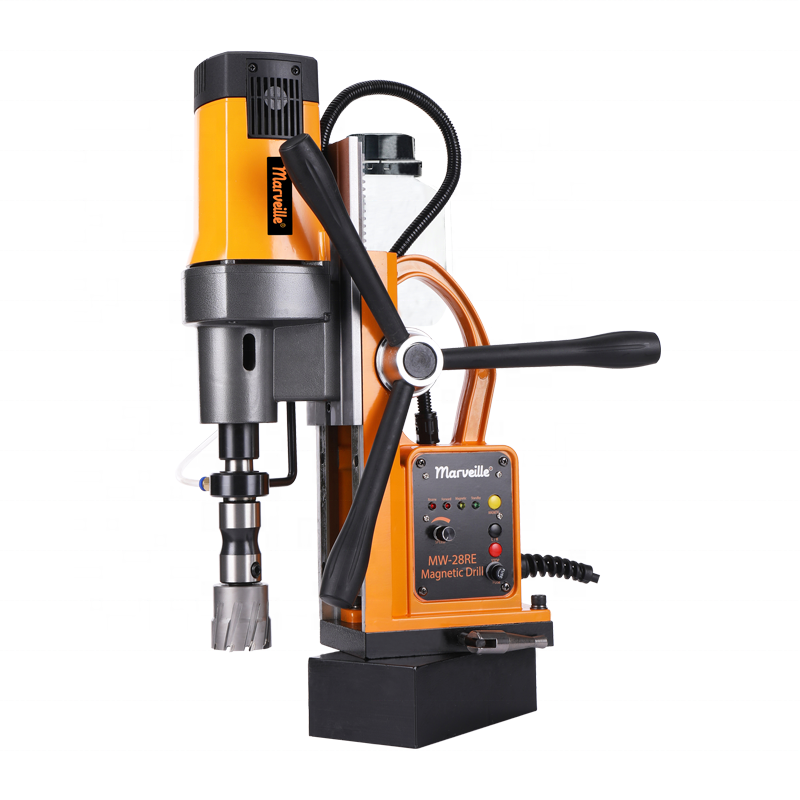

Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
MW-28RE
-
Brand Name:
-
Marveille
-
Dimensions:
-
58*42*22CM
-
No-Load Speed:
-
0-500rpm, 0-500rpm
-
Max. Drilling Diameter:
-
Twist bit:28mm, Annular cutter:55mm, Tapping:20mm, 28mm/55mm/20mm
-
Product name:
-
Magnetic Base Drill
-
Application:
-
Steel Plate
-
Rated Input Power:
-
1850W
-
Rated Voltage:
-
110V/220~240V
-
Certification:
-
CE UKCA
-
Magnetic Adhesion:
-
16000N
-
Packing:
-
Plastic Box + Carton Box
Quick Details
-
Warranty:
-
1 Year
-
Voltage:
-
220-240V, 110V
-
Drill Type:
-
Magnetic Drill
-
Power Source:
-
Electric
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
MW-28RE
-
Brand Name:
-
Marveille
-
Dimensions:
-
58*42*22CM
-
No-Load Speed:
-
0-500rpm, 0-500rpm
-
Max. Drilling Diameter:
-
Twist bit:28mm, Annular cutter:55mm, Tapping:20mm, 28mm/55mm/20mm
-
Product name:
-
Magnetic Base Drill
-
Application:
-
Steel Plate
-
Rated Input Power:
-
1850W
-
Rated Voltage:
-
110V/220~240V
-
Certification:
-
CE UKCA
-
Magnetic Adhesion:
-
16000N
-
Packing:
-
Plastic Box + Carton Box
Products Description
Product Paramenters
|
Model No.
|
Rated Voltage
|
Rated Power
|
Drill Range
|
Core Range
|
Tapping Range
|
Magnetic Adhesion
|
Max.
Stroke
|
No-load Speed
|
|
MW-16RE
|
110V/
220~240V~
50/60Hz
|
1550W
|
Ф3-16mm
|
|
ФM3-16
|
13500N
|
140mm
|
0-690r/min
|
|
MW-16TC
|
|
1600W
|
Ф3-16mm
|
|
ФM3-16
|
14500N
|
140mm
|
0-750r/min
|
|
MW-25RE
|
|
1650W
|
Ф3-25mm
|
Ф12-60mm
|
ФM3-18
|
15000N
|
200mm
|
0-580r/min
|
|
MW-28RE
|
|
1850W
|
Ф3-28mm
|
Ф12-60mm
|
ФM3-20
|
16000N
|
200mm
|
0-500r/min
|
|
MW-28TC
|
|
1900W
|
Ф3-28mm
|
Ф12-60mm
|
ФM3-20
|
16000N
|
200mm
|
0-500r/min
|
|
MW-32B
|
|
2600W
|
Ф3-32mm
|
Ф12-100mm
|
ФM3-28
|
19000N
|
200mm
|
100-600r/min
|
|
MW-80T
|
|
2350W
|
Ф3-32mm
|
Ф12-80mm
|
|
18000N
|
200mm
|
700r/min
|
|
MW-100T
|
|
2650W
|
Ф3-32mm
|
Ф12-100mm
|
|
18000N
|
200mm
|
650r/min
|
|
MW-50G
|
|
1850W
|
|
Ф12-50mm
|
|
15500N
|
61mm
|
250-650r/min
|
|
MW-28RT
|
|
1800W
|
Ф3-28mm
|
Ф12-50mm
|
|
16500N
|
200mm
|
650r/min
|
|
MW-60RT
|
|
1880W
|
Ф3-28mm
|
Ф12-50mm
|
|
16500N
|
200mm
|
650r/min
|
|
MW-N35C
|
|
1300W
|
Ф3-16mm
|
Ф12-40mm
|
|
13000N
|
300mm
|
750r/min
|
|
MW-N50C
|
|
1700W
|
Ф3-28mm
|
Ф12-50mm
|
|
14000N
|
300mm
|
0-650r/min
|
