Quick Details
-
Keywords:
-
HP-25 (25mm) Plastic Pipe Circle Hole End Caps
-
Material:
-
UL approved Nylon PA66
-
Material Certificate:
-
UL,ROHS
-
Color:
-
black,white, other color can be customized
-
Fire Protection Grade:
-
94-V2
-
MOQ:
-
1 Bag (200PCS/BAG)
-
Sample:
-
Free
-
OEM:
-
Support
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OUORO
-
Model Number:
-
HP-25
-
Keywords:
-
HP-25 (25mm) Plastic Pipe Circle Hole End Caps
-
Material:
-
UL approved Nylon PA66
-
Material Certificate:
-
UL,ROHS
-
Color:
-
black,white, other color can be customized
-
Fire Protection Grade:
-
94-V2
-
MOQ:
-
1 Bag (200PCS/BAG)
-
Sample:
-
Free
-
OEM:
-
Support

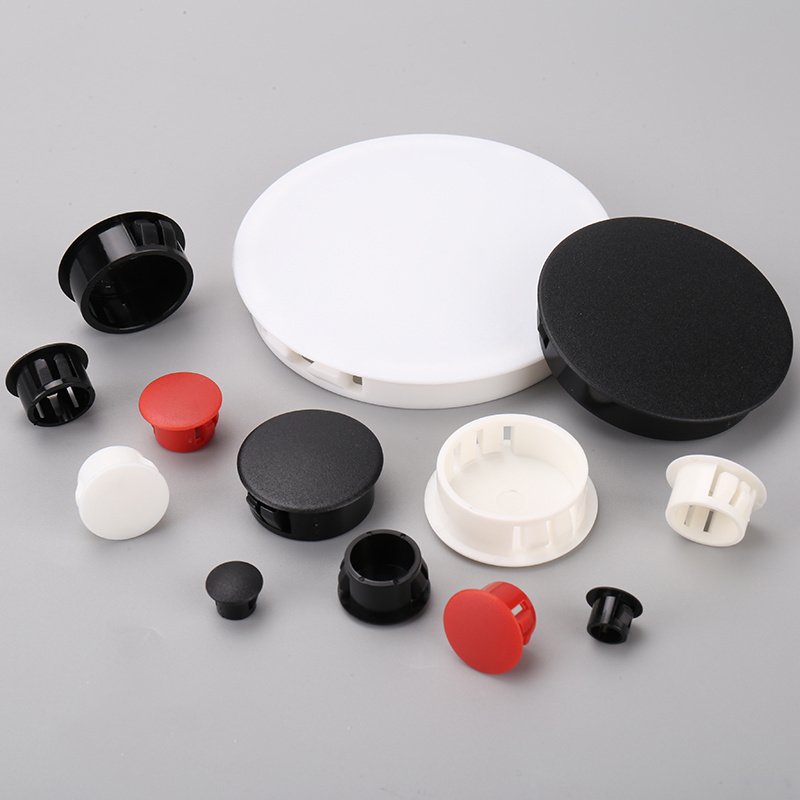

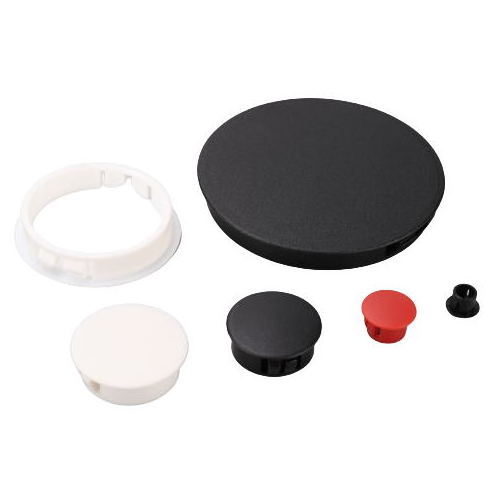

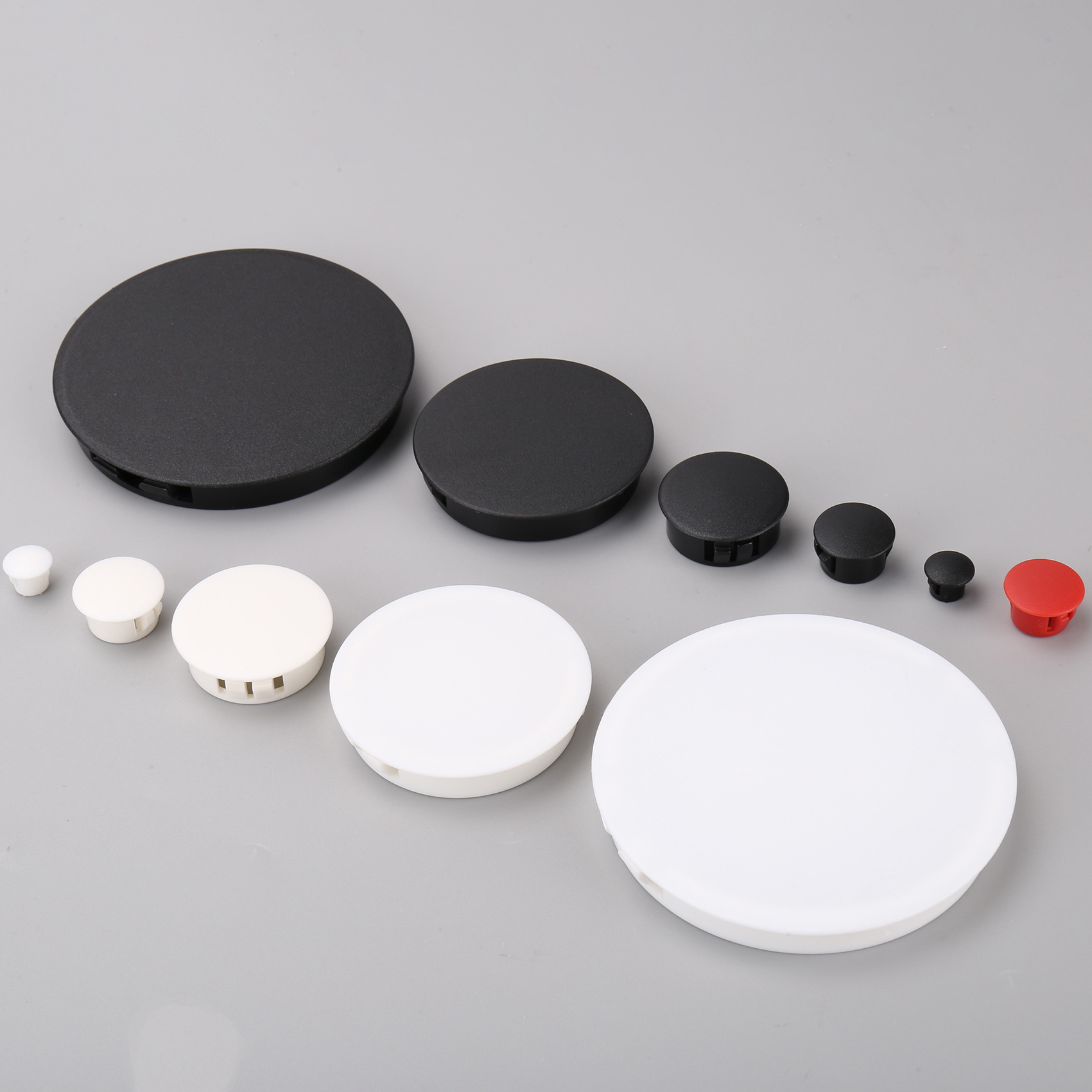

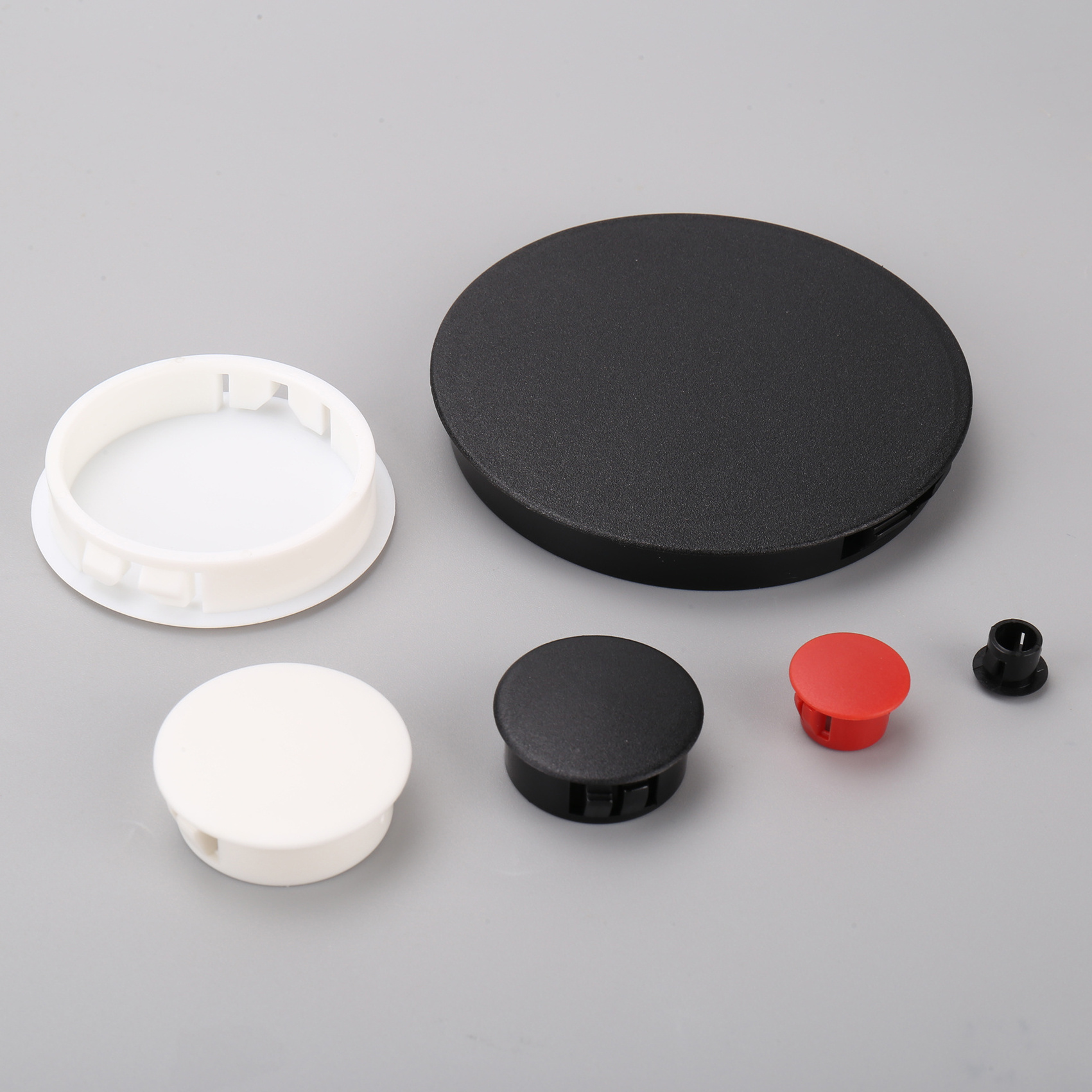

OUORO HP-25 (25mm) Nylon Plastic hole plug Round Snap Panel Cover blanking plugs plastic
Material: UL approved Nylon 66, 94V-2
Color: Black,white, other color can be customized
HOLE PLUG close your unneeded holes with fingertip pressure at low cost and assure good apperance.
Available in application for chassis thickness Under 3 mm.
| Hole Plug | ||||||
| Unit: mm | ||||||
| Item No. |
Mounting Hole
A |
Borehole range | B | C | Packing | |
| mm | inch | |||||
| HP-5 | 4.5 | 1/5" | 4.6~5 | 6.7 | 5.7 | 1000 pcs / Bag |
| HP-6 | 5.7 | 1 /4" | 5.9~6.2 | 7.8 | 6.7 | 1000 pcs / Bag |
| HP-8 | 7.8 | 5/16" | 7.9~8.1 | 10.5 | 8.1 | 500 pcs / Bag |
| HP-10 | 9.5 | 3/8" | 9.7~11.1 | 13.3 | 10.7 | 500 pcs / Bag |
| HP-13 | 12.5 | 1/2" | 12.8~13.5 | 17 | 10.5 | 500 pcs / Bag |
| HP-16 | 15.7 | 5/8" | 15.8~17 | 20 | 10.9 | 200 pcs / Bag |
| HP-19 | 18.7 | 3/4" | 18.9~20 | 23.3 | 10.7 | 200 pcs / Bag |
| HP-22 | 21.3 | 7/8" | 21.4~22.6 | 25.6 | 11.7 | 200 pcs / Bag |
| HP-25 | 24.5 | 1" | 24.7~25.7 | 28.5 | 12 | 200 pcs / Bag |
| HP-30 | 29.6 | 1-3/16" | 29.7~31 | 34.7 | 11.8 | 100 pcs / Bag |
| HP-38 | 37.6 | 1-1/2" | 37.7~38.3 | 42 | 10.7 | 100 pcs / Bag |
| HP-45 | 43.6 | 1-3/4" | 43.7~45.5 | 49.7 | 11 | 100 pcs / Bag |
| HP-50 | 48.9 | 2" | 49~50.5 | 55 | 11 | 100 pcs / Bag |
1.Q:Do you have your own factory?
A:Yes, H-V-S Company is manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.
2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?
A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.
3 .Q:How can I visit your factory?
A:Before visit , please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.
4 .Q:Do you provide free sample?
A:Yes, we always do, but first time you'd better pay the delivery charge.
5 .Q:Could you print our company logo on nameplate and package?
A:Yes,we can do that.
6 .Q:Do you accept custom design on size?
A:Yes, if the size is reasonable.
7 .Q:What's your delivery time?
A: H-V-S is factory, so we can efficiently control the production time.
