Used a high-power 5.5 kw main shaft for stone, with a maximum speed of 24,000 rpm.The four bearing rotors work at the same
time,with large torque, strong power, dust proof and waterproof, and long service life.Hard and soft stone and other materials can
be handled in one machine.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
0.7-5m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GRANDIO CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Stone CNC Router
-
Working size:
-
1300*2500mm /900*1500mm
-
Spindle:
-
5.5kw 7.5kw Water cooling spindle
-
Working table:
-
PVC Aluminum working table /Vacuum
-
Application:
-
Stone marble quartz acrylic tombstone
-
Transmission:
-
Rack/ball screw
-
Control system:
-
Nc-stuido /Mach3 /DSP
-
Guide rail:
-
Taiwan HIWIN Square Rail
-
Table structure:
-
Heavy duty machine body
-
Driver:
-
Servo motor /Stepper motors
Quick Details
-
Type:
-
Stone Engraving Machine
-
Power:
-
10 kW
-
Cutting thickness (max):
-
250mm
-
Production Capacity:
-
0.7-5m/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GRANDIO CNC
-
Voltage:
-
380/220v
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight:
-
2000 kg
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Stone CNC Router
-
Working size:
-
1300*2500mm /900*1500mm
-
Spindle:
-
5.5kw 7.5kw Water cooling spindle
-
Working table:
-
PVC Aluminum working table /Vacuum
-
Application:
-
Stone marble quartz acrylic tombstone
-
Transmission:
-
Rack/ball screw
-
Control system:
-
Nc-stuido /Mach3 /DSP
-
Guide rail:
-
Taiwan HIWIN Square Rail
-
Table structure:
-
Heavy duty machine body
-
Driver:
-
Servo motor /Stepper motors
Product Description
Stone cnc machine is used for granite, marble, jade, sapphire, artificial stone, tombstones, milestones and other types of stone processing, the stone cutting machine can achieve various processing functions, 3D relief, and line carving, bevel cutting, drilling 2D processing. Such as lettering (pattern), relief, image carving, cutting, etc. Simple operation, low energy consumption, low noise, high efficiency and high precision. Widely used in inscriptions, stone carving, construction, decoration, kitchen and bathroom, furniture, signs, handicrafts and other industries.
Details Show
The welding of thick-walled square steel is strengthened, the bottom beam is laid flat and reinforced, and the lathe bed is designed in U-shaped mechanics.The whole lathe bed gantry has strong stability. good rigidity and high strength,the chassis is stable, and the bearing capacity can reach 2 tons.
Aluminum profile + PVC table
Stainless steel sink，applicable for more range used
Large aluminum table, strong load-bearing, stable and durable, PVC table anti-skid protection aluminum table
There are inverter and driver system in control box.Integrated circuit driver is used to ensure stable and durable operation
Rotary diameter can be decided by your requirement, for example, 20cm, 30cm, 40cm, etc
DSP control system
It is easy to operate and more convenient to use than computer controlling Mach3 control system, NC Studio PC online is optional,
NK105 controller for cnc router, USB connect,can be use without computer.
NK105 controller for cnc router, USB connect,can be use without computer.
|
Model
|

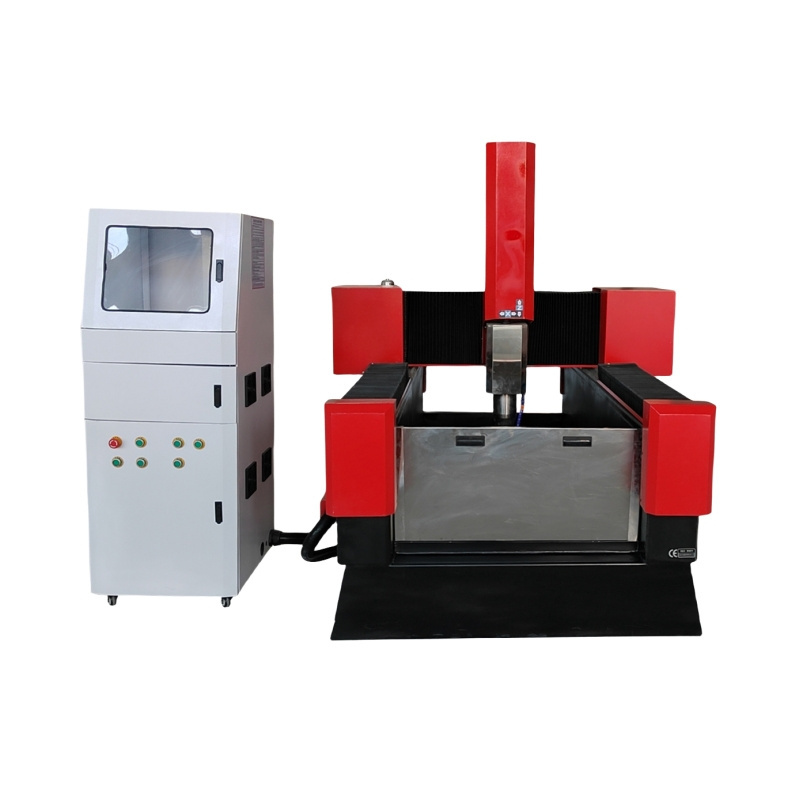

GD-7014 Stone carving CNC router machine
|
|
X/Y/Z axis working area
|
700*1400mm (Customized)
|
|
Max traveling speed
|
15m/min
|
|
Max working speed
|
30m/min
|
|
Max feed height
|
300mm
|
|
Resolution
|
0.005mm
|
|
Reposition accuracy
|
0.05mm
|
|
Spindle /tool cooling
|
100W-220V cooling pump (circulation water)
|
|
Spindle power
|
5.5kw /6.5kw /7.5kw
|
|
Spindle Speed
|
0-24000rmp/min
|
|
Working Mode
|
Stepper motor
|
|
Driving system
|
Ball screw
|
|
Control system
|
DSP handle
|
|
Operating System
|
Windows98/2000/XP
|
|
Carving command
|
G code
|
|
Machine Power
|
7KW
|
|
Voltage
|
AC380V/50Hz
|
|
Machine Weight
|
1000kgs
|
|
Machine size
|
1850*2500*1700mm
|
Sample
Stone Carving CNC Router Machine Application:
Stone lettering, stone relief, stone round carving, stone positive carving, stone inverted carving, stone line carving, stone cutting, stone hollow
Application industry:
Stone industry, stone monument processing industry, tombstone processing, artistic relief, advertising industry, decoration industry, ceramic industry
Application materials:
Marble, granite, jade, blue stone, black stone, etc., as well as ceramics, glass, plexiglass, pvc board, aluminum-plastic board, bamboo and wood and other materials.
Stone lettering, stone relief, stone round carving, stone positive carving, stone inverted carving, stone line carving, stone cutting, stone hollow
Application industry:
Stone industry, stone monument processing industry, tombstone processing, artistic relief, advertising industry, decoration industry, ceramic industry
Application materials:
Marble, granite, jade, blue stone, black stone, etc., as well as ceramics, glass, plexiglass, pvc board, aluminum-plastic board, bamboo and wood and other materials.
Good feedback from customers
services
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service
1. Training how to install the machine, training how to use the machine online.
2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.
Packing & Delivery
The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service
.
