Quick Details
-
Input Speed:
-
1500rmp
-
Output Speed:
-
8-20r/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Putuoshan
-
Model Number:
-
ZLYJ
-
Gear box size:
-
112-8 type- 630-20 type
-
Material:
-
Steel or cast Iron
-
Quality Control System:
-
ISO9001
-
Gear accuracy:
-
Less than 6
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
800-100000N.m
-
Rated Power:
-
5.5kw-540kw
-
Input Speed:
-
1500rmp
-
Output Speed:
-
8-20r/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Putuoshan
-
Model Number:
-
ZLYJ
-
Gear box size:
-
112-8 type- 630-20 type
-
Material:
-
Steel or cast Iron
-
Quality Control System:
-
ISO9001
-
Gear accuracy:
-
Less than 6
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical
ZLYJ series speed reducer is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder. The design of product adapts all kinds of norm specified in ZBJ19009-88/ it features that gear and axis parts are made of high strength alloy steel. The gear is processes by carburization, quenching and tooth grinding process. The precision of gear is grade 6 specified in GB10095-88. The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working. The complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.

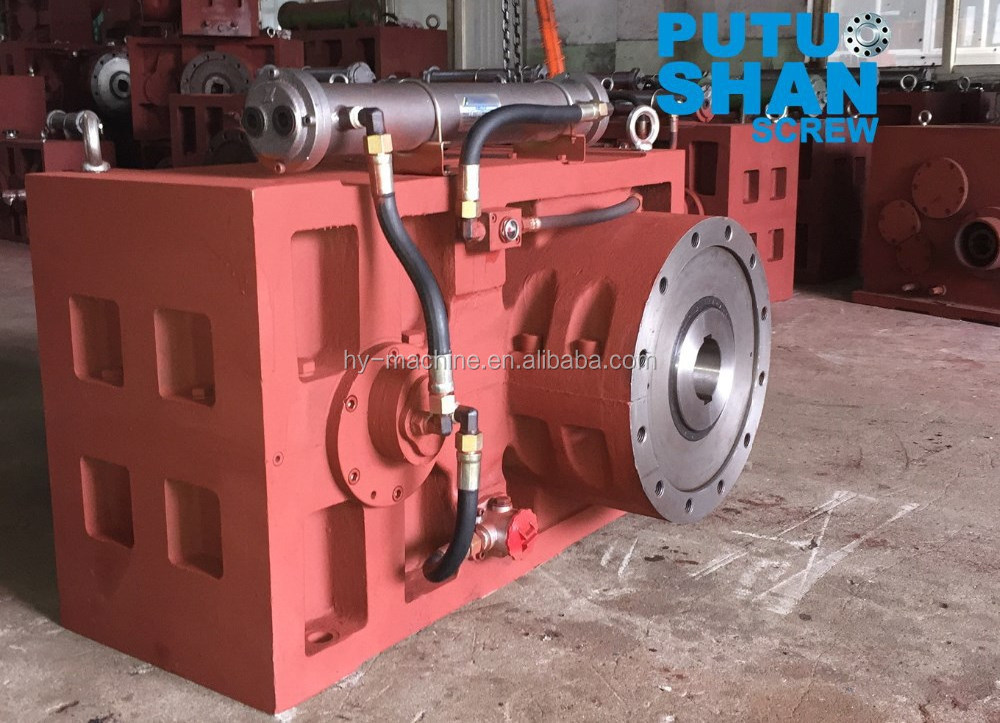

High quality single screw extruder gear box for extruder machines
SINGLE SCREW EXTRUDER GEAR BOX DATA
|
Type |
Size |
kw |
N in | N out |
N.m |
kN |
Screw dia |
L/D |
|
ZLYJ
|
112-8 |
5.5 |
800 |
100 |
525 |
35 |
≤φ35
|
25:1 |
|
133-8 |
8 |
800 |
100 |
764 |
39 |
≤φ50 |
25:1 |
|
|
146-10 |
11 |
1000 |
100 |
1050 |
54 |
≤φ55 |
25:1 |
|
|
173-10 |
18.5 |
900 |
90 |
1962 |
110 |
≤φ65 |
25:1 |
|
|
200-12.5 |
30 |
1000 |
80 |
3581 |
155 |
≤φ75 |
25:1 |
|
|
225-12.5 |
45 |
1000 |
80 |
5371 |
180 |
≤φ90 |
25:1 |
|
|
250-16 |
55 |
1120 |
70 |
7503 |
192 |
≤φ105 |
25:1 |
|
|
280-16 |
75 |
960 |
60 |
7643 |
258 |
≤φ110 |
25:1 |
|
|
315-16 |
85 |
960 |
60 |
13528 |
287 |
≤φ120 |
25:1 |
|
|
330-16 |
110 |
960 |
60 |
17507 |
360 |
≤φ135 |
25:1 |
|
|
375-16 |
132 |
960 |
60 |
21008 |
390 |
≤φ150 |
25:1 |
|
|
395-16 |
185 |
960 |
60 |
29442 |
400 |
≤φ160 |
25:1 |
|
|
420-16 |
160 /220 |
960 |
60 |
31831 |
430 |
≤φ160-φ170 |
25:1 |
|
|
450-20 |
213 |
1000 |
50 |
40640 |
500 |
≤φ180 |
25:1 |
|
|
560-20 |
440 |
1000 |
50 |
84034 |
700 |
≤φ200 |
25:1 |
|
|
630-20 |
540 |
1000 |
50 |
103132 |
770 |
≤φ250 |
25:1 |
