Advantages:
1, Fork fit for double-deck pallet.
2, Permanent magent drive motor, compact structure, easy maintenance.
3, Battery open design, easy to replace.
4, Built-in charge is standard.
5, Emergency reversing device and emergency brake switch.
6, Small body, suitable for narrow space.
7, Sealed battery free of maintenance, safe operation and no popution.
8, Low noice, low energy consumtion, every day only 2 kw/h.
9, Metal shell-high strength, safer.
- Product Details
- {{item.text}}
Quick Details
-
Fork Length:
-
1150/1200mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
1707x697x1181mm
-
Weight (KG):
-
268 kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HELI
-
Fork Length:
-
1150/1200mm
-
Fork Width:
-
160mm
-
Overall Dimensions:
-
1707x697x1181mm
-
Weight (KG):
-
268 kg
Products Description
|
Feature
|
Unit
|
|
|
|
1
|
Model
|
|
CBD15
|
|
2
|
Configuration No.
|
KG
|
190
|
|
3
|
Load capacity
|
kg
|
1500
|
|
4
|
Load center
|
mm
|
600
|
|
5
|
Wheel base
|
mm
|
1166
|
|
6
|
Operating type
|
|
Walkie
|
|
|
Wheels
|
|
|
|
7
|
Wheels type
|
|
（PU）
|
|
8
|
Driving wheel size
|
mm
|
￠145X54
|
|
9
|
Bearing wheel size
|
mm
|
￠80X30
|
|
10
|
Balance wheel size
|
mm
|
￠80X70
|
|
11
|
Wheel quantity
Driving wheel/Balance wheel /Bearing wheel |
mm
|
1/2/4
|
|
|
Dimension
|
|
|
|
12
|
Min.fork lowered height
|
mm
|
85
|
|
13
|
Max.fork lifting height
|
mm
|
205
|
|
14
|
Max.lifting height
|
mm
|
120
|
|
15
|
Outside width between forks
|
mm
|
560//685
|
|
16
|
Inside width between forks
|
|
240/365
|
|
17
|
Fork length
|
mm
|
900/1150/1200
|
|
18
|
Fork width
|
mm
|
160
|
|
19
|
Fork thickness
|
mm
|
73
|
|
0
|
Overall length
|
mm
|
1450/1700
|
|
1
|
Overall width
|
mm
|
560
|
|
22
|
Overall height(With handle) |
mm
|
1160
|
|
3
|
Overall height(Without handle)
|
mm
|
700
|
|
24
|
Min.Turning radius
|
mm
|
1200/1450/1500
|
|
25
|
（pallet 800×1200，1200 ）
Min.Aisle width for pallets 800×1200 |
mm
|
1800
|
|
26
|
（pallet 1000×1200，1200） Min.Aisle width for pallets 1000×1200 |
mm
|
1830
|
|
|
Performance
|
|
|
|
27
|
Travel speed,laden/unladen
|
km/h
|
4.5/5.0
|
|
28
|
Lift speed,laden/unladen |
mm/s
|
25/40
|
|
29
|
Lowering speed,laden/unladen |
mm/s
|
80/55
|
|
30
|
Gradeability,laden/unladen |
%
|
5/7
|
|
|
Electrical configuration
|
|
|
|
31
|
Drive motor /Lift motor
|
KW
|
AC0.60/AC0.80
|
|
32
|
Battery voltage
|
V
|
72
|
|
33
|
Battery capacity
|
Ah
|
8
|
|
34
|
Brake
|
|
Electromagnetic / Regenerative
|
|
35
|
Controller
|
|
HELI
|
|
37
|
Weight
|
|
|
|
36
|
Battery weight
|
kg
|
5.2
|
|
37
|
Service weight with battery
|
kg
|
118
|
Feature At Glance

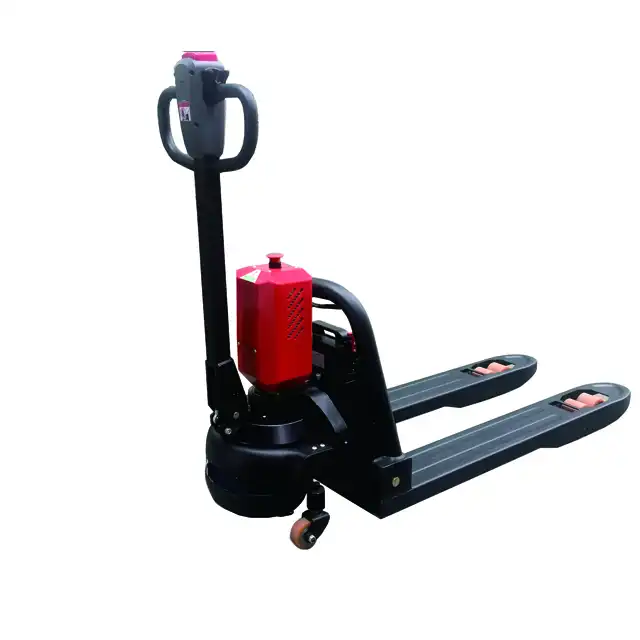

Lithium battery pallet truck CE certificate confirmed 1500kg loading capacity electric pallet truck CBD15
