Quick Details
-
Use:
-
Shoes, Home Textile, Blankets & Throws, Car, Blanket, Bag, Bags,Purses & Totes, Accessories, Industry, Costumes, Hospital, Felt, Outdoor, Luggage
-
Weight:
-
100~600gsm
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
JY
-
Brand name:
-
JY
-
Weave:
-
Plain/Twill/Unidirection
-
width:
-
1m or customized
-
Color:
-
Black/Blue/Red/Brown/Gold/Silver etc
-
service:
-
customized length and width
-
Application Area:
-
Variety
-
Length:
-
100m or customized
-
Wrap:
-
1k/3k/6k/12k
Quick Details
-
Pattern:
-
Abstract & Geometric
-
Material:
-
100% Carbon Fiber or hybrid
-
Feature:
-
Double Faced, Abrasion-Resistant, Breathable, Chemical-Resistant, Heat-Insulation, Moisture-Absorbent, Radiation-Resistant, stain Resistant, Wrinkle Resistant
-
Use:
-
Shoes, Home Textile, Blankets & Throws, Car, Blanket, Bag, Bags,Purses & Totes, Accessories, Industry, Costumes, Hospital, Felt, Outdoor, Luggage
-
Weight:
-
100~600gsm
-
Place of Origin:
-
Jiangsu, China, Jiangsu,China
-
Brand Name:
-
JY
-
Brand name:
-
JY
-
Weave:
-
Plain/Twill/Unidirection
-
width:
-
1m or customized
-
Color:
-
Black/Blue/Red/Brown/Gold/Silver etc
-
service:
-
customized length and width
-
Application Area:
-
Variety
-
Length:
-
100m or customized
-
Wrap:
-
1k/3k/6k/12k
Products Description

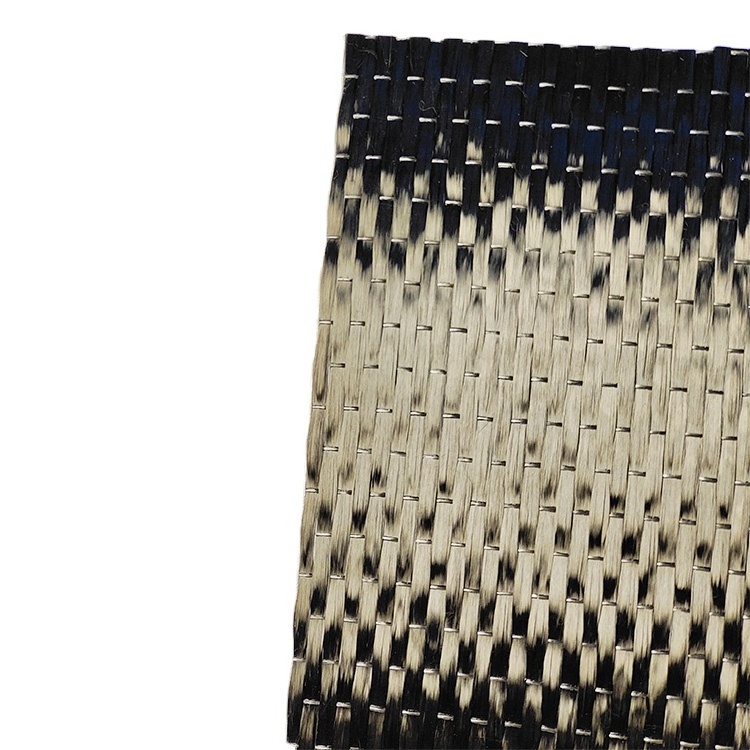

Carbon fiber unidirectional fabric is one UD carbon fiber reinforcement product that can be provided in two thicknesses: 0.111mm(200g) and 0.167mm (300g). The width can be adjusted according to customer needs. This material is mainly used for the tensile,shear, and seismic reinforcement of structural components. When used together with carbon fiber infiltration adhesive, it can form a complete and high-performance carbon fiber unidirectional sheet reinforcement system. It is suitable for handling reinforcement projects such as increased building loads, changes in engineering functions, material aging, concrete strength grades below design values, structural crack treatment, repair of components in harsh environments, and protection, as well as component reinforcement in many fields such as artificial satellites, airplanes, rockets, sports products, and industrial products.
|
Test Item
|
|
300g Ⅰ Grade
|
|
200g Ⅰ Grade
|
|
300g Ⅱ Grade
|
|
200g Ⅱ Grade
|
|
|||||
|
Density(g/m2)
|
|
300
|
|
200
|
|
300
|
|
200
|
|
|||||
|
Theoretical Thick(mm)
|
|
0.167
|
|
0.111
|
|
0.167
|
|
0.111
|
|
|||||
|
Tensile Strength(MPa)
|
Standard
|
≥3400
|
|
≥3400
|
|
≥3000
|
|
≥3000
|
|
|||||
|
|
Test
|
3850
|
|
3610
|
|
3200
|
|
3125
|
|
|||||
|
Elastic Modulus(GPa)
|
Standard
|
≥2.4*10⁵
|
|
≥2.4*10⁵
|
|
≥2.1*10⁵
|
|
≥2.1*10⁵
|
|
|||||
|
|
Test
|
2.45*10⁵
|
|
2.41*10⁵
|
|
2.1*10⁵
|
|
2.1*10⁵
|
|
|||||
|
Elongation(%)
|
Standard
|
≥1.7
|
|
≥1.7
|
|
≥1.5
|
|
≥1.5
|
|
|||||
|
|
Test
|
1.74
|
|
1.7
|
|
1.7
|
|
1.7
|
|
|||||
Features
* High strength and light weight
* Flexible and easy to operate
* Smooth surface and uniform force distribution
* High temperature and corrosion resistance
* Wear resistance and impact resistance
* Flexible and easy to operate
* Smooth surface and uniform force distribution
* High temperature and corrosion resistance
* Wear resistance and impact resistance
