Quick Details
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G24FG4
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Industrial Ethernet Switch
-
Warranty:
-
5 Years
-
Device Type:
-
Switch - 24 Ports - Managed
-
Applications:
-
CCTV Security System
-
Type:
-
LAN Access Switch
-
Power Supply:
-
AC DC Power
-
MOQ:
-
1 Pcs
-
Package:
-
Carton
-
Color:
-
Black
-
Connector Type:
-
RJ-45
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56G
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G24FG4
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Industrial Ethernet Switch
-
Warranty:
-
5 Years
-
Device Type:
-
Switch - 24 Ports - Managed
-
Applications:
-
CCTV Security System
-
Type:
-
LAN Access Switch
-
Power Supply:
-
AC DC Power
-
MOQ:
-
1 Pcs
-
Package:
-
Carton
-
Color:
-
Black
-
Connector Type:
-
RJ-45
Product Description

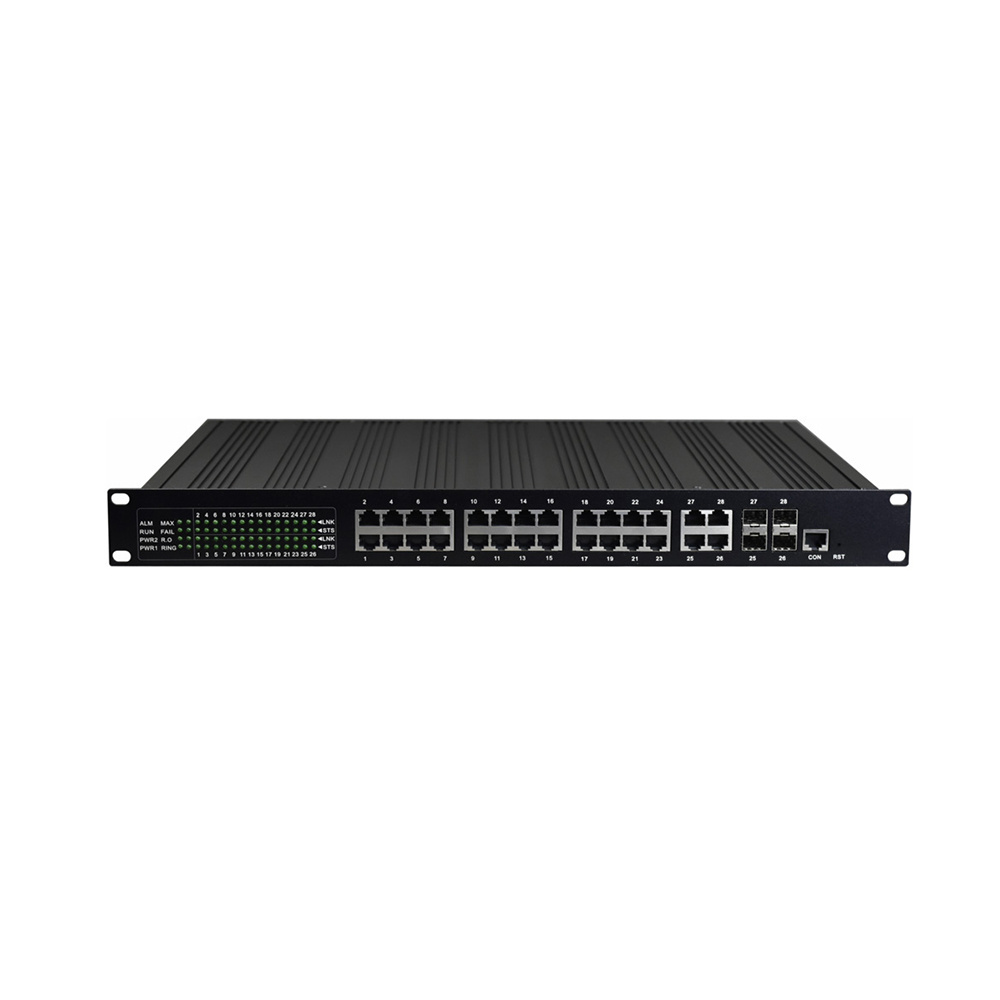

The industrial-grade 24+4 gigabit switch is a new generation of multi-service access network management gigabit redundant ethernet switch. It has the characteristics of high integration, rich functions, simplicity, and convenience. It has 24 gigabit electrical ports and 4 gigabit optical ports, especially suitable for occasions with large data streams such as video transmission.
It supports rich Layer 2 management protocols required for industrial switch applications, supports ITU G.8032 redundant ring network protocol, and has a self-healing time of <20ms, ensuring the real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-seismic and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast solution for the industrial Internet of Things.
Specification
|
Model
|
FCM-G24FG4
|
|
Function
|
Managed 24*Gigabit Ethernet + 4* Gigabit Ethernet/*Gigabit SFP Combo Network Switch, built-in power supply
|
|
Ports
|
24*gigabit ethernet ports, 4*gigabit optical ports/4*gigabit ethernet ports, 1 Console port
|
|
Power
|
AC220V or DC-48V (optional), Support redundant power backup
|
|
Dimension
|
(L×W×H) 485*300*45mm rack mount type
|
|
Weight
|
3.6Kg/piece
|
Features
● All-aluminum alloy 19-inch shell with heat dissipation pattern, good heat dissipation characteristics, gold oxide anodic oxidation process, IP40 protection level, designed for harsh and harsh industrial environments;
● It can support 24 Gigabit ethernet ports and 4 Gigabit optical COMBO interfaces;
● Each ethernet port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms;
● Support port bandwidth limitation, port flow control, broadcast storm suppression;
● Support Web, CLI, Telnet management functions;
● Power down alarm, loop alarm;
● Provide Console debugging;
● Can support POE (POE+) equipment;
● Management functions:
● Support CLI, WEB, SNMP management methods
● Support port speed limit based on ingress/egress, support half-duplex back pressure flow control and 802.3X full-duplex flow control
● Support storm suppression based on broadcast, multicast and unknown unicast
● Support IEEE 802.1Q 4K VLAN, support QINQ
● Support port mirroring, support Syslog, support Ping command, etc.
● Support COS, DSCP, 8 queues, support WRR, SP, WFQ scheduling mode, policy QOS
● Support port traffic statistics, online upgrade
● Support STP/RSTP, MSTP, support EAPS, ERPS
● Support IGMP Snooping V1/V2/V3, support GMRP
● Support manual aggregation, support static/dynamic LACP protocol
● Support one relay alarm, support RMON management, TRAP alarm
● Support DHCP Snooping, Option 82, support 802.1X
● Support user hierarchical management, support ACL access control list
● Support DDOS, support port-based MAC filtering/binding
● Ethernet interface with three-level lightning protection, radar protection to GB/T17626.5 (IEC61000-4-5) short-circuit current wave 10/700μs, open-circuit peak output voltage 6KV standard;
● A variety of power supply options: AC220V, DC-48V/DC+24V/ DC+12V, etc.; support AC+DC; AC+AC; DC+DC and other dual power backup
Parameters
|
Supported Protocols
|
IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w,
IEEE802.1ax, IEEE802.1ak |
|
Maximum Frame Length
|
10K
|
|
Ports
|
24*10/100/1000M RJ45 port, 4*10/100/1000M Ethernet and SFP combo port
|
|
Network Medium
|
1000Base-LX: Using long wavelength laser (1310nm) to cross multi-mode and single-mode fiber, the maximum transmission distance of
multi-mode fiber is 550m and single-mode fiber is 10-24km. |
|
|
1000Base-SX: The maximum transmission distance of 62.5μm multi-mode fiber is 275 m, and 50μm multi-mode fiber is 550m.
|
|
|
10Base-T: UTP of Cat3 or Cat3+; (Max transmission distance 200m)
|
|
|
100Base-TX: UTP of Cat5 or Cat5+; (Max transmission distance 100m)
|
|
|
1000Base-T: CAT-5E UTP or Cat6 UTP; (Max transmission distance 100m)
|
|
VLAN Address Capacity
|
4K
|
|
MAC Address Capacity
|
8K
|
|
Cache
|
4Mbits
|
|
Backplane Bandwidth
|
56Gbit
|
|
Forwarding Rate
|
10Mbps: 14880pps
|
|
|
100Mbps: 148800pps
|
|
|
1000Mbps: 1488000pps
|
|
Working Environment
|
Storage temperature: -20℃～70℃; Storage humidity: 5％～90％ Non condensing
|
|
|
working temperature: -40℃～85℃; Working humidity: 10％～90％ Non condensing
|
|
Power
|
Input: 90-264VAC, 50-60HZ
|
|
Consumption
|
≤30W
|
