Quick Details
-
Usage:
-
cotton,wool,man-made fiber
-
Scope of application:
-
spinning mill
-
Color:
-
white and blue
-
Spindle number:
-
480
-
Drafting system:
-
Three roll double-short apron drafting system
-
Drafting multiple:
-
4.2-12
-
Density for yarn(Tex):
-
200-1250
-
Max mechanical speed(r/min):
-
1800
-
Control type:
-
Computerized control
-
Certification:
-
ISO9001 CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
roving frame machine
-
Usage:
-
cotton,wool,man-made fiber
-
Scope of application:
-
spinning mill
-
Color:
-
white and blue
-
Spindle number:
-
480
-
Drafting system:
-
Three roll double-short apron drafting system
-
Drafting multiple:
-
4.2-12
-
Density for yarn(Tex):
-
200-1250
-
Max mechanical speed(r/min):
-
1800
-
Control type:
-
Computerized control
-
Certification:
-
ISO9001 CE
Application:
This machine is suitable for processing of cotton,synthetic fibers or their blends. It has the advantages of good quality of yarn forming, high degree of automation, easily operation, conveniently to administration.
Main specifications:
|
Spindle gauge(mm) |
70 |
|
Number of spindle |
480 |
|
Ring diameter(mm) |
Ø 35, Ø 38, Ø 40, Ø 42, Ø 45 |
|
Yarn count |
4.9-97.2Tex (6-120Ne) |
|
Twist (t/m) |
300-1600 |
|
Draft ratio |
10-50 |
|
Spindle speed(rpm) |
12000-18000 |
|
Twist direction |
Z or S |
|
Spindle |
Bare blade type |
|
Roving creel |
Ø 128 × 320mm bobbin hangers of four rows in single tier |
|
Main power(kw) |
22/11(380V) |
|
Dead stock dimension |
680 × 640 × 1700 (L × W × H) |
|
End stock dimension |
1300 × 640 × 1768 (L × W × H) |
|
Total height (mm) |
2300 |
|
Total length (mm) |
L=2380+(N/ 2-1)70(mm) N:numbers of spindle |

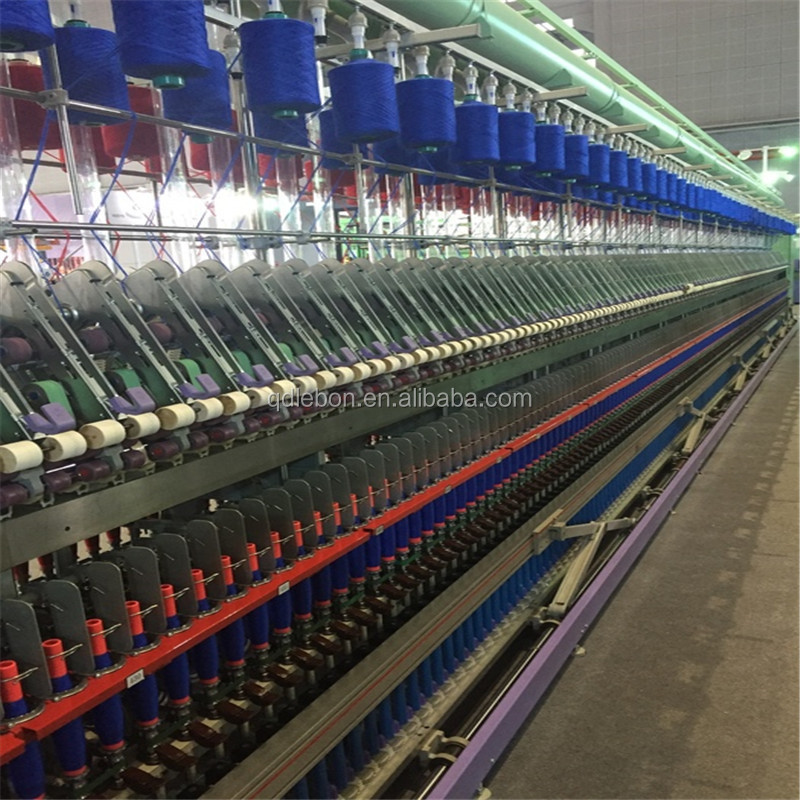

product picture
applicalble raw material
final product
Export standard package
1) wooden case/polywood case
2) plastic foam packing
3) nude packing
1) Engineers available for overseas service according to request.
2) Any machine from our factory has one year guarantee.
3) 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4) manual book in English version with details.
