Quick Details
-
Model Number:
-
L21/8621
-
Dimension:
-
21 INCH
-
Storage:
-
NONE
-
Output Power:
-
1100W
-
Application:
-
compact subwoofer speaker system
-
Voice Coil:
-
5" inside/outside voice coil
-
Usage:
-
Stage speaker
-
Amplification Type:
-
Passive speaker
-
impedance:
-
8ohm
-
Nominal power handling:
-
1100watts
-
Frequency range:
-
30~1500Hz
-
Voice coil diameter:
-
125mm/5inch
-
Magnet type:
-
Ceramic
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hipower
-
Model Number:
-
L21/8621
-
Dimension:
-
21 INCH
-
Storage:
-
NONE
-
Output Power:
-
1100W
-
Application:
-
compact subwoofer speaker system
-
Voice Coil:
-
5" inside/outside voice coil
-
Usage:
-
Stage speaker
-
Amplification Type:
-
Passive speaker
-
impedance:
-
8ohm
-
Nominal power handling:
-
1100watts
-
Frequency range:
-
30~1500Hz
-
Voice coil diameter:
-
125mm/5inch
-
Magnet type:
-
Ceramic

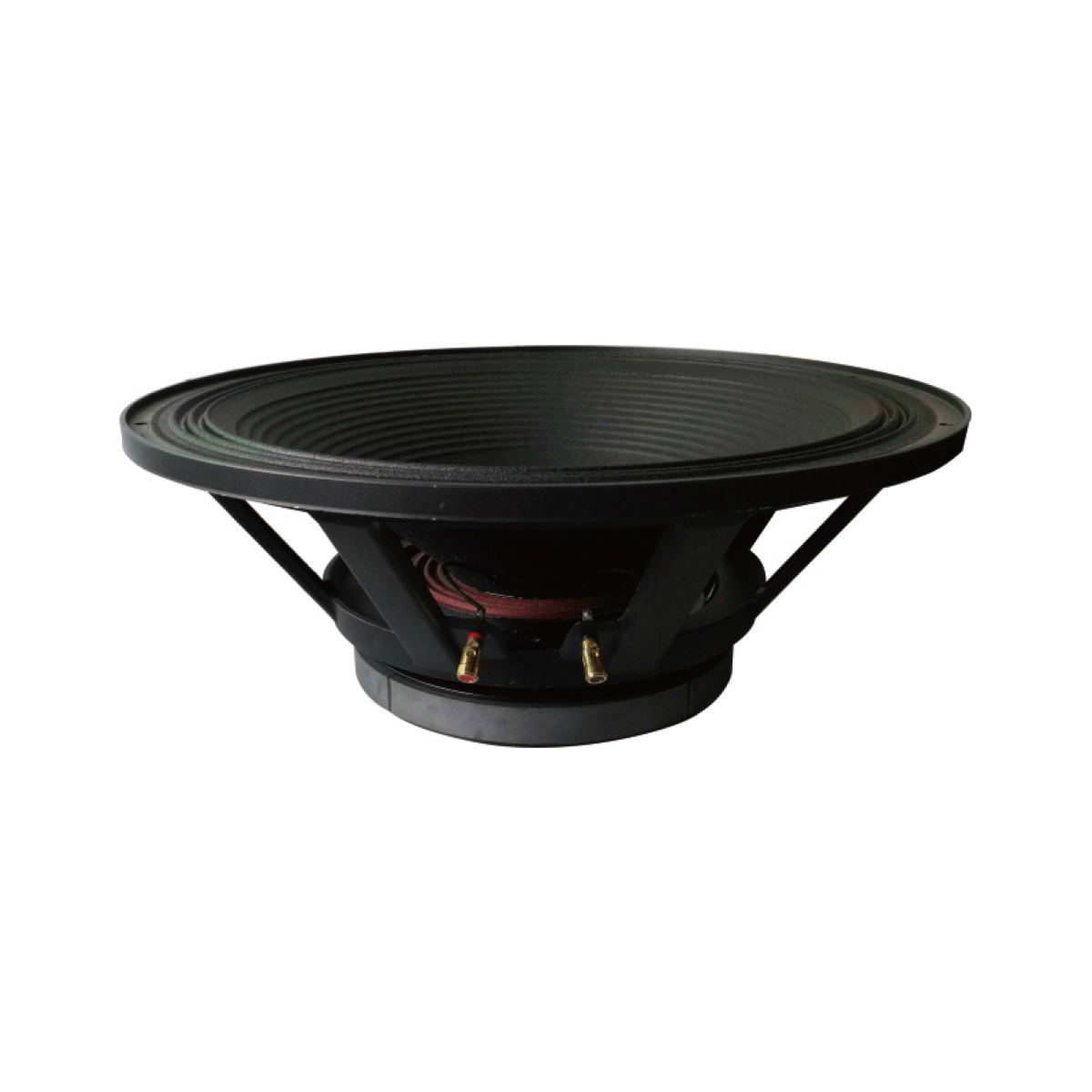

1. Terrific LF Loud Speaker for Subwoofer of compass bass relex
2. Reasonable price for a 21" speakers like this which delivers good bass sound.This model is a new model with unique design and great power.
3.Hipower Audio is a professinal loud speaker factory with experience in the speaker field for 19 years. We make our own tranducers ,HF drivers and empty cabinets.
4. Pro sound, Pa audio , speaker system, speaker enclosure,professional speaker
5. OEM service is available
|
General Specifications |
||
| Nominal Diameter | 530/21 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling 1 | 1100 | Watts |
| Program Power 2 | 2200 | Watts |
| Sensitivity(lw/lm) 3 | 100 | dB |
| Frequency Range 4 | 30-1500 | Hz |
| Minimum Impedance(Zmin) | 7.4 | ohm |
| Voice Coil Diameter | 125/5 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 28 | mm |
| Number of layers | 2(inside/outside) | |
| Magnet gap depth | 12 | mm |
| Surround Shape | Tripple-roll | |
| Basket | CastAluminum | |
| Flux Density | 1.1 | T |
| Magnet Material/Mass | Ceramic | |
| Thiele-Small parameters | |||
| Resonance frequency | Fs | 30.9 | Hz |
| DC resistance | Re | 5.6 | ohm |
| Mechanical factor | Qms | 13.4 | |
| Electrical factor | Qes | 0.25 | |
| Total factor | Qts | 0.24 | |
| Mechanical compliance | Cms | 0.1 | mm/N |
|
Mechanical resistance
of suspension losses |
Rms | 3.68 | mech-ohm |
| Effective Moving Mass | Mms | 256 | gr |
| Half-space efficiency | Eff | 5.18 | % |
| BL Factor | BL | 33.3 | T.m |
| Equivalent Cas air load | Vas | 457 | liters |
| Effective piston area | Sd | 0.178 | m2 |
| Max.linear excursion | Xmax | 12 | mm |
| Voice-coil inductance | LelK | 2.0 | mH |
| Mounting Information | ||
| Overall Diameter | 547 | mm |
| Bolt Circle Diameter | 520 | mm |
| Bolt Hole Diameter | 6.5 | mm |
| Baffle Cutout Diameter | 491 | mm |
| Overall Depth | 220 | mm |
| Net Weight 25Kg | ||
