Quick Details
-
Brand Name:
-
ELEWIND
-
Model Number:
-
T
-
Max. Current:
-
15A
-
Operating Temperature:
-
-20℃~70℃
-
Protection Level:
-
IP40
-
IP level:
-
ip40
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ELEWIND
-
Model Number:
-
T
-
Max. Current:
-
15A
-
Operating Temperature:
-
-20℃~70℃
-
Protection Level:
-
IP40
-
IP level:
-
ip40
Product Description
Brand:ELEWIND

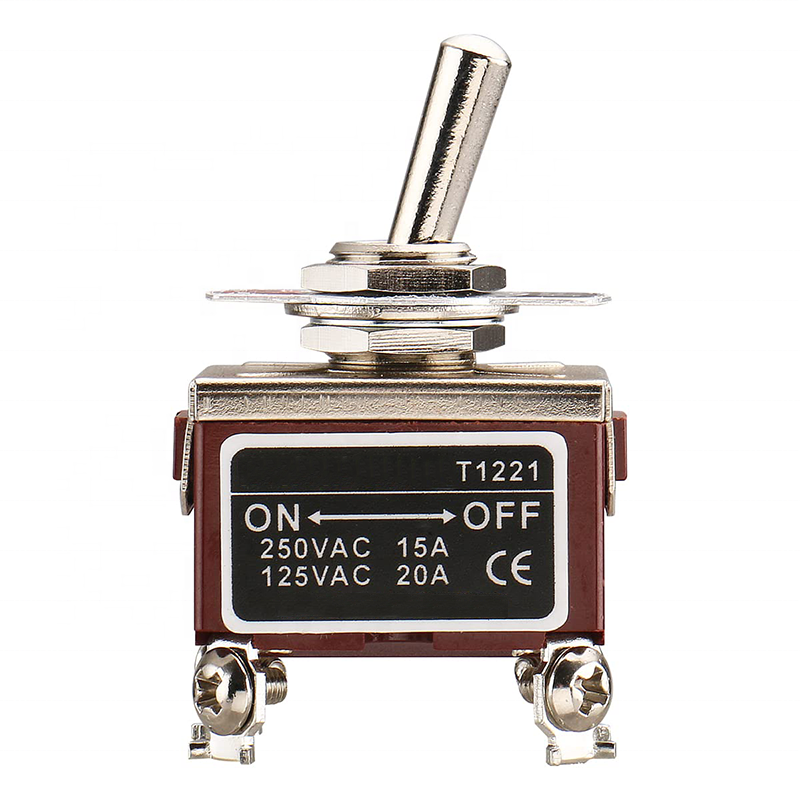

T Toggle Switch
Toggle switches in high-capacity, long lifeand comfortable handtouch
Characteristic:
1.High in rate current specification, the highest on-off capacity
a:Reach 15A 250VAC
b:Current specification:choosing from 3-15A
2.Long life
a:AMechanicallife: 50,000 operations min.
b:Electrical life:25,000 operation min(for the specification of 1 pole circuit)
3.Operation Light
a:When operating handle light weight, flexible,just 1.2Nmtorque, comfortable in touching( for 1 pole circuit)
4. Terminal specification is complete and Installation hole dimension(mm)
5.Has passed the CE certification
6.Oporatien and coutalt form(15A current as example)
T Toggle Switch
Toggle switches in high-capacity, long lifeand comfortable handtouch
Characteristic:
1.High in rate current specification, the highest on-off capacity
a:Reach 15A 250VAC
b:Current specification:choosing from 3-15A
2.Long life
a:AMechanicallife: 50,000 operations min.
b:Electrical life:25,000 operation min(for the specification of 1 pole circuit)
3.Operation Light
a:When operating handle light weight, flexible,just 1.2Nmtorque, comfortable in touching( for 1 pole circuit)
4. Terminal specification is complete and Installation hole dimension(mm)
5.Has passed the CE certification
6.Oporatien and coutalt form(15A current as example)
Brand:ELEWIND
Contact Specification:
Rated work current:15A\10A\6A\3A/125V,250VAC(Resistance load）
Contact resistance(initial value) :under 15MΩ
Contact Material:With the chemical formula silver cadmium oxide contact(can making meet the RoHS directive)
ELectrical perfromance:
Insulation resistance(liitial value):100MΩ(tested by 500VDC insulation ohmer)
Voltage-withstanding:Non-connected terminal: 1，000V 50/60Hz 1 min
No-voltage metal part and terminal: Ground and terminal: 2 , 000V 50/60Hz 1min
Meechanical:
Free state:Under 98m/s2(10G)
Full load state:Under 294m/s2(30G)
Vibration resistance:10-55HZ,1.5mm double amplitude (contact left is under 1ms)
Life:
Mechanical:500,000,000 operations min(on-off frequency 20 operations/min)
Electrical(resistance load):250.000,000 operations min(rate loading 7 operations/min)
Use conditon:
Ambient termperature and humidity:20C~+70°C(without frozen and dew),under 85%(about +5~20C)
Max.on-off frequency:30 operation/min
Contact Specification:
Rated work current:15A\10A\6A\3A/125V,250VAC(Resistance load）
Contact resistance(initial value) :under 15MΩ
Contact Material:With the chemical formula silver cadmium oxide contact(can making meet the RoHS directive)
ELectrical perfromance:
Insulation resistance(liitial value):100MΩ(tested by 500VDC insulation ohmer)
Voltage-withstanding:Non-connected terminal: 1，000V 50/60Hz 1 min
No-voltage metal part and terminal: Ground and terminal: 2 , 000V 50/60Hz 1min
Meechanical:
Free state:Under 98m/s2(10G)
Full load state:Under 294m/s2(30G)
Vibration resistance:10-55HZ,1.5mm double amplitude (contact left is under 1ms)
Life:
Mechanical:500,000,000 operations min(on-off frequency 20 operations/min)
Electrical(resistance load):250.000,000 operations min(rate loading 7 operations/min)
Use conditon:
Ambient termperature and humidity:20C~+70°C(without frozen and dew),under 85%(about +5~20C)
Max.on-off frequency:30 operation/min
Specification
|
item
|
T Micro switch
|
|
Certification
|
CE
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
ELEWIND
|
|
Model Number
|
T
|
|
Max. Current
|
250VAC 15A
|
|
Max. Voltage
|
AC 250V
|
|
Operating Temperature
|
-20℃~70℃
|
|
Protection Level
|
IP40
|
|
product material
|
stainless steel
|
Packing & Delivery
* If you order large quantities of goods
We will have the best way to show the quality of our products and packaging, in order to maximize the safety of your items
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
