Deeleap PAS15 Air hydraulic hand pump with 5L available oil capacity

Deeleap PAS15 Air hydraulic hand pump with 5L available oil capacity

FOB Reference Price: Get Latest Price

≥2 Sets

US $109

≥50 Sets

US $97

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Oil Tank material:: Steel reservoir

Oil Capacity:: 5 L

Air consumption:: 255 L/min

Rated pressure:: 70 Mpa

No-load flow:: 1.16 (L/min)

load flow:: 0.15 (L/min)

Air pressure:: 6-8 Mpa

Oil outlet interface:: 3/8''-18NPTF

Air inlet interface:: 1/4''-18NPTF

Quick Details

Warranty:: 1 years

Place of Origin:: Shandong, China

Model Number:: Pedal driven air hydraulic pump PAS15

Oil Tank material:: Steel reservoir

Oil Capacity:: 5 L

Air consumption:: 255 L/min

Rated pressure:: 70 Mpa

No-load flow:: 1.16 (L/min)

load flow:: 0.15 (L/min)

Air pressure:: 6-8 Mpa

Oil outlet interface:: 3/8''-18NPTF

Air inlet interface:: 1/4''-18NPTF

Product Overview

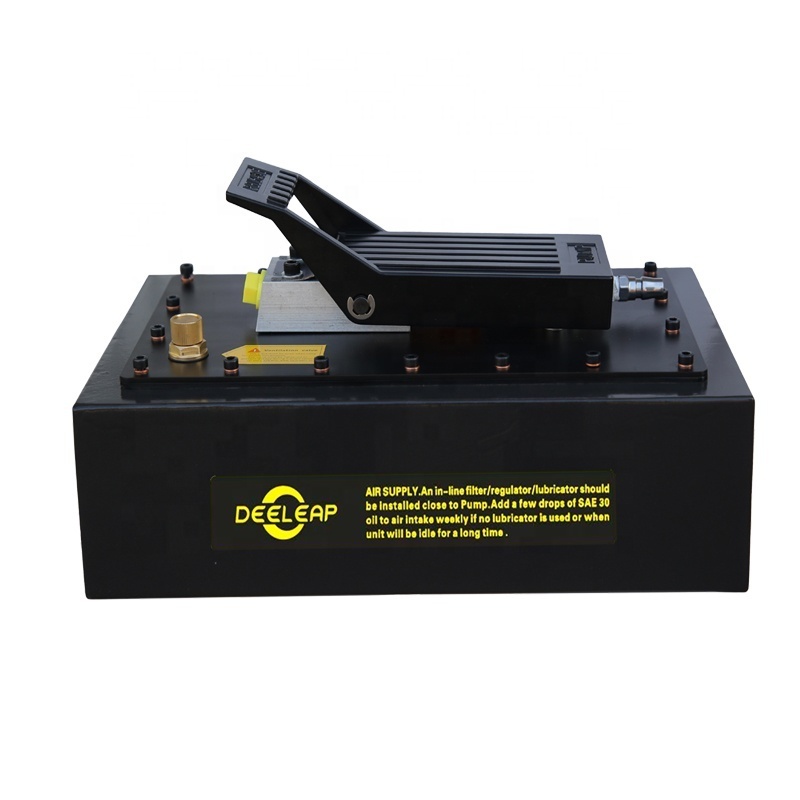

Pedal-driven Pneumatic Hydraulic Pump PAS15

Name: Foot-operated pneumatic hydraulic pump

Function type: single-speed single-acting

Drive mode: pneumatic

Operation mode: pedal or hand operated

Medium: L-HM32#or L-HV32#anti-wear hydraulic oil

Applicable tools: suitable for single-acting cylinders and hydraulic tools

PRODUCT CONFIGURATION

View 1

View 2

View 3

FEATURES AT A GLANCE

1. Driven by compressed air, there is no danger of electric sparks or flames, which can be used in flammable and explosive working
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
5. The rated pressure is 70MPa, and the built-in safety relief valve is used for overload protection.

Right elevation

Left elevation

Front elevation

Features:

1. The threaded hole of the oil outlet is 3/8"NPTF, and the elevation angle is 11°, which is convenient for oil pipe or joint
connection and sealing.
2. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
3. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
4. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.

Air pressure（kg/cm³）	1.7-8.6
Air consumption（L/min）	255
Rated pressure (MPa)	70
Air Intake Port	1/4"-18NPTF
Oil PORT	3/8"-18 NPTF
Oil tank capacity (L)	7.2
Available oil capacity (L)	5.0
Reservoir Type	Steel reservoir
weight (KG)	13.45
