Quick Details
-
Brand Name:
-
Top Brand
-
Certification:
-
CE
Quick Details
-
Type:
-
Grain Processing Equipment
-
Use:
-
Agriculture Drying
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Top Brand
-
Certification:
-
CE

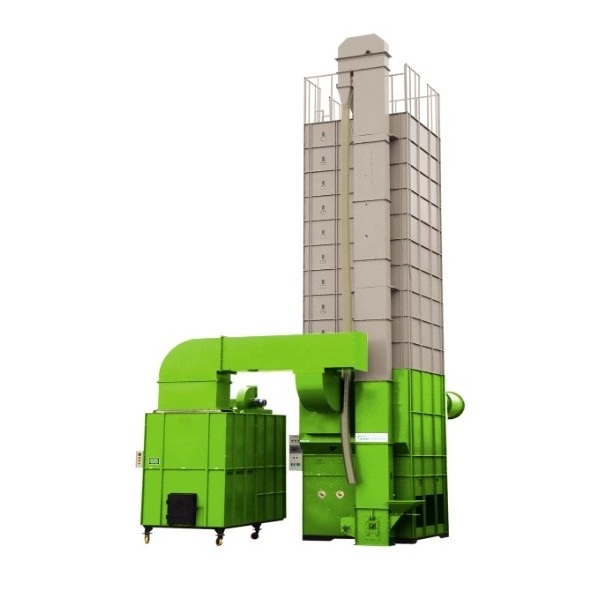

Wheat / Rice / Corn Paddy Dryer Machine SINOMADA 10T/15T DC100/DC150 Grain Dryer
-
Low-speed spiral conveying with low grain damage ;
-
Low damage elevator for high grain drying quality;
-
Thin drying layer with large airflow to ensure high drying efficiency and quality;
-
Equipped with impurities clearance device to reduce the impurity rate;
-
Special wear-resisting material used on the grains flow part for long service life;
-
Special wear-resisting material likes stainless steel used on the collecting unit and low speed can improve wear resistance and reduce grain damage;
-
Automated drying monitoring system for easy operation and management;
-
Optional installation of imported online grain moisture tester for real-time precise moisture test ;
-
Multi heat supply models and fuel models available for drying cost saving.
|
Sales identification number |
DC100 |
DC125 |
DC150 |
||||
|
Model |
5HXG-10C |
BHXG-12.5C |
5HXG-15C |
||||
|
Structural style |
Batch-type circulation |
||||||
|
Total weight |
2840 |
3040 |
3240 |
||||
|
Capacity(kg) |
Unhusked rice(0.56T/m³) |
2500~10000 |
2500~12500 |
2500~15000 |
|||
|
Wheat(0.68T//m³) |
3035~12100 |
3035~15200 |
3035~18200 |
||||
|
Processing amount (kg/h)( moisture reduction rate of 25% to 14.5%) |
≥600 |
≥800 |
≥900 |
||||
|
Overall size |
Overall length |
3577 |
3577 |
3577 |
|||
|
Overall width |
2973 |
2973 |
2973 |
||||
|
Overall height |
9315 |
10405 |
11495 |
||||
|
Heating mode |
Direct/Indirect |
||||||
|
Burner |
Type |
Double fire control , and double throttle automatic adjustment |
|||||
|
Lgnition mode |
High voltage autoigtion |
||||||
|
Fuel type |
Natural gas~liquefied gas |
||||||
|
Fuel consumption(kg/h) |
8Nm³/h < gas consumption < 15Nm³ |
||||||
|
Total power(kW) |
9.44 |
||||||
|
Mating power |
Three-phase 380V/50HZ |
||||||
|
Applicable fuel type |
Bio-particles, rice husk, natural, gas, liquefied gas, diesel, electric power ,etc |
||||||
|
Performances |
Feeding time: rice/wheat(min) |
40~50/35~45 |
50~60/40~50 |
55~65/50~60 |
|||
|
Discharging time: rice/wheat(min) |
50~60/45~55 |
60~70/55~65 |
70~80/65~75 |
||||
|
Hot air temperature(℃) |
30~120 |
||||||
|
Moisture reduction rate(%/h) |
0.5~1.2 |
||||||
|
Drying capacity(t/h*%/h) |
Rice≥6/ wheat≥7 |
||||||
|
Unit heat consumption(KJ/kg. water |
≤5000 |
||||||
|
Safety devices |
Air pressure switch, hot Air temperature sensor, malfunction overheat switch, hot relay, breaker protector, full-load alarm |
||||||
