1 form A, 1 form C contact form
Sealed IP67 and dust cover types available
Outline dimensions: 15.5X23X25.5
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Foocles
-
Place of Origin:
-
Zhejiang, China
-
Car Make:
-
all car
-
Model Number:
-
823
-
Contact form:
-
1A 1C
-
Contact material:
-
silver alloy
-
mechanical life:
-
1000000 times
-
Electric life:
-
100000 times
-
IP grade:
-
IP67
Quick Details
-
OE NO.:
-
3-1393292-8, V23074A1002A403-SI, 8-1393292-4, 6-1393292-2, 6-1419137-4, VFMA-15F41-S01, V23074A1002A403, PC782-1C-12S-R-X, PC782-1C-12S-D-X, 255-5164-ND, 2634-PC782-1C-12S-R-X-ND, 255-2184-ND, Z2001-ND, 2449-A11CSQ24VDC1.2-ND, 2449-A11CSQ12VDC1.2-ND, Z5645-ND, 871-1A-C 24VDC, 871-1A-D M25 12VDC, 7363735020, ACV31212M07MR588567, 3-1393292-8-SI-N, V23074A1002A403-SI
-
Reference NO.:
-
4PB002710001, 4DM004420025, 4DM00336000, 4DB003750057, 4DB003750018, 54201001, BGE201045, 130262100, 0335200028, 4DB00289500, 1R1089, 0335200066, 0335200023, 4DB002478041, 0335200068, 1R1766, 994301, 4DM004420197, 4DM00364004, 54201152
-
Warranty:
-
1 Years
-
Brand Name:
-
Foocles
-
Place of Origin:
-
Zhejiang, China
-
Car Make:
-
all car
-
Model Number:
-
823
-
Contact form:
-
1A 1C
-
Contact material:
-
silver alloy
-
mechanical life:
-
1000000 times
-
Electric life:
-
100000 times
-
IP grade:
-
IP67

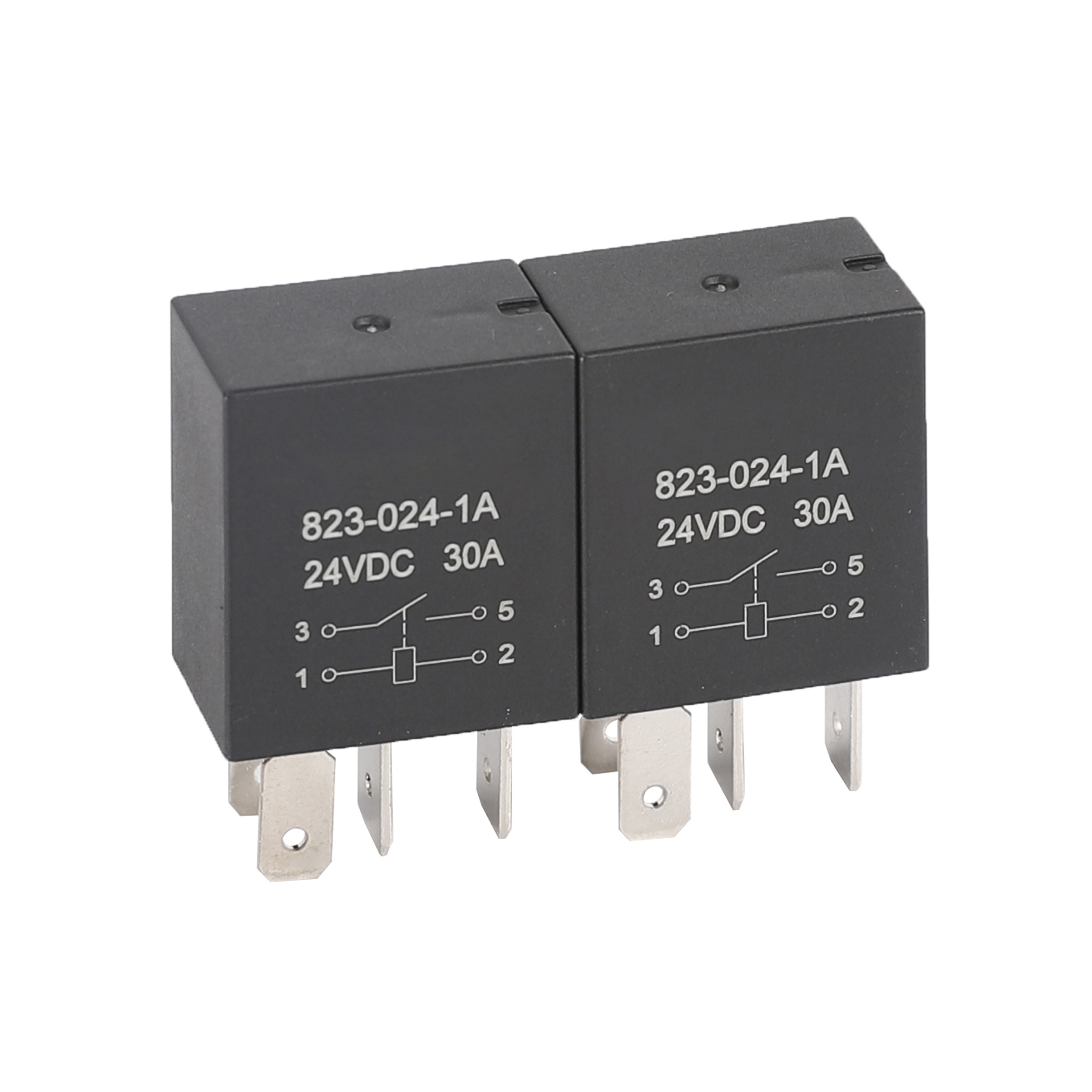

Auto relay
30A switching capability
|
Specification
|
|
|
|
Contact Form
|
1A, 1C
|
|
|
Contact Material
|
AgSno2
|
|
|
Max Operating Current
|
30A
|
|
|
Max Operating Voltage
|
27VDC
|
|
|
Rated Load (Resistive Load)
|
1A: 30A 13.5VDC 15A 27VDC
1C: MO/NC 30A/20A 13.5VDC 20A/10A 27VDC
|
|
|
Insulation Resistance
|
100MΩ
|
|
|
Dielectric Strength (Coil and Contact)
|
500VAC/M
|
|
|
Ambient Temperature
|
-40°C~+85°C
|
|
|
Operate/Release Time
|
10ms/10ms
|
|
|
Mechanical Life
|
1 X10
6
|
|
|
Electrical Life
|
1 X105
|
|
|
Terminal Type
|
Quick-connect type
|
|
|
Coil Ratings
|
|
|
|
|
|
|
|
|
||||||||
|
Standard
|
Normal voltage (VDC)
|
Pick-up voltage (VDC)
|
Drop-out voltage (VDC)
|
Coil resistance (Q±10%)
|
Parallel resistance (Q±5%)
|
Equivalent resistance (Q±10%)
|
Power consumption
|
Max allowable overdrive voltage (VDC)
|
||||||||
|
|
|
|
|
|
|
|
|
20 °C/85 °C
|
||||||||
|
|
12
|
8.4
|
1.2
|
90
|
-
|
-
|
1.6
|
20.2/15.7
|
||||||||
|
|
12
|
8.4
|
1.2
|
80
|
680
|
79.5
|
1.8
|
20.2/15.7
|
||||||||
|
|
24
|
16.8
|
2.4
|
360
|
-
|
-
|
1.6
|
40.5/31.5
|
||||||||
|
|
24
|
16.8
|
2.4
|
320
|
2700
|
317.6
|
1.8
|
40.5/31.5
|
||||||||
