Quick Details
-
Input:
-
4ch 4K HDMI+4ch 1080 HDMI
-
Output:
-
IP Output
-
Application:
-
IPTV Headend Systems
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ON VIF2.4
-
Video encoding:
-
H.264/H.265
-
Resolution:
-
3840*2160/1920x1080/1280x720/1280x1024/1280x960/704x576
-
Nature:
-
Live Streaming Encoder
-
Type:
-
indoor/outdoor
-
Audio encoding:
-
AAC MP3
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haiwei
-
Model Number:
-
Y535L
-
Input:
-
4ch 4K HDMI+4ch 1080 HDMI
-
Output:
-
IP Output
-
Application:
-
IPTV Headend Systems
-
Protocol:
-
HTTP/RTSP//RTMP/UDP/ON VIF2.4
-
Video encoding:
-
H.264/H.265
-
Resolution:
-
3840*2160/1920x1080/1280x720/1280x1024/1280x960/704x576
-
Nature:
-
Live Streaming Encoder
-
Type:
-
indoor/outdoor
-
Audio encoding:
-
AAC MP3
|

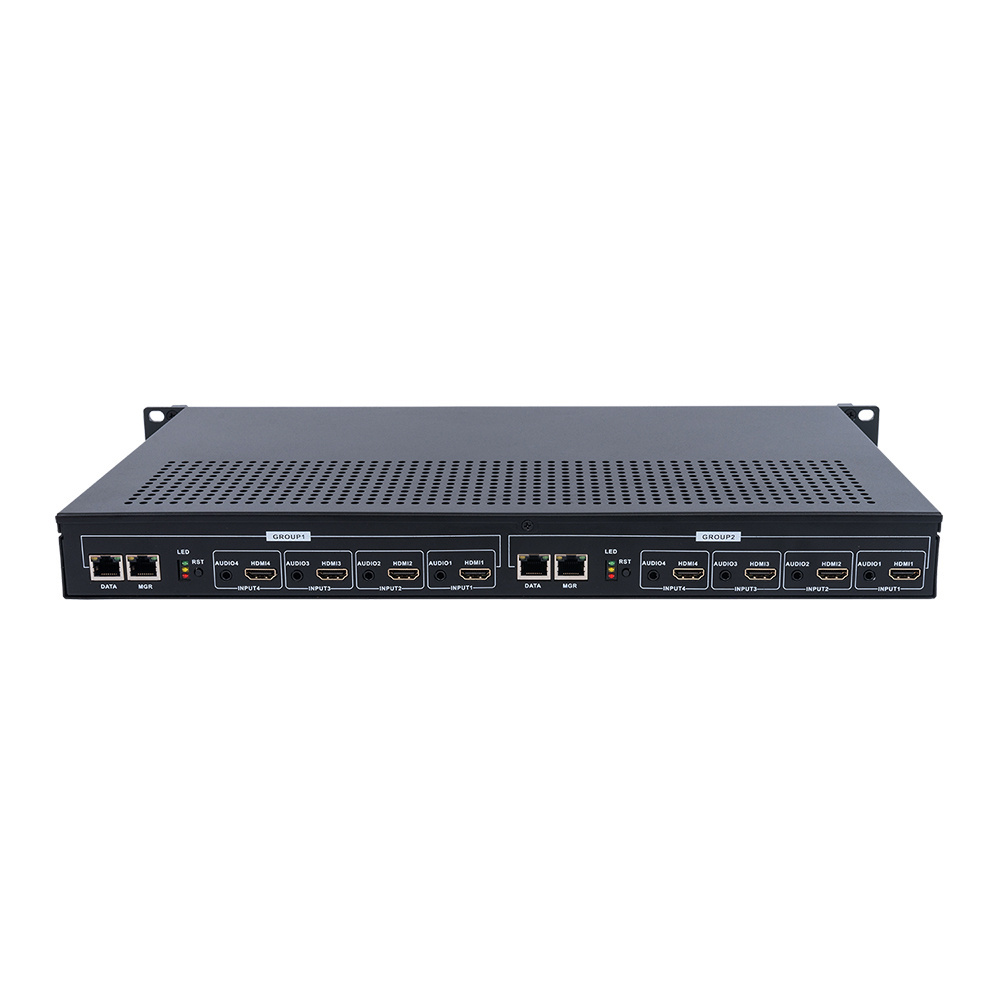

Input
|
8 channel HDMI, Line-in Audio
|
|
|
||
|
Output
|
1 channel IP signal output. 1 RJ45 100M / 1000M,Main TS stream and Sub TS stream, dual-stream.
|
|
|
||
|
Input resolution
|
Up to 3840*2160p 30fps
|
|
|
||
|
Coding standard
|
H.264/H.265
|
|
|
||
|
Video Bit Rate
|
CBR/ VBR, 16kb-20Mbit/s
|
|
|
||
|
Audio Bit Rate
|
64kb/s-384kb/s
|
|
|
||
|
Video packaging
|
FFMPEG/ VLC
|
|
|
||
|
On Screen Display
|
Text ,images
|
|
|
||
|
Network protocol
|
HTTP/ RTSP/ RTMP/ ON VIF/ RTP/ TCP/ UDP/HLS( Unicast/ multicast)
|
|
|
||
|
Available image settings
|
Contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
|
|
|
||
APPLICATIONS
Shenzhen Haiwei Vision technology is specializes in R&D, design, manufacturing, sale and provide tech support of a series of Audio& Video hardware including HDMI/ SDI/ VGA/ CVBS/ YPBPR/ 3G/ 4G/ Wi-Fi/ 1U/ 2U/ 3U video encoder, wireless image transmission equipment.
Haiwei owns fully-fledged teams involve management, R&D, tech support and manufacturing. With a series of stable embedded Audio& video encoder and decoder, HD capture card, which broadly used in Live streaming, VR Live, IPTV, LIVE education, Video conference, Split screen display, Video surveillance, Multimedia, LIVE Court training, Image identification and so on.
Over the years, Haiwei has served Wowza, Youtube, Facebook, Alibaba Cloud and thousands more multimedia companies around the world, unique China native hardware partner with Mudu.tv and many agents.
Q1:What is your Payment Terms?
A1:We accept T/T Bank Transfer,Paypal ,Western Union,L/C,Alipay, Alibaba Trade Assurance,Unistream all major credit cards are accepted through secure payment processor ESCROW.
Q2:Do you support OEM?
A2:we can provide OEM service by replacing your company logo on Shell, software interface and carton.
Q3: Where is your Factory/company located?
A3:Haiwei Factory/company :605~609 B Building HuaFeng Financial Harbour Xinan 6 Road Baoan 82 District Shenzhen City Guangdong Province China.
Haiwei Guanzhou Branch:Room 403, Linglanduhui, NO18 Huaying road, Northern Airport Road, Jiahewanggang, Baiyun district, Guangzhou City Guangdong Province China.
Q4: What about your Warranty?
A4:All products has 2 years' warranty, we offer technical supports online/phone/send back, repair services by our experienced after-sales specialist, free charge within warranty.And provide Lifetime free technical supports.
Q5:How to contact:
A5: Nick Hwang, Email nick @hwsxtec.com, Mobile/Whatsapp:+86 18818870061, Skype: nick--hwang
