Quick Details
-
Model Number:
-
WPTG-1
-
Pressure range:
-
100Kpa ~ 60MPa
-
Application:
-
Water Oil Air Pressure Measurement
-
Certification:
-
IECEE
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Winsun
-
Model Number:
-
WPTG-1
-
Pressure range:
-
100Kpa ~ 60MPa
-
Application:
-
Water Oil Air Pressure Measurement
-
Certification:
-
IECEE
Product Detail
Product overview

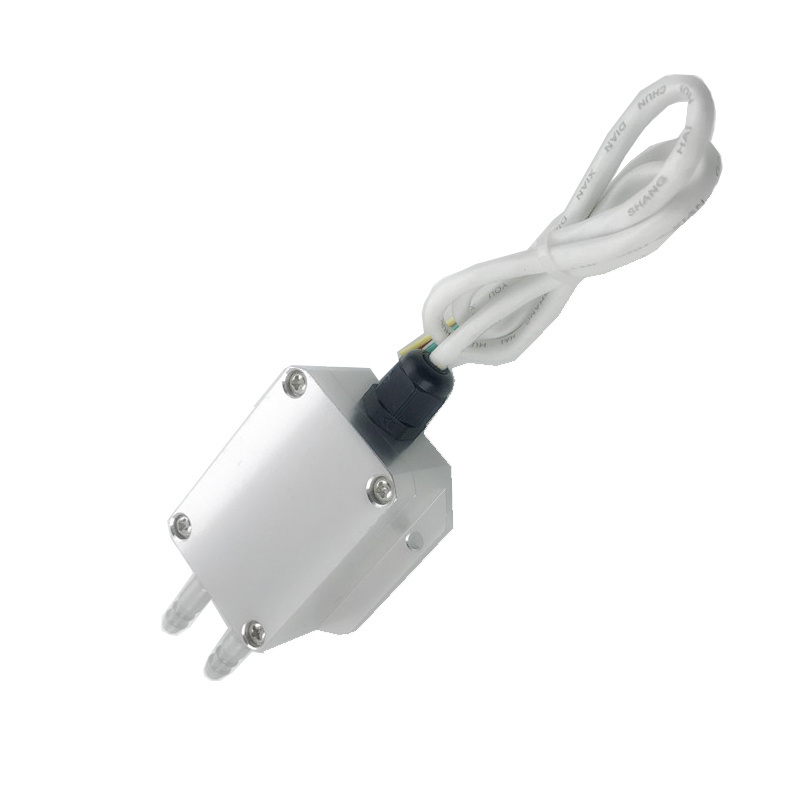

WPTG-1 (WTR05) Differential Pressure Transmitter is a standard and most economic transmitter applied in air pressure measuring. A high sensitivity piezoresistive silicon pressure chip is employed in the transmitter.
Features
Piezoresistive silicon chip employed
Air measuring only
High sensitivity
MEMS technology
|
Pressure range |
|||
|
Pressure range |
0 to 1Kpa to 100Kpa |
||
|
Pressure reference |
Differential pressure |
||
|
Overpressure |
300%F.S. |
||
|
Output signal |
|||
|
Output |
4 to 20 mA (typical) |
||
|
Specification |
|||
|
Accuracy (linearity, repeatability and hysteresis) |
±0.5%F.S. (Typical) |
||
|
Excitation |
24V DC(typical) |
||
|
Compensated temp. |
0-50 ℃ (typical) |
||
|
Operating temp. |
-20-85 ℃ |
||
|
Storage temp. |
-40-125 ℃ |
||
|
Zero temp. coefficient |
± 0.03%F.S./ ℃ |
||
|
Span temp. coefficient |
± 0.03%F.S./ ℃ |
||
|
Protection |
IP65 |
||
|
Long term stability |
<0.2%F.S./year |
||
|
Weight |
300g(approx.) |
||
|
Pressure Connection |
M12×1.5 |
||
|
Wire connection |
red wire: +Excitation green wire: +output |
||
