Quick Details
-
Keywords:
-
Automatic Carton Erector
-
Color:
-
White
-
Driver:
-
Belt
-
Capacity:
-
10-12 Boxes/Min
-
Certification:
-
CE Certification
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
-
Packaging Material:
-
Plastic
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Overseas third-party support available
-
Keywords:
-
Automatic Carton Erector
-
Color:
-
White
-
Driver:
-
Belt
-
Capacity:
-
10-12 Boxes/Min
-
Certification:
-
CE Certification

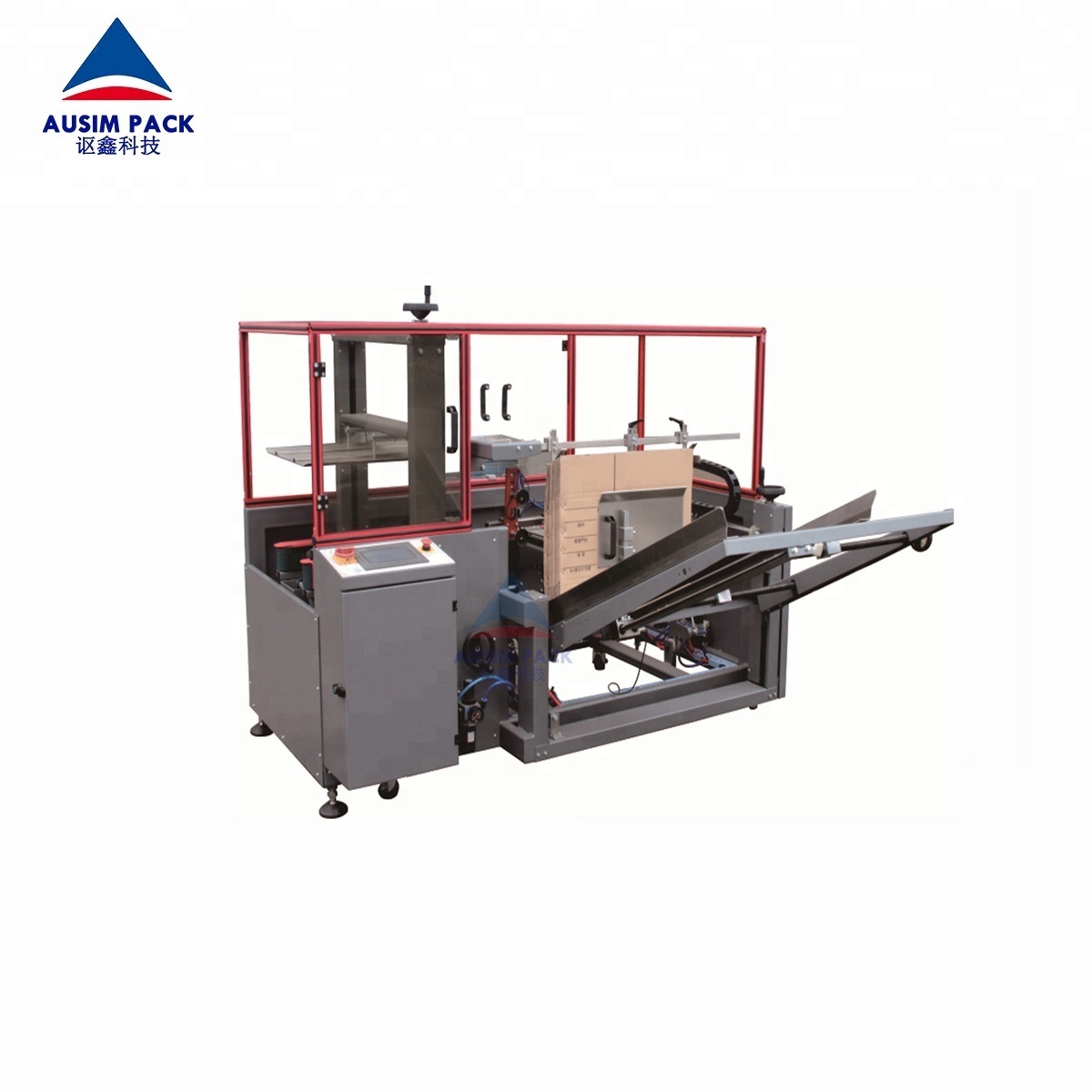

Automatic cardboard box erector and bottom sealer
For the video of the Automatic cardboard box erector and sealer ,please refer to the link as below:
1 Vertical storage, cartons can be added at any time without stopping the machine;
2 Suitable for forming and sealing cartons of the same size.
3Manually adjust to change the carton sizes(finishing in 2-3minutes);
4Advanced photoelectricity induction control system
5Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
6 Cutter Safety system to prevent hands form stabbed by the cutter
Heavy duty built, both steel and stainless steel types
Automatic cardboard box erector and sealer Options:
Stainless steel version optional
Hot melt glue sealing type optional
Right hand or left hand
Specified machine color
Specified pneumatic and electrical elements brand
Open safety guard alarm, machine stop function
Isolate electrical cabinet
2 & 3 inch tape head
24V low voltage control
Different voltage requirement
|
Model
|
|
SKX-01 Automatic Case Box Erector
|
|
||
|
Conveyor
|
|
20M/Min
|
|
||
|
Max Packing Size
|
|
W150-350mm*H150-500mm ,L 200-600mm
|
|
||
|
Driven
|
|
AC Gear Motor
|
|
||
|
Noise
|
|
<
75DB
|
|
||
|
Environment
|
|
Humidity
<
98%; Temperature -10-40 degree
|
|
||
|
Packing Material
|
|
BOPP Adhesive tape
|
|
||
|
Sealing tape width
|
|
48/60/75mm
|
|
||
|
Capacity
|
|
10-12Boxes/Min
|
|
||
There is special single inspection department is for qualified parts and famous brand part selection control.
https://youtu.be/yRD551H9s30
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
