Quick Details
-
name:
-

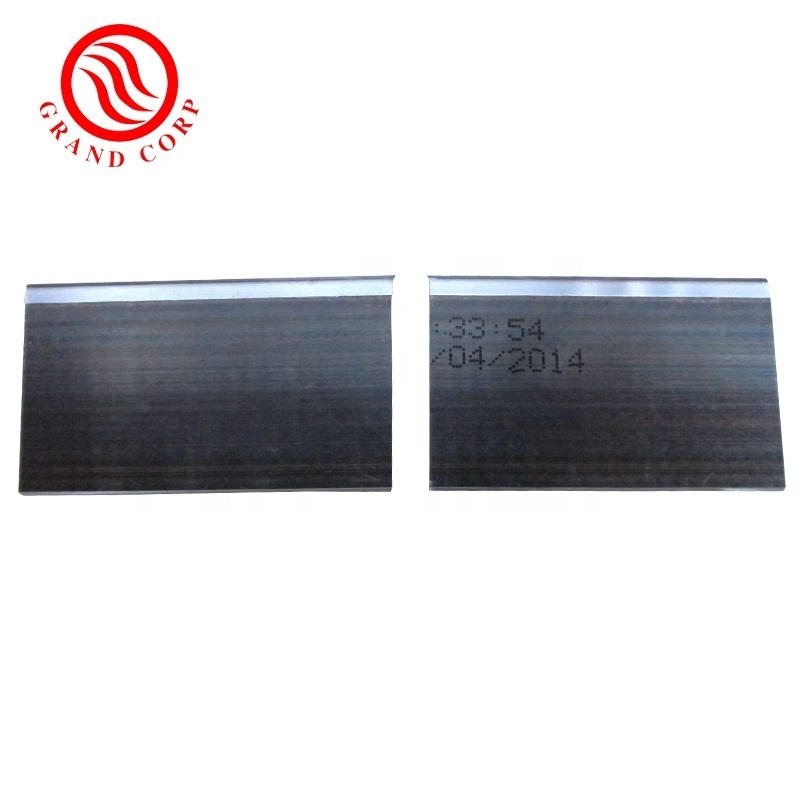

die steel rule steel blade die cutting rule for laser die making
-
bendability:
-
Excellent
-
Straightness:
-
Uniform Straightness
-
Application:
-
Cardboard, corrugated board, labels, post card, business card
-
Packing:
-
roll packed
-
Supply Ability:
-
5000m per day
-
Size:
-
2pt*23.8mm
-
MOQ:
-
100
Quick Details
-
Model Number:
-
2pt*23.8mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GRANDCORP
-
name:
-
die steel rule steel blade die cutting rule for laser die making
-
bendability:
-
Excellent
-
Straightness:
-
Uniform Straightness
-
Application:
-
Cardboard, corrugated board, labels, post card, business card
-
Packing:
-
roll packed
-
Supply Ability:
-
5000m per day
-
Size:
-
2pt*23.8mm
-
MOQ:
-
100
Specification:
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm,
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle(42/52)
Shape---------center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)
|
size
|
meter lengths packing
|
volume and weight
|
|
|
||
|
2pt 2 point 0.71*23.80*1000mm
|
100pcs/box100m/coil
|
36*470*500mm 15kgs
|
|
|
||
|
3pt 3 point 1.07*23.80*1000mm
|
70pcs/box 70m/boil
|
36*470*500mm 15kgs
|
|
|
||
|
4pt 4 point 1.42*23.80*1000mm
|
50pcs/box 50m/boil
|
36*470*500mm 15kgs
|
|
|
||
cutting rule for die making
1. It is for flat wooden laser die making
2. It is easy to be processed by auto bender and manual bender.
warmly to welcome to visit our yitai die making
Our cutting rule has two package styles.
1. Coil pack---------2pt(100m per coil) 3pt(70m per coil)
2. strip pack--------2pt(100pcs per box-1m measure cut off) 3pt(70pcs per box)
