- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2800*2000*4000
-
Weight (KG):
-
600
-
Power (kW):
-
3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

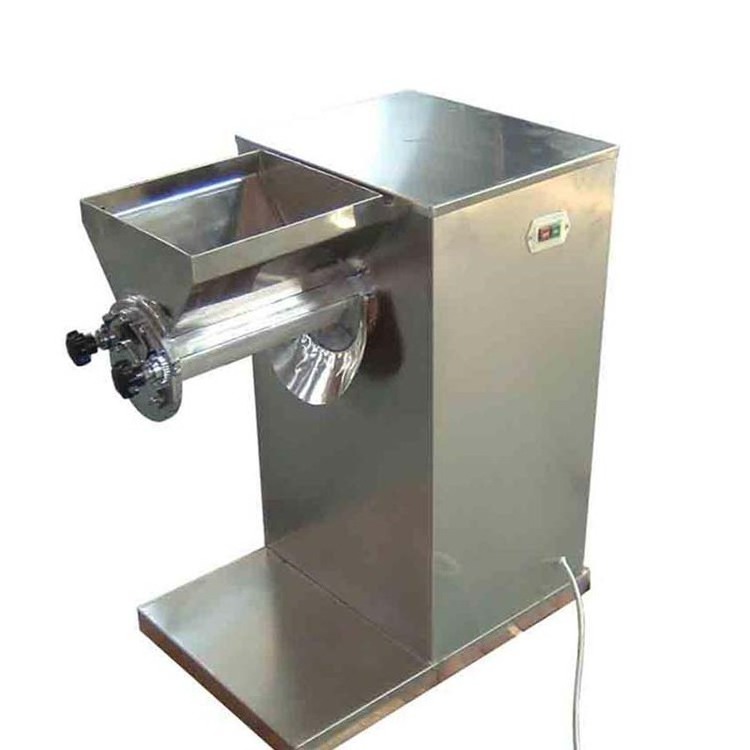

Swing Granulator
-
Application:
-
Chemical Industry
-
Capacity:
-
100-800kg/h
-
Material:
-
SS304/SS316L
-
Function:
-
dry granulator
-
Colour:
-
Customer's Option
-
Installation:
-
Engineer's Guidance
-
Weight:
-
600kg
-
Power(KW):
-
3
Quick Details
-
Output (kg/h):
-
500
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Haomai
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2800*2000*4000
-
Weight (KG):
-
600
-
Power (kW):
-
3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Swing Granulator
-
Application:
-
Chemical Industry
-
Capacity:
-
100-800kg/h
-
Material:
-
SS304/SS316L
-
Function:
-
dry granulator
-
Colour:
-
Customer's Option
-
Installation:
-
Engineer's Guidance
-
Weight:
-
600kg
-
Power(KW):
-
3
Products Description
WORKING PRINCIPLE
The swing granulator is suitable for foodstuff, chemical, solid drink and so on industries. It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule.
The machine is mainly used for making granule with different specifications of chemical industry ,foodstuff industry ,etc .After dried ,the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.The place where should be contacted with raw material is made of stainless fully .Its appearance is beautiful and taste and its clean is very convenient and its operation is simple and its energy consumption is low.The drum is swung repeatedly through mechanical driving, which makes the material extruded from sieve,further granulated or crushed or speedily palletized.
1.Widely used in chemical and foodstuff trades etc. It can make wet powdery material into granulates or crush block dry material,as well as carry out speedy granulation.
2. The drum swing repeatedly through mechanical drive,which makes the material extruded from sieve and become granules.
Specification
|
Model
|
YK160A、B
|
YK160C
|
|
Production capacity (kg/h)
|
100－200
|
150－300
|
|
Motor power (kw)
|
2.2
|
3
|
|
Roller diameter (mm)
|
160
|
160
|
|
Overall dimension (mm)
|
1150X680X1150
|
1260×750×1150
|
|
Weight (kg)
|
300
|
450
|
