Quick Details
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EVERSUN
-
Dimension(L*W*H):
-
1370*834*1647
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Mixing Raw Material
-
Usage:
-
Mixing Paste Proucts
-
Keyword:
-
liquid mixer perfume
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Application scope:
-
Chemical Cosmetic Food
-
Name:
-
ribbon mixer food
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
10 - 24 r.p.m
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
400 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EVERSUN
-
Dimension(L*W*H):
-
1370*834*1647
-
Power (kW):
-
5.5 kW
-
After-sales Service Provided:
-
Online Support
-
Function:
-
Mixing Raw Material
-
Usage:
-
Mixing Paste Proucts
-
Keyword:
-
liquid mixer perfume
-
Machine Type:
-
Industiral Blender Mixer Machine
-
Application scope:
-
Chemical Cosmetic Food
-
Name:
-
ribbon mixer food

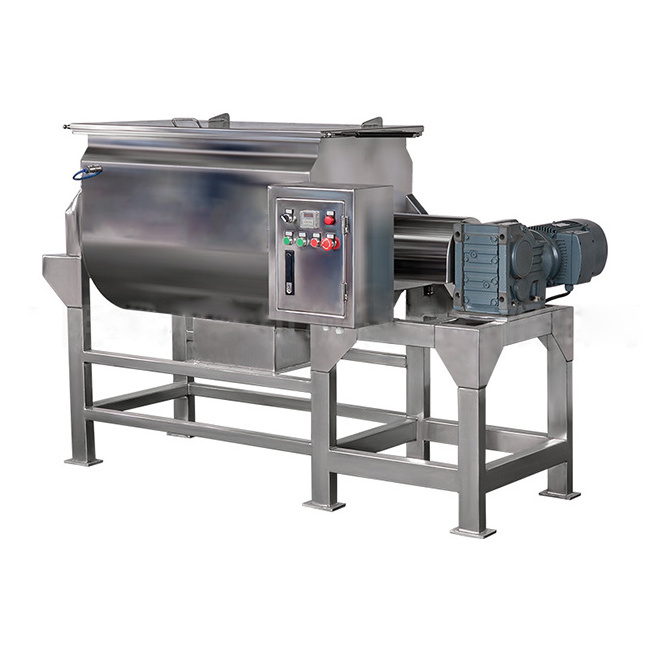

Industry Cement Powder Horizontal Blender Ribbon Mixer
Eversun Ribbon mixer is one kind of slot type mixer for powder and paste.It is widely used in the industries of chemical,and food.The main components are U type container,ribbon mixing blades and transmission parts.During the mixing process,the materials in container are doing mixing movenment driven by the ribbon spiral mixing blade.
Woring Principle of Ribbon Mixer: The ribbon blades are generally made of double or triple layers.All the layer are installed on one single horizontal axis,the inner layers and outer layers are doing opposite rotation during mixing process.The material form avortex in the flow during these two movement to speed up the mixing speed and improve the uniformity.
Features & Benefits
-
It is a multifunctional mixing equipment with stable operation,reliable quality,low noise,long service life,easy installation and maintenance,and a variety of spiral blade structures.
-
The mixing speed is fast and the mixing uniformity is high.A scraper can be installed on the ribbon blade,which has a good mixing effect on viscous materials.
-
According to the mixing requiremengs of different materials (special materials need to be cleaned each time they are mixed),different spiral blade stuctures can be used,andheating and drying function can be provided for customers to choose.
-
The smooth mixing process reduces the damage to fragile materials.Customized spiral blade structure is available for special materials.
- A cleaning door can also be opened on the horizontal machine body for users to clean.The overall height of the equipment is low,easy to install.
Detailed data of Ribbon Mixer
Technical parameters:
|
Model specification |
WLDH-0.1 | WLDH-0.3 | WLDH-0.5 |
WLDH - 1 |
WLDH- 1.5 |
WLDH- 2 |
WLDH- 3 |
WLDH- 4 |
WLDH-6 |
|
One-time mixing(kg) |
30-50 |
100- 150 |
200- 300 |
400- 600 |
600- 900 |
800- 1200 |
1200- 1800 |
1600- 2400 |
2400-3600 |
|
Motor power (kg) |
1.5-4 | 3-3.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 |
|
Size(mm)* Max-diameter*High |
1190 * 740 *770 |
2030 * 630 *980 |
2320 * 730 *1130 |
2800 *920 *1320 |
3180 *1120 *1640 |
3310 *1120 *1640 |
3750 *1290 *1820 |
4220 *1400 *1990 |
4700 *1610 *2260 |
|
Equipment weight(kg) |
300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 |
Application:
Ribbon Mixer is widely used in agriculture, food, medicine, mineral, chemistry, ceramics and other industries.
EVERSUN Machinery has been specializing in the production of Screening and Conveying equipment for 30 years . As the top three in China's vibrating screen industry, we have done matching and OEM for many large companies, including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand,Indonesia, New Zealand and other countries. Our main products include: sieving machines, vibro sifter machines, ultrasonic screener, sieve separator,vibrating sieve screen, conveying equipment, sieve machine and so on.
1. How to choose the right model?
Please let us know your target mixing capacity: ___kg per hour
Do you need to control mixing speed?
Do you need explosion proof?
Do you need SS304, SS316 or Carbon steel for the equipment?
2.Do you have associated equipment?
Yes, we have vibration screen, vacuum Conveyor, screw conveyor and other equipment to build one entire production line, if you need.
3. What's your production time?
A: Generally, 15~20 days. If you are in urgent need, we will try to shorten the time.
4. why should you buy from us not from other suppliers?
As one of the leading enterprises in sieving industry, Jubao intelligent delivers over 2000 sets sieving equipment & system home and abroad. Mass production, Fast delivery, Stable quality, Affordable price & Intimate service has become that labels of Jubao.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,Express Delivery ;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
