- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AME
-
Voltage:
-
220V
-
Power:
-
500W, 1000W or less
-
Dimension(L*W*H):
-
800mm*600mm*600mm
-
Weight (KG):
-
150
-
Product name:
-

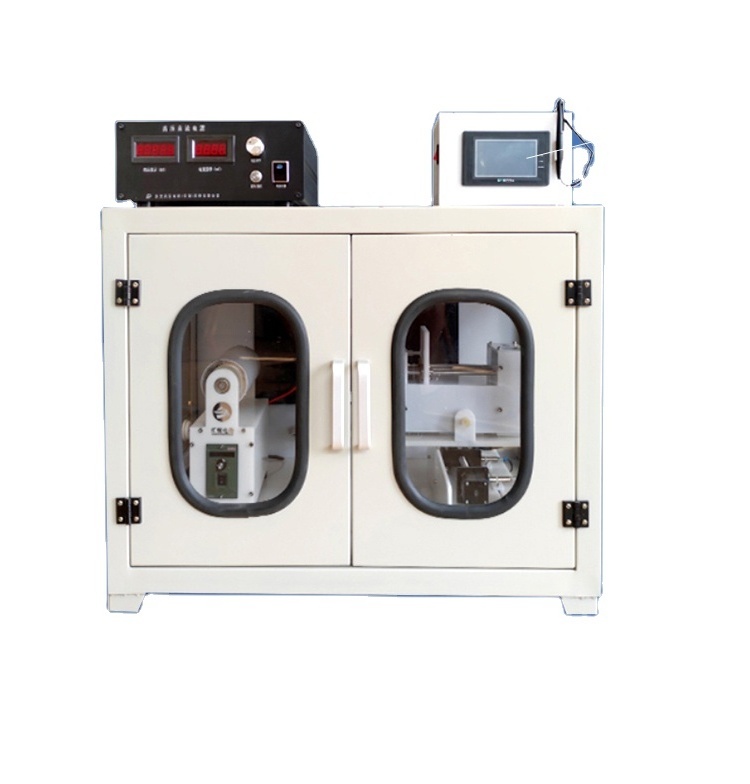

Electrospinning machine
-
warranty:
-
1 year
-
Application:
-
Manufacturing Plant, laboratory
-
spec:
-
different specs customized
-
Weight:
-
By actual weight
-
Keywords:
-
Electrospinning
-
Applied Materials:
-
Biopolymer, Macromolecule, Prepolymer Nano-fibers, etc.
Quick Details
-
Machine Type:
-
New
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AME
-
Voltage:
-
220V
-
Power:
-
500W, 1000W or less
-
Dimension(L*W*H):
-
800mm*600mm*600mm
-
Weight (KG):
-
150
-
Product name:
-
Electrospinning machine
-
warranty:
-
1 year
-
Application:
-
Manufacturing Plant, laboratory
-
spec:
-
different specs customized
-
Weight:
-
By actual weight
-
Keywords:
-
Electrospinning
-
Applied Materials:
-
Biopolymer, Macromolecule, Prepolymer Nano-fibers, etc.
Promotion Aluminum 1 Year Metal Coating Machinery Pvd Electrostatic Flocking Machine 40Va
|
Item |
Detail |
|
|
Power |
220V,50/60Hz |
|
|
Single Metering pumps |
1ml,5ml,10ml,20ml,30ml,50m,100ml; 3 Clamp for 3 Syringe.
|
|
|
High voltage power supply |
Positive |
0-30Kv,Digital |
|
Negative |
0--10Kv,Digital(optional) |
|
|
Heating source |
Nozzle Frame |
7 holes, The height adjustable, angle adjustable. |
| Single Nozzle Diameter | 0.1-1.6mm | |
| Coaxial Nozzle(Optional) | Inner Diameter<0.84mm Max:18G/14G Big:19G/15G Normal:22G/17G | |
|
Parallel nozzle(Option) |
Get Mixed fiber film,2 fiber mixed together |
|
|
Combined Nozzle(Optional) |
Get layered fiber film,2 fiber layered |
|
| Micro nozzle system(Optional) | No need soft pipe, less liquid will be fine | |
| Nozzle Moving device |
Moving distance:0-200mm,Moving speed: Stepless speed regulation
Precision speed:1-2000mm/min, Precison:1mm/min |
|
|
Rotating collector |
Rotating speed |
Low:65-1300rpm;
|
| Roller size | D=89mm,L=200mm(optional) | |
| Flat wire retractor(Optional) | Dimension:20*20cm | |
| X-Y-Z(Optional) | X-Y-Z moving direction | |
| Box |
Metal box+Anticorrosive materials+3 sides window
Exhaust System Lighting system |
|
|
Safety system |
Grounding |
|
product Fearture:
Touch panel or software control of various features like mandrel rotating speed, duration, syringe
pump flow rate, X-Y plate stage speed, etc.
Rotating mandrel target collector and the stationary X-Y plate target collector are provided with
the
system.
Desktop fume hood has features like the halogen light heating and venting port on top, humidity
display, and the transparent door for monitoring the electrospinning process.
