Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Panfeng
-
Model Number:
-
PFM-22P
-
Torque:
-
1Nm
-
Motor type:
-
PMDC Brushed Motor
-
Rated Power:
-
0-50w
Quick Details
-
Speed(RPM):
-
10-1000rpm
-
Continuous Current(A):
-
2A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Panfeng
-
Model Number:
-
PFM-22P
-
Torque:
-
1Nm
-
Motor type:
-
PMDC Brushed Motor
-
Rated Power:
-
0-50w
Products Description

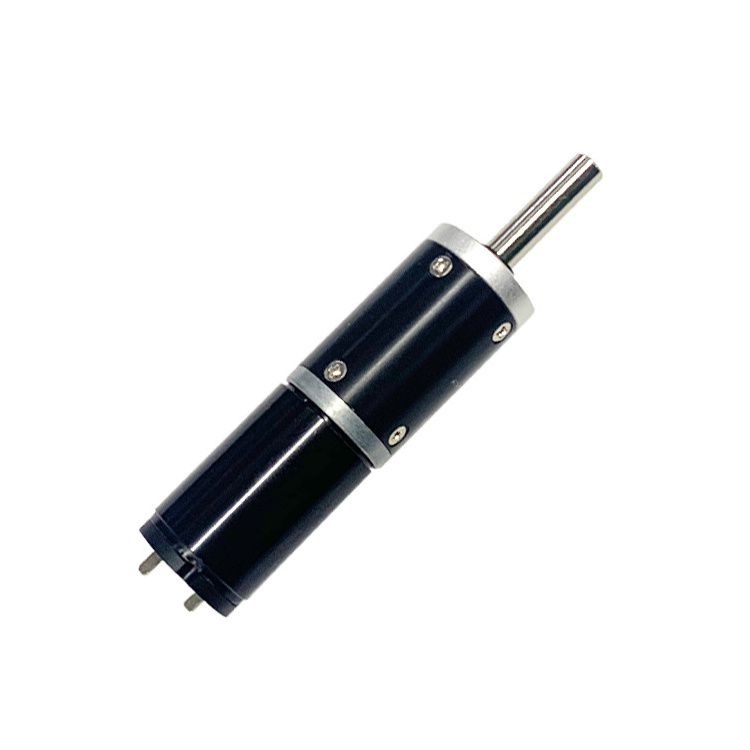

24v dc planetary gear electric motor wheel PFM-22P for crawler maxon faulhaber replacement
Details Images
Technical Specifications
|
Gearbox Reduction Ratio:
|
|
|
|
|
|
|
||||||
|
Stage
|
Ratio
|
|
Nominal Torque
|
Max Momentary Torque
|
Efficiency
|
Length(mm)
|
||||||
|
1
|
3.71
|
4.29
|
4kg.cm
|
12kg.cm
|
94%
|
21.8
|
||||||
|
2
|
13.73
|
15.88
|
6kg.cm
|
18kg.cm
|
88%
|
27.2
|
||||||
|
|
18.37
|
|
|
|
|
|
||||||
|
3
|
50.90
|
58.86
|
8kg.cm
|
24kg.cm
|
83%
|
32.6
|
||||||
|
|
68.07
|
78.72
|
|
|
|
|
||||||
|
4
|
188.61
|
218.12
|
10kg.cm
|
30kg.cm
|
78%
|
38.0
|
||||||
|
|
252.25
|
291.72
|
|
|
|
|
||||||
|
|
337.35
|
|
|
|
|
|
||||||
|
5
|
698.99
|
808.34
|
12kg.cm
|
36kg.cm
|
73%
|
43.4
|
||||||
|
|
934.81
|
1081.07
|
|
|
|
|
||||||
|
|
1250.20
|
1445.80
|
|
|
|
|
||||||
|
Gearbox Material
|
|
|
Plastic, Steel
|
Radial Load
|
3.5kgf
|
|
||||||
|
Backlash
|
|
|
≤3°
|
Axial Load
|
2kgf
|
|
||||||
|
Bearing
|
|
|
Ball Bearing
|
Shaft End Play
|
0.03mm
|
|
||||||
|
Work Temperature Range
|
|
|
-10℃~+60℃
|
Work Humidity Range
|
10%~80%
|
|
||||||
|
Customized specs and Shaft are available.
|
|
|
|
|
|
|
||||||
