Quick Details
-
Brand Name:
-
HAITUN or OEM
-
Model Number:
-
PC-21(0)
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
15-250PSI
-
Rated voltage:
-
110V-240V
-
Application:
-
Pumps
-
Certification:
-
TUV/CE/RoHS/ISO 9001, ce
-
Protection rating:
-
IP20
-
Frequency:
-
50/60Hz
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
110-240v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAITUN or OEM
-
Model Number:
-
PC-21(0)
-
Max. Current:
-
20A
-
Max. Working Pressure:
-
15-250PSI
-
Rated voltage:
-
110V-240V
-
Application:
-
Pumps
-
Certification:
-
TUV/CE/RoHS/ISO 9001, ce
-
Protection rating:
-
IP20
-
Frequency:
-
50/60Hz
Technical data
1.pressure range:20-175psi
2.pressure setting:20-40psi 30-50psi 95-125psi 120-150psi 135-175psi
3.rated current:12A
4.rated voltage:110V-240V
5.frequency:50/60hz
Descriptions

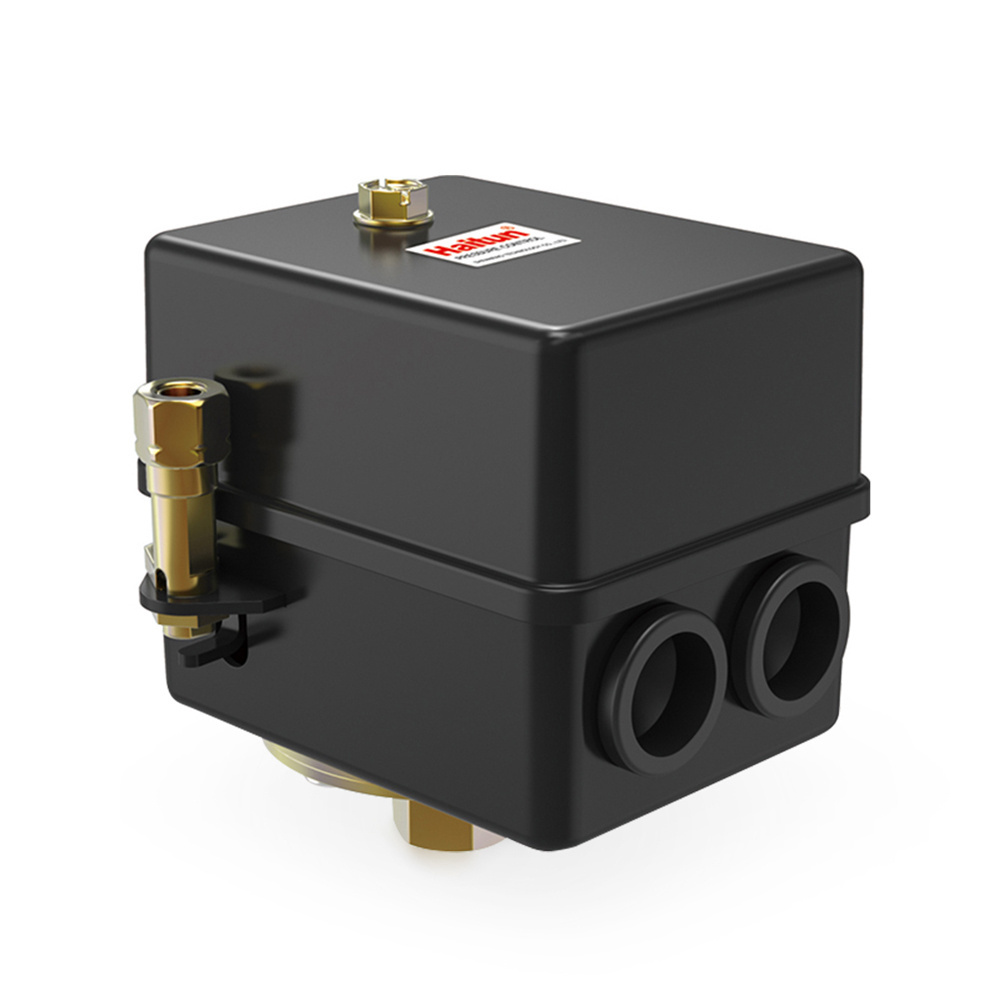

1.pressure switch used for air compressors
2.the switch start and stop air compressor automatically according to the pressure setting
3.hydraulics connection can choose 1/4" male or female, one way or four way
4.air-relief valve with delayed closing system.
Options
1.crust according to customers' needs
2.hydraulics connection according to customers' needs.
3.air-relief valve of 6mm or 1/4"diameter pipe.
4.pressure setting according to customers' needs.
Packing information
| box size(cm) | 9.7x9.2x11.5 |
| carton size(cm) | 50x47.5x13.5 |
| pcs/ctn | 25 |
| n.w.(kgs) | 19.3 |
| g.w.(kgs) | 21 |
| 20gp quantities(pcs) | 21875 |
