Quick Details
-
Dimension(L*W*H):
-
5100*2260*2550mm
-
Weight:
-
5500 KG
-
Marketing Type:
-
Competitive Price
-
Mobility:
-
Crawler type
-
New design:
-
Rotary Drilling
-
New features:
-
Sample Available
-
New technology:
-
Video
-
New products:
-
Crawler Mounted
-
New manufacturing:
-
High Efficiency
-
New process:
-
For Hard Rock
-
Air-end warranty:
-
1.5 years
-
Diesel Engine warranty:
-
1 year
-
Featured Product:
-
Drilling Rig
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
APCOM
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5100*2260*2550mm
-
Weight:
-
5500 KG
-
Marketing Type:
-
Competitive Price
-
Mobility:
-
Crawler type
-
New design:
-
Rotary Drilling
-
New features:
-
Sample Available
-
New technology:
-
Video
-
New products:
-
Crawler Mounted
-
New manufacturing:
-
High Efficiency
-
New process:
-
For Hard Rock
-
Air-end warranty:
-
1.5 years
-
Diesel Engine warranty:
-
1 year
-
Featured Product:
-
Drilling Rig
-
Certification:
-
CE

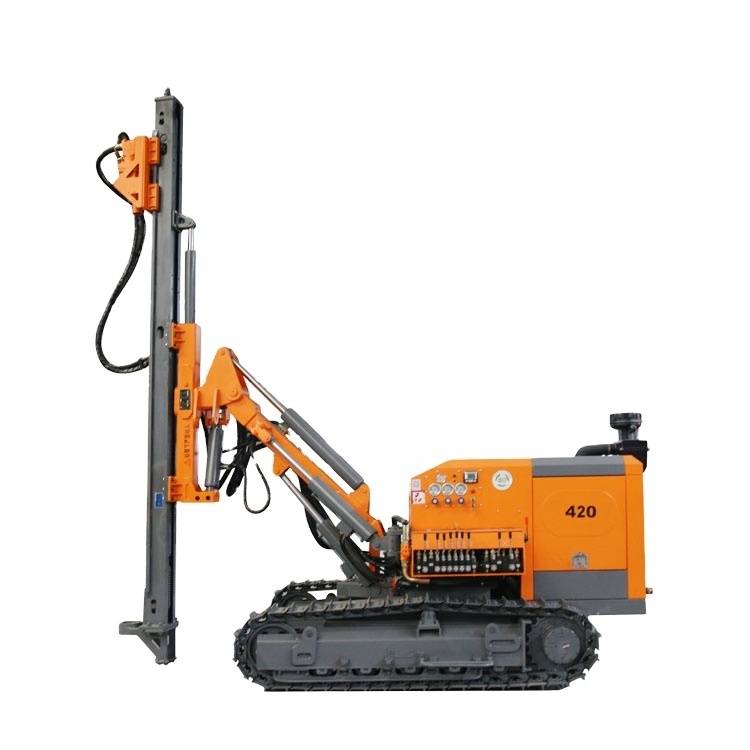

ZAYX-420D Rig Parm
|
Main technical specifications
|
ZAYX-410D
|
ZAYX-420D
|
|
Working Pressure
|
0.7-1.5 Mpa
|
0.7-2.5 Mpa
|
|
Capacity F.A.D
|
7-13m
3
/min
|
8-20m
3
/min
|
|
Hole Range
|
90-110 mm
|
90-140 mm
|
|
DTH Hammer
|
3.5"
|
3.5" / 4"
|
|
Max. Hole Depth
|
20 m
|
30 m
|
|
Drill Pipe Length
|
2 m
|
3 m
|
|
Drill Pipe Diameter
|
60 mm
|
60 mm / 80 mm
|
|
Rotation Speed
|
120 rpm
|
80 rpm
|
|
Rotation Torque
|
970 N.m
|
2050 N.m
|
|
Moter Power Pack
|
22 kw
|
30 kw (Option 55 kw)
|
|
Diesel Engine
|
NO
|
NO
|
|
Model
|
Moter power
|
Drilling method
|
Hole Diameter
|
|
ZAYX-410B-D
|
22kw
|
Down-the-hole
|
90-110mm
|
|
ZAYX-420D-1
|
30kw
|
Down-the-hole
|
90-140mm
|
|
ZAYX-420D-2
|
55kw
|
Down-the-hole
|
90-140mm
|
Contact Us
Cummins Engine Drill Rig
|
Cummins Engine Blasting Drilling Rig for Mine
|
|
|
|
|
|
|
|
|
||||||||
|
Model
Click on
|
Borehole
Diameter
|
Drill
depth
|
DTH
Hammer
|
Pipe
|
Cummins
Power
|
Cummins
Model
|
Air
Compresor
|
Automatic Rod Change
|
||||||||
|
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine
|
|
|
|
|
|
|
|
|
||||||||
|
Model
Click on
|
Hole
|
Depth
|
Drill pipe
|
Compresor
|
Cummins
Power
|
Impactor parameter
|
|
Note
|
||||||||
Drill rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) Click on ==>
Automated hydraulic drilling rig
( Drilling method: Tophammer ), 7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Click on ==>
Anchor surface drilling rig
( Drilling method: Down-the-hole ),3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Click on ==>
Water well surface drilling rig
( Drilling method: Down-the-hole ), 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
Click on ==>
16 products separate drilling rig
Click on ==>
4 products integrated drilling rig no cabin
Click on ==>
8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on
UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
Integrated Rig Parm
ZAYX-421T & ZAYX-452
High Current Price Ratio
High Efficiency
High Quality
High Quality
An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.
|
Integrated DTH Surface Drill Rig
With Air Compressor
|
|
|
|
|
|
|||||
|
Model
|
Power
|
Compressor
|
Diameter
|
Depth
|
Cabin
|
|||||
|
ZAYX-421T
|
YUCAI 140KW
|
10m3/min 15bar
|
80-100mm
|
25m
|
No
|
|||||
|
ZAYX-452
+
|
YUCAI 191 KW
|
15m3/min 17bar
|
108-127mm
|
25m
|
No
|
|||||
|
ZAYX-423
|
YUCAI 162KW
|
11m
3
/min 15bar
|
90-115mm
|
25m
|
Yes
|
|||||
|
ZAYX-453
|
YUCAI 230KW
|
16m
3
/min 17bar
|
90-138mm
|
25m
|
Yes
|
|||||
|
ZAYX-454
|
Commins 266KW
|
20m
3
/min 18bar
|
110-152mm
|
28m
|
Yes
|
|||||
|
ZAYX-455
|
Commins 287KW
|
20m
3
/min 24bar
|
138-165mm
|
35m
|
Yes
|
|||||
|
ZAGA-470
|
YUCAI 294KW
|
20m
3
/min 24bar
|
138-178mm
|
40m
|
Yes
|
|||||
|
Top Hammer Drilling Rig
|
|
|
|
|
|
|||||
|
Model
|
Power
|
Compressor
|
Diameter
|
Depth
|
Cabin
|
|||||
|
ZAYX-422T
|
Commins 93KW
|
3.4 m3/min 7bar
|
42- 89mm
|
15 m
|
yes
|
|||||
|
ZAYX-423T
|
Commins 119KW
|
4.7 m3/min 9bar
|
64-102mm
|
17 m
|
yes
|
|||||
|
ZAYX-424T
|
Commins 179KW
|
8.0 m3/min 10bar
|
76-115mm
|
25 m
|
yes
|
|||||
|
ZAYX-425T
|
Caterpiller 168KW
|
8.0 m3/min 10bar
|
76-115mm
|
25 m
|
yes
|
|||||
