Quick Details
-
Panel Size:
-
1200*900mm
-
Place of Origin:
-
Shenzhen, China
-
Model Number:
-
A10 PRO-Q
-
Item:
-
Basketball Court Scoreboard Banner Digital Led Display
-
Display Function:
-
Videos, Images, Words, etc.
-
Usage:
-
Outdoor & Indoor
-
Material of Panel:
-
Die-casting Magnesium
-
Brightness:
-
6500 cd/㎡
-
Refresh rate:
-
≥3840 Hz
-
IP Grade:
-
IP65
-
Lifespan:
-
≥100,000 h
-
Warranty:
-
5 years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Pixel Pitch:
-
10mm, 6.67mm, 8mm, 10 mm
Quick Details
-
Application:
-
Indoor, Outdoor
-
Brand Name:
-
Canbest
-
Color:
-
Full Color
-
Panel Size:
-
1200*900mm
-
Place of Origin:
-
Shenzhen, China
-
Model Number:
-
A10 PRO-Q
-
Item:
-
Basketball Court Scoreboard Banner Digital Led Display
-
Display Function:
-
Videos, Images, Words, etc.
-
Usage:
-
Outdoor & Indoor
-
Material of Panel:
-
Die-casting Magnesium
-
Brightness:
-
6500 cd/㎡
-
Refresh rate:
-
≥3840 Hz
-
IP Grade:
-
IP65
-
Lifespan:
-
≥100,000 h
-
Warranty:
-
5 years
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Pixel Pitch:
-
10mm, 6.67mm, 8mm, 10 mm
Product Description

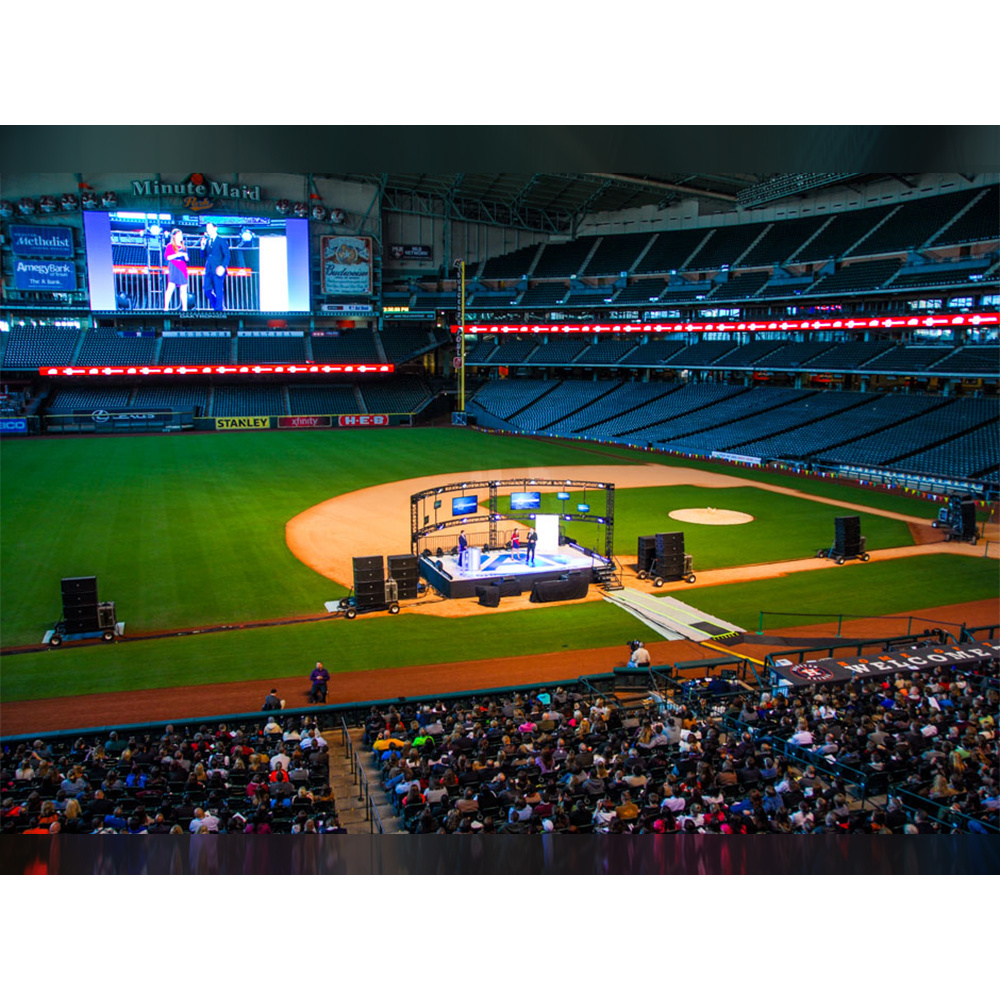

Stadium perimeter LED display is ideal for
football field, basketball court, racetrack, sports field and more to display advertising.
Specification
|
Value
|
Apro-Q6
|
Apro-Q8
|
Apro-Q10
|
|
Pixel pitch (mm)
|
6.67
|
8
|
10
|
|
Module size (mm)
|
400x300
|
400x300
|
400x300
|
|
Pixel configuration
|
SMD2727
|
SMD3535
|
SMD3535
|
|
Brightness (nits)
|
6500-9500
|
6500-10000
|
6500-10000
|
|
Grey scale ( level )
|
14 bit
|
14 bit
|
14 bit
|
|
Weight kg/sqm
|
45
|
45
|
45
|
|
Pixel Matrix Per Sq.m
|
22500
|
15625
|
10000
|
|
Refresh rate (Hz)
|
≥3840
|
≥3840
|
≥3840
|
|
IP grade
|
IP66
|
IP66
|
IP66
|
|
Input voltage ( V )
|
AC220V±10%
|
AC220V±10%
|
AC220V±10%
|
|
Power Consumption (Max / Avg)
|
630/ 250 w/sq.m
|
550/ 200 w/sq.m
|
550/ 200 w/sq.m
|
|
Size (L x W x D mm)
|
1600x900x101
|
1600x900x101
|
1600x900x101
|
Packing & Delivery
Stadium perimeter LED display
is packaged with wooden cases or flight case.
1.
Wooden case
: c
overed with eco-friendly wood and aluminum edge,
with anti-collision EPE foams inside, protect products from damage during transportation.
2.
Flight case
: hard outer fireproof frame with inner EVA soft rebound material, with durable wheels at the bottom, convenient and safe moving.
Why Choose Us
Interaction with Clients
Our Advantages
FAQ
Q1. What is the MOQ?
A:
1pc panel
, but we suggest to get bigger video wall to check better visual experience.
Q2: How to co
ntrol the stadium perimeter LED display?
A: We use Novastar/Colorlight contro
l system,
supports WIFI/LAN/USB/4G wireless control.
Q3:
Can your stadium perimeter LED display play video?
A:
Yes, absolutely. LED screen can play videos, images, words, and other info based on your demand.
Q4: Your stadium perimeter LED display is with wheels, can it keep still?
A:
Yes. Each wheel is with a foot brake, can make the LED screen keep still steadily.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q6: How long is your warranty?
A: 5 years, we will be responsible for free repairment or replacement for defective parts.
Q7: What will you do if we have problems related to installation, configuration and use?
A: Our after-sale service team will solve all the problems, until the screen can work normally.
Q8. What is your terms of payment?
A: 50% as deposit, 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q9. What is your terms of delivery?
A:
EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.
Q10. What is your delivery time?
A: Generally 15-20 days after receiving the deposit. The specific delivery time depends on the quantity of the order.
