Quick Details
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Weight (T):
-
3
-
Machine color:
-
OEM

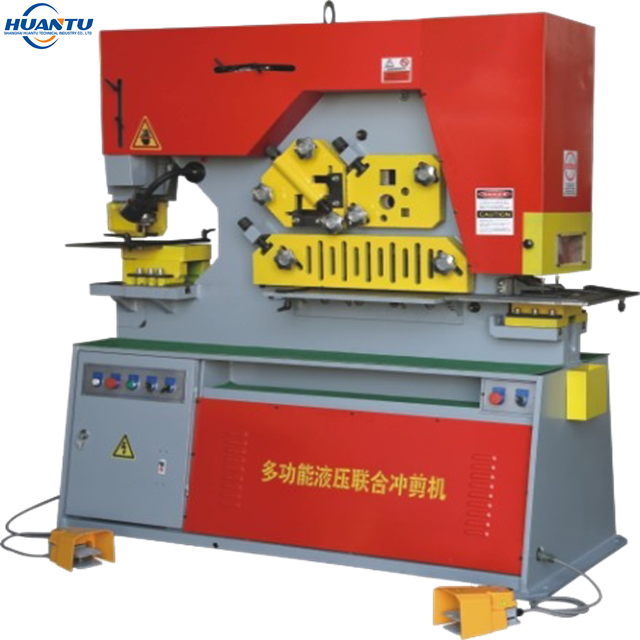

New japanese engines, plate punch - 25 pin, puching machine, Q35Y Series
Summary
The multi functional iron worker (Q35series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. It has another special function, that is , it can also bend the plate below 500mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety , function, capability and maintenance.
Parameter
|
Model |
Q35Y-16 ( IW-60 ) |
Q35Y-20 ( IW-90) |
Q35Y-25 (IW-110) |
Q35Y-30 ( IW-140) |
|
Working pressure ( KN ) |
600 |
900 |
1200 |
1400 |
|
Max. cutting thickness ( mm ) |
16 |
20 |
25 |
26 |
|
Max. cutting length(mm) |
400 |
480 |
600 |
600 |
|
Tensile strength of sheet metal (N/mm²) |
≤450 |
≤450 |
≤450 |
≤450 |
|
Shear angle(deg) |
7 |
8 |
8 |
8 |
|
Stroke of ram(mm) |
80 |
80 |
80 |
80 |
|
( stroke times ) (min) |
8 |
8 |
8 |
8 |
|
Depth of throat(mm) |
300 |
355 |
400 |
600 |
|
Max .Capacities(mm) |
25×16 |
30×20 |
35×25 |
38×28 |
|
Main motor(KW) |
4 |
5.5 |
7.5 |
11 |
|
Length of machine tool(mm) |
1650 |
1950 |
2355 |
2680 |
|
Width of machine tool(mm) |
800 |
900 |
980 |
1060 |
|
Height of machine tool(mm) |
1780 |
1930 |
2100 |
2350 |
|
Weight of machine tool(kg) |
1900 |
2600 |
4800 |
6800 |
Our standard random matching (free):
1. A set of hole punching die,
2. A set of angle steel blade,
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade.
If you need the other special dies and tool profiles , please just tell us then we can make just according to your request.
