Quick Details
-
Brand Name:
-
HAIXU ABRASIVES
-
Model Number:
-
0.05-30mm
-
Use:
-
Tumbling polishing
-
Product name:
-
Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling
-
Application:
-
shot blasting
-
Color:
-
White
-
Shape:
-
Ball Shape
-
Hardness:
-
7.0 Mohs Scale
-
Bulk density:
-
2.1-2.3g/cm3
-
Chemical:
-
Zr2O
-
Lead TIme:
-
5-10days
-
MOQ:
-
25KGS
-
Keyword:
-
Zirconia grinding ball
Quick Details
-
Type:
-
grinding media
-
Abrasive Grain Sizes:
-
0.05-30mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HAIXU ABRASIVES
-
Model Number:
-
0.05-30mm
-
Use:
-
Tumbling polishing
-
Product name:
-
Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling
-
Application:
-
shot blasting
-
Color:
-
White
-
Shape:
-
Ball Shape
-
Hardness:
-
7.0 Mohs Scale
-
Bulk density:
-
2.1-2.3g/cm3
-
Chemical:
-
Zr2O
-
Lead TIme:
-
5-10days
-
MOQ:
-
25KGS
-
Keyword:
-
Zirconia grinding ball

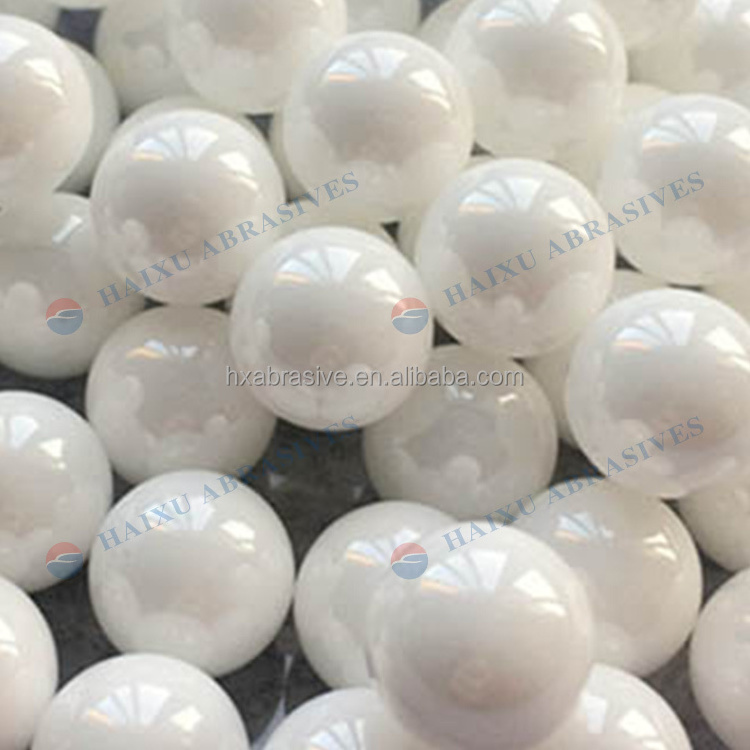

Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling polishing media
The Zirconia Grinding ball is made from Yttrium stabilized zirconia and Zirconia toughened alumina powder. The zirconia grinding media ball has advantages of superior high strength, extremely wear resistance and durability.
Features of Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling polishing media
1. Zirconia ball has good roundness, smooth surface, high density, and good hardness. It is a fine spherical grinding media.
2. Good stability, resistant to strong acids and alkalis.
3. Excellent toughness, compressive strength, impact resistance from break.
4. Low wear consumption (ppm level), making it friendly to equipment.
Chemical composition of Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling polishing media:
|
Chemical |
Typical value(%) |
|
ZrO2 |
94.5% ±0.2 |
|
Y2O3 |
5.2%±0.5 |
Physical properties of Yttrium stabilized zirconium oxide beads 3mm Zirconia tumbling polishing media:
|
Vickers Hardness |
1200-1400 HV |
|
Crush Strength |
≥25 KN(6.5mm) |
|
Specific gravity |
6.0-6.08g/cm3 |
|
Bulk density |
3.6-3.8g/cm3 |
|
Abrasion |
<1 ppm/hrs |
|
Roundness |
≥95% |
Available sizes
|
0.05mm |
0.08-0.12mm |
0.1-0.2mm |
0.2-0.25mm |
0.25-0.3mm |
0.3-0.35mm |
|
0.35-0.4mm |
0.4-0.5mm |
0.5-0.6mm |
0.6-0.7mm |
0.7-0.8mm |
0.8-0.9mm |
|
0.9-1.0mm |
1.0-1.2mm |
1.2-1.4mm |
1.4-1.6mm |
1.6-1.8mm |
1.8-2.0mm |
|
2.0-2.2mm |
2.2-2.4mm |
2.4-2.6mm |
2.6-2.8mm |
2.8-3.0mm |
3.0-3.2mm |
|
3.8-4.0mm |
5mm |
6.5mm |
7mm |
8mm |
10mm |
|
12mm |
15mm |
17mm |
20mm |
25mm |
30mm |
1. Sintering isolation for Piezoelectric ceramics, index materials, capacitors ceramics, conductor ceramics, etc.
2. Grinding media for paint, pesticides, food, chemicals, electronic materials, rare earths, cosmetics, etc.
