Quick Details
-
Brand Name:
-
UM
-
Power (kW):
-
4
-
Weight (KG):
-
1500
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
PIPE
-
Oil press system:
-
Yuken Japan
-
Magnetic valve:
-
Schneider
-
System:
-
MITSUBISHI
-
Affter selll service:
-
Permament
-
Control system:
-
PLC
-
Product name:
-
Rotaty Pipe Bending Machine
-
Certification:
-
ce
Quick Details
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.01
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
UM
-
Power (kW):
-
4
-
Weight (KG):
-
1500
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
PIPE
-
Oil press system:
-
Yuken Japan
-
Magnetic valve:
-
Schneider
-
System:
-
MITSUBISHI
-
Affter selll service:
-
Permament
-
Control system:
-
PLC
-
Product name:
-
Rotaty Pipe Bending Machine
-
Certification:
-
ce
Techinical Parameter
|
Item
|
Name
|
Data
|
|
|
1
|
Max bending capacity
|
Φ38 mm×2 mm
|
|
|
2
|
Max bending radius
|
R200mm
Can according to customer’s requirement
|
|
|
3
|
Min bending radius
|
R18mm
|
|
|
4
|
Max feeding length
|
2500mm
Can according to customer’s requirement
|
|
|
5
|
Max bending degree
|
190 Degree
|
|
|
6
|
Control Panel
|
PC
(more advanced than PLC)
|
|
|
7
|
Touch Screen
|
Taiwan
Smart Face
|
|
|
8
|
Bending unit
|
16 Pieces
|
|
|
9
|
Working speed
|
Bending speed
|
150 Deg/sec
|
|
Rotary speed
|
200 Deg/sec
|
||
|
Feeding speed
|
1000 mm/sec
|
||
|
10
|
Accuracy
|
Feeding
|
±0.05 mm
|
|
Rotary
|
±0.05 Degree
|
||
|
Bending
|
±0.05 Degree
|
||
|
11
|
Rotary Pipe
|
By Servo Motor Power 0.75KW
Japan Mitsubishi
|
|
|
12
|
Data input
|
1.Coordinate ( X, Y, Z )
2.Working value ( Y, B, C )
|
|
|
13
|
Feeding Pipe
|
By
Servo Motor Power 1 KW
Japan Mitsubishi
|
|
|
14
|
Bending Pipe
|
By Hydraulic Valve
|
|
|
15
|
Oil motor power
|
4 Kw
|
|
|
16
|
Max storage units
|
1000 Group
|
|
|
17
|
Max pressure
|
12 MPa
|
|
|
18
|
Hydraulic control system
|
Magnetic exchange valve
Japan Yuken
|
|
|
19
|
Oil tank
|
300 L
|
|
|
20
|
Machine weight
|
1500 Kg
|
|
|
21
|
Machine size
|
3850×760×1200 mm
|
|
China Suppliers automatic Servo Rotary Pipe Bending Machine
Bending Sample
China Suppliers automatic Servo Rotary Pipe Bending Machine

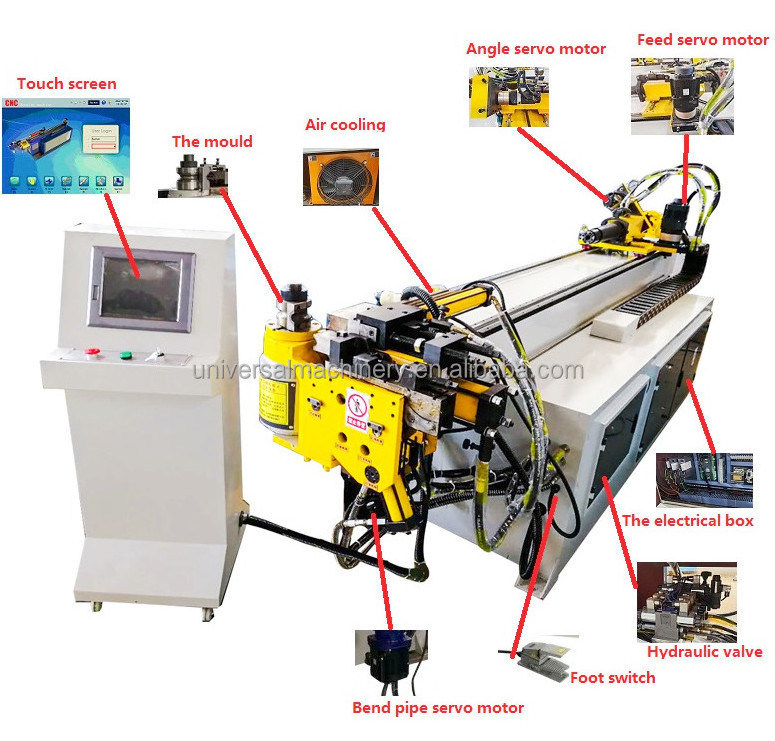

Main Component
China Suppliers automatic Servo Rotary Pipe Bending Machine
Work Shop
China Suppliers automatic Servo Rotary Pipe Bending Machine
Customer Inspection
Package
Loading
