Quick Details
-
Model Number:
-
AD-99D
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Amplifier
-
Certification:
-
ISO9001/CCC
-
Material:
-
Aluminium Alloy
-
Keyword:
-
HIFI amplifier
Quick Details
-
Type:
-
Home Amplifier
-
Channels:
-
2
-
Brand Name:
-
ToneWinner
-
Model Number:
-
AD-99D
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Amplifier
-
Certification:
-
ISO9001/CCC
-
Material:
-
Aluminium Alloy
-
Keyword:
-
HIFI amplifier
Product Description

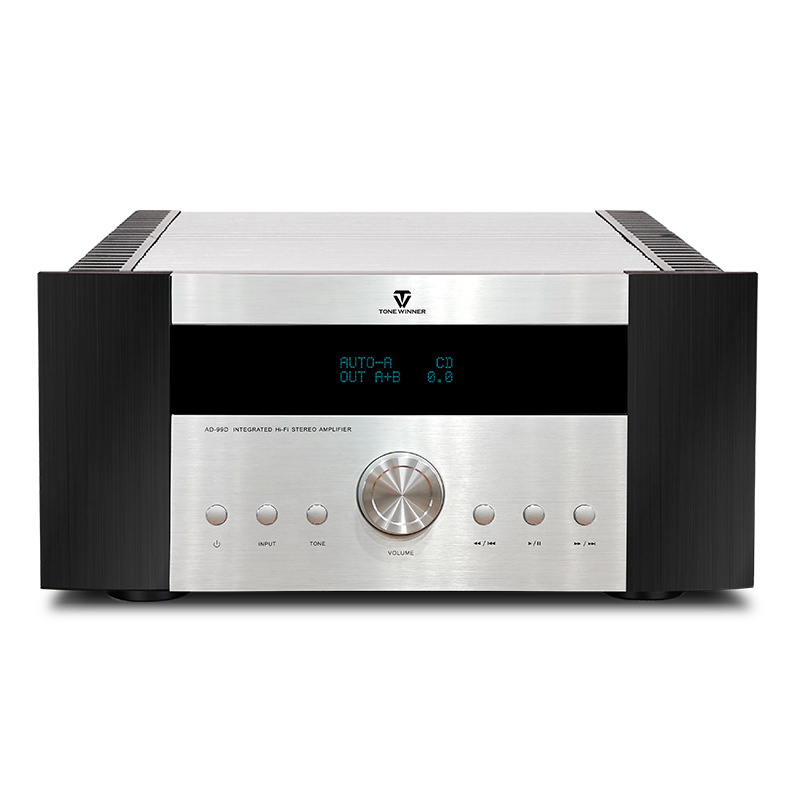

ToneWinner AD-99D stereo amplifier HIFI digital player amplifier with USB audio subwoofer power audio amplifier
Introduction
AD-99D is a Class A Hi-Fi integrated amplifier which supports 128G USB disk, TF card and lossless audio formats including WAV, FLAC, APE, etc. It also supports treble-bass independent adjustment, subwoofer output and original App control. As a top 10 audio brand in China, Tonewinner has 30+ years experience in designing and manufacturing acoustic products. As an original supplier, Tonewinner always warmly welcomes distributors, partners and customers around the world.
specifications
Internal Design
1. 550VA transformer to give 180W/8Ω strong power output.
2. 69,400μF high capacitance to give strong driving.
3. AD-1955 DAC decoding chip to support 192kHz/24bit sample rate and 120dB SNR.
4. Independent chamber to lower interference.
5. High quality transistor to bring high fidelity sound.
Main Features
1. Support PC USB-Audio, HDMI ARC, 3 way coaxial inputs, 1 way optical input, 3 way analog inputs and 1 way subwoofer output.
2. Support 128G USB disk & TF card and support APE, FLAC, WAV, MP3, WMA formats.
3. Support wireless Bluetooth with high speed and low latency.
4. Support HDMI ARC to connect to TV for rich sound.
5. Support original App control.
6. Support subwoofer output for 2.1 speaker layout.
7. Support treble and bass independent adjustment.
8. Support integrated amplifier and amplifier one-click switch.
9. Support trigger in/out for easy connection and smart synchronization.
Others
Application: living room, demo room, display room, etc.
Accessory: user manual, certificate of qualification, remote control and power lead.
1. 550VA transformer to give 180W/8Ω strong power output.
2. 69,400μF high capacitance to give strong driving.
3. AD-1955 DAC decoding chip to support 192kHz/24bit sample rate and 120dB SNR.
4. Independent chamber to lower interference.
5. High quality transistor to bring high fidelity sound.
Main Features
1. Support PC USB-Audio, HDMI ARC, 3 way coaxial inputs, 1 way optical input, 3 way analog inputs and 1 way subwoofer output.
2. Support 128G USB disk & TF card and support APE, FLAC, WAV, MP3, WMA formats.
3. Support wireless Bluetooth with high speed and low latency.
4. Support HDMI ARC to connect to TV for rich sound.
5. Support original App control.
6. Support subwoofer output for 2.1 speaker layout.
7. Support treble and bass independent adjustment.
8. Support integrated amplifier and amplifier one-click switch.
9. Support trigger in/out for easy connection and smart synchronization.
Others
Application: living room, demo room, display room, etc.
Accessory: user manual, certificate of qualification, remote control and power lead.
|
Model
|
AD-99D
|
THD
|
≤0.01%（1KHz，normal）
|
|
Channels
|
2
|
Rated impedance
|
4Ω~8Ω
|
|
SNR
|
≥100dB（A weight）
|
Frequency response
|
10Hz-90KHz（+1/-3dB）
|
|
Channel
separation
|
≥80dB
|
Gain
|
＞42dB
|
|
Power consumption
|
600W/8Ω
|
Output power /per channel
|
180W(8ohm,THD=1%,1KHz,direct mode）
|
|
Size
|
445×456×218mm
|
Package Size
|
550×550×318mm
|
|
G.W.
|
26.8KG
|
N.W.
|
24.1KG
|
