Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNSOAR
-
Copper Thickness:
-
0.5oz-5oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.1mm/4mi
-
Min. Line Spacing:
-
0.1mm/4mil
-
Surface Finishing:
-
HASL
-
Solder mask:
-
Black Green Blue
-
Condition:
-
New and original
-
Service:
-
One-stop Service
-
Shipment:
-
By FEDEX ,DHL or others
-
Type:
-
Customized
-
Application:
-
Electronics Device
-
Certificate:
-
ISO/RoHS
-
Packing:
-
Vaccum ,standard carton packing
-
Testing:
-
100% E-test
-
Product name:
-

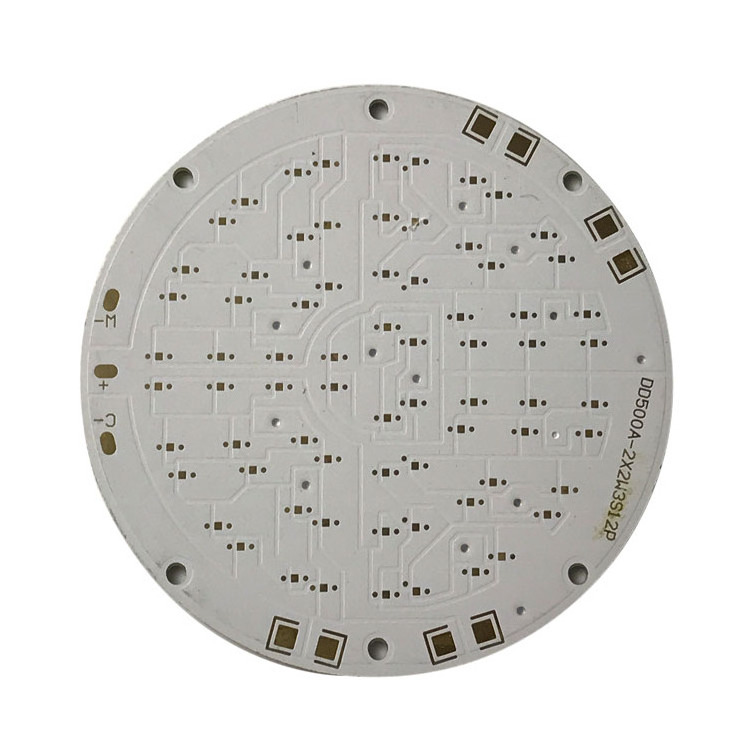

round led pcb
Quick Details
-
Base Material:
-
FR-4/aluminum/ceramic/cem-3/FR-1
-
Board Thickness:
-
0.2mm--3.2mm
-
Model Number:
-
20220927
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNSOAR
-
Copper Thickness:
-
0.5oz-5oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.1mm/4mi
-
Min. Line Spacing:
-
0.1mm/4mil
-
Surface Finishing:
-
HASL
-
Solder mask:
-
Black Green Blue
-
Condition:
-
New and original
-
Service:
-
One-stop Service
-
Shipment:
-
By FEDEX ,DHL or others
-
Type:
-
Customized
-
Application:
-
Electronics Device
-
Certificate:
-
ISO/RoHS
-
Packing:
-
Vaccum ,standard carton packing
-
Testing:
-
100% E-test
-
Product name:
-
round led pcb
PCB Datasheet
| SERIAL | ITEM | TECHNICAL DATA |
| 1 | Product Name | Low Cost Electronic SMD Board Circuit Round Led PCB |
| 2 | Brand | sunsoar |
| 3 | Layer | 1-24 layers |
| 4 | Max Board Size | 457x610mm |
| 5 | Min Board Thickness | 4(layers)0.40mm/16mil |
| 6(layers)0.80mm/32mil | ||
| 8(layers)1.00mm/40mil | ||
| 10(layers)1.20mm/48mil | ||
| 6 | Min Line Width1 | 0.10mm/4mil |
| 7 | MinLine Spacing | 0.10mm/4mil |
| 8 | Min Hole Size | 0.20mm/8mil |
| 9 | PTH Wall Thickness | 0.020mm/0.8mil |
| 10 | PTH dia tolerance | ±0.05mm/±2mil |
| 11 | NPTH hole dia tolerence | ±0.025mm/±1mil |
| 12 | Outline Tolence | ±0.1mm/±4mil |
| 13 | S/M Pitch | 0.08mm/3mil |
| 14 | Aspect ratio | 10:1 |
| 15 | PCB Wrap and Twist | ≤0.7% |
| 16 | Electric Strength | >1.3KV/mm |
| 17 | Peel Strength | 1.4N/mm |
| 18 | Solder Mask Abrasion | ≥6H |
| 19 | PCB Flammability | 94V-0 |
| 20 | Impedance Control | ±5% |
