Quick Details
-
Brand Name:
-
GHC
-
Model Number:
-
DW-580
-
Product name:
-
Black and white ultrasound
-
Display:
-
18 inch large LCD and touch screen
-
Scanning mode:
-
B, 2B, B/M, M, 4B, ZOOM
-
Multi-frequenc:
-
5 segment frequencies+THI for check
-
Probe Connector:
-
2
-
Standard Configuration:
-
Machine with Convex probe
-
Frequency:
-
3.5/5.0MHZ
-
Type:
-
Portable Ultrasonic Diagnostic Devices
-
Application:
-
GYN
-
Display mode:
-
B 2B 4B B/M
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangzhou, China
-
Brand Name:
-
GHC
-
Model Number:
-
DW-580
-
Product name:
-
Black and white ultrasound
-
Display:
-
18 inch large LCD and touch screen
-
Scanning mode:
-
B, 2B, B/M, M, 4B, ZOOM
-
Multi-frequenc:
-
5 segment frequencies+THI for check
-
Probe Connector:
-
2
-
Standard Configuration:
-
Machine with Convex probe
-
Frequency:
-
3.5/5.0MHZ
-
Type:
-
Portable Ultrasonic Diagnostic Devices
-
Application:
-
GYN
-
Display mode:
-
B 2B 4B B/M

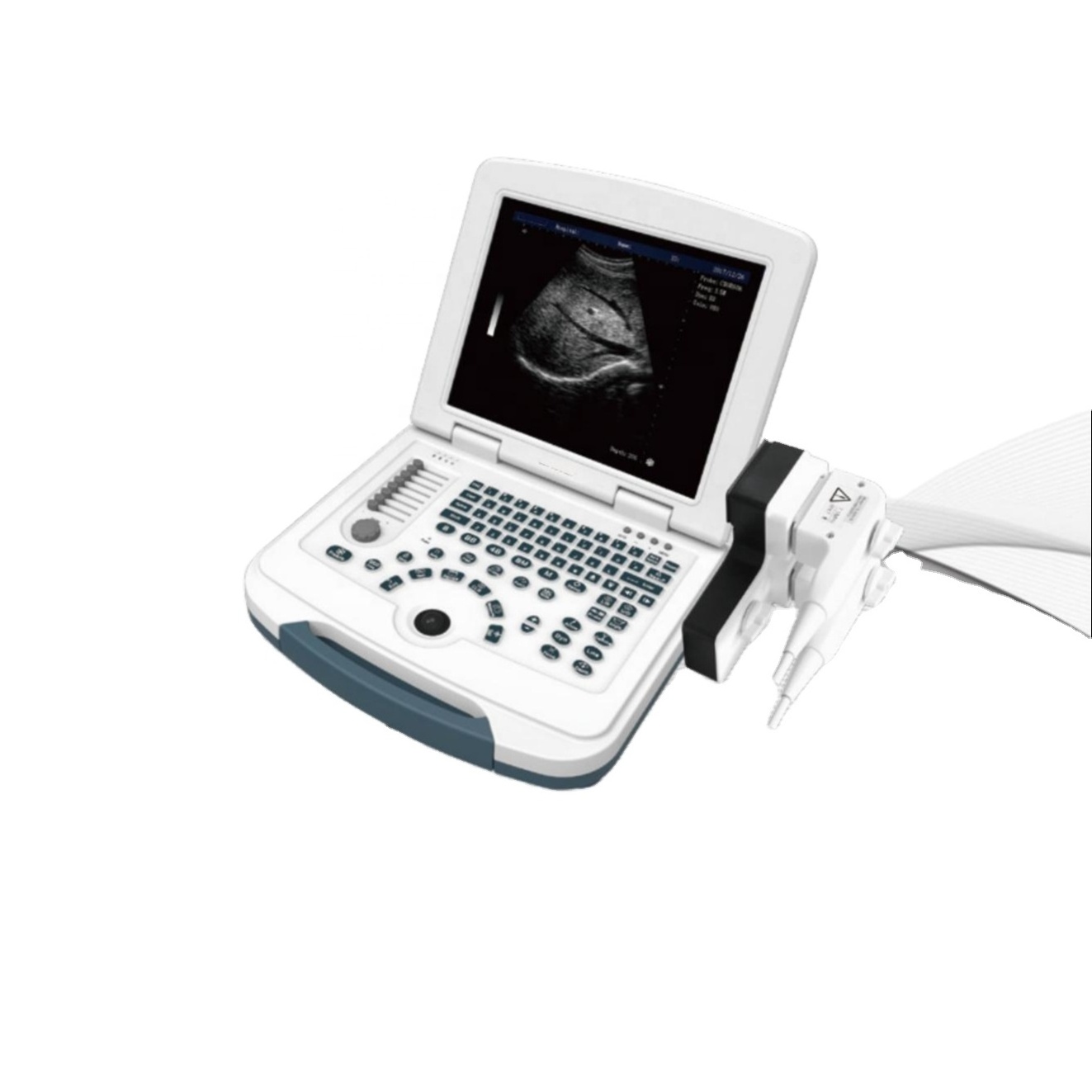

Powerful Function T Black And White Ultrasound Scanner With Convex Probe
Product Description
Specification:
-Monitor: 18.5 inch touch LCD screen
-D-Maximum Scanning Depth: 250mm
-Multi-frequency: 5 segment frequencies+THI for check
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0.
-Angle scanning: There are 25%, 30%, 35%…100% altogether16 angles for scanning
-Dynamic range: Continuous adjustable: 30~120dB, 16 levels in all.
-Contrast: 0-100 continuous adjustable
-Cine Loop: 64, 128, 256, 512, 1024frame, Auto/manual cine loop
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode
-Image direction: Up/down/left/right and polarity reversion
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Supported output apparatus: 3 USB connector for U-Disk, Laser/ink printer, mouse, keyboard; RJ-45 connector for internet and DICOM3.0
-Storage: Image storage, cine loop storage, measurement result and report can be stored, storage capacity 4G.
-Patient information management: Diagnosis case management, report print, comment library, image output(USB), import data.
-Marks: Comment, body mark(140 kinds for different parts' option), arrow.
-DICOM Real-time Ethernet transmission: This option allows real-time transmission by Ethernet. Ethernet-capable allows local and internet ultrasound data transmission.
-System preset: System preset includes parameter presets of abdominal , GYN, OB ，vascular, cardiac, small organs, andrology, urology, comments, manufacture default settings, system upgrade and maintenance settings.
-Probe Connector：2
-Dimension: 48*34*10cm
-Weight: Around 6.5kg
Standard Configuration:
-Ultrasound scanner host 1 unit
-Convex probe(R60, 3.5MHz) 1pcs
-Power adapter 1pcs
-Computer Keyboard and Mouse 1set
Optional:
-Linear, trans-vaginal, micro-convex, rectal probe
-Trolley with rocker arm
-USB laser/ink printer, video printer
-3D software
-Battery
-Monitor: 18.5 inch touch LCD screen
-D-Maximum Scanning Depth: 250mm
-Multi-frequency: 5 segment frequencies+THI for check
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0.
-Angle scanning: There are 25%, 30%, 35%…100% altogether16 angles for scanning
-Dynamic range: Continuous adjustable: 30~120dB, 16 levels in all.
-Contrast: 0-100 continuous adjustable
-Cine Loop: 64, 128, 256, 512, 1024frame, Auto/manual cine loop
-Scanning mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode
-Image direction: Up/down/left/right and polarity reversion
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Supported output apparatus: 3 USB connector for U-Disk, Laser/ink printer, mouse, keyboard; RJ-45 connector for internet and DICOM3.0
-Storage: Image storage, cine loop storage, measurement result and report can be stored, storage capacity 4G.
-Patient information management: Diagnosis case management, report print, comment library, image output(USB), import data.
-Marks: Comment, body mark(140 kinds for different parts' option), arrow.
-DICOM Real-time Ethernet transmission: This option allows real-time transmission by Ethernet. Ethernet-capable allows local and internet ultrasound data transmission.
-System preset: System preset includes parameter presets of abdominal , GYN, OB ，vascular, cardiac, small organs, andrology, urology, comments, manufacture default settings, system upgrade and maintenance settings.
-Probe Connector：2
-Dimension: 48*34*10cm
-Weight: Around 6.5kg
Standard Configuration:
-Ultrasound scanner host 1 unit
-Convex probe(R60, 3.5MHz) 1pcs
-Power adapter 1pcs
-Computer Keyboard and Mouse 1set
Optional:
-Linear, trans-vaginal, micro-convex, rectal probe
-Trolley with rocker arm
-USB laser/ink printer, video printer
-3D software
-Battery
