LC1D25M7 3P original TeSys Schneider telemecanique magnetic electric 220VAC 25A contactor

LC1D25M7 3P original TeSys Schneider telemecanique magnetic electric 220VAC 25A contactor

FOB Reference Price: Get Latest Price

≥5 Sets

US $26

≥16 Sets

US $25.5

≥160 Sets

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Main Circuit Rating Voltage:: <= 300 V DC for power circuit

Main Circuit Rating Current:: 25 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit

Place of Origin:: Indonesia

Brand Name:: Schneider

Model Number:: LC1D25M7

Key word:: original TeSys Schneider telemecanique magnetic electric ac contactor

Application:: Motor control and resistive load

Control circuit type:: AC 50/60 HZ

Type:: air magnetic electric ac contactor

Origin:: Indonesia

Range of product:: TeSys D

Power pole contact composition:: 3 NO

Product Name:: 3P Schneider telemecanique magnetic electric 220VAC 25A contactor

Quick Details

Electricity Type:: AC

Number of Pole:: 3

Phase:: 3

Main Circuit Rating Voltage:: <= 300 V DC for power circuit

Main Circuit Rating Current:: 25 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit

Place of Origin:: Indonesia

Brand Name:: Schneider

Model Number:: LC1D25M7

Key word:: original TeSys Schneider telemecanique magnetic electric ac contactor

Application:: Motor control and resistive load

Control circuit type:: AC 50/60 HZ

Type:: air magnetic electric ac contactor

Origin:: Indonesia

Range of product:: TeSys D

Power pole contact composition:: 3 NO

Product Name:: 3P Schneider telemecanique magnetic electric 220VAC 25A contactor

Product Description

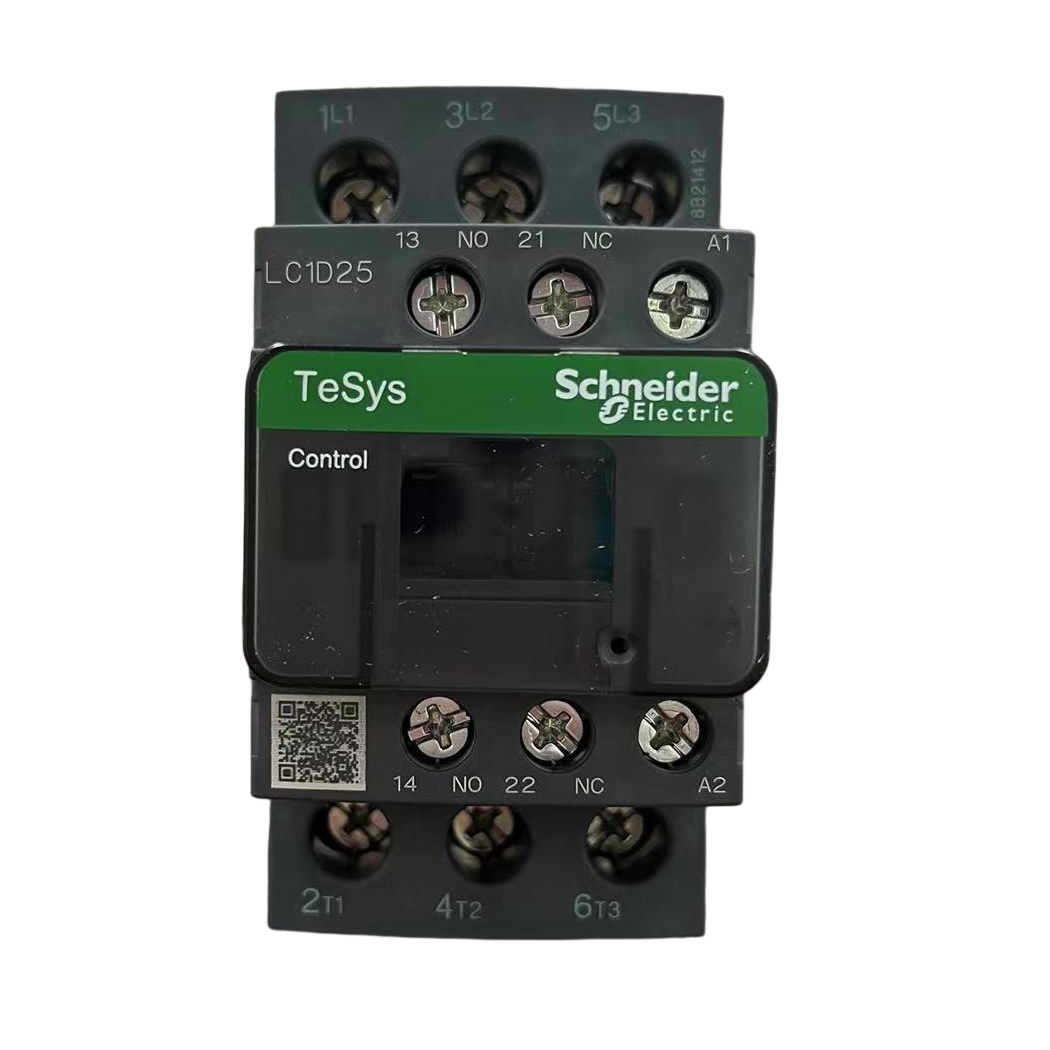

LC1D25M7 3P 25A 220V original TeSys Schneider telemecanique magnetic electric ac contactor

Characteristics LC1D25M7
Range of product	TeSys D
Product or component type	Contactor
Device short name	LC1D
Contactor application	Motor control
Contactor application	Resistive load
Utilisation category	AC-1
Utilisation category	AC-3
Poles description	3P
Power pole contact composition	3 NO
[Ue] rated operational voltage	<= 300 V DC for power circuit
[Ue] rated operational voltage	<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational current	25 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
[Ie] rated operational current	40 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
Motor power kW	15 kW at 660...690 V AC 50/60 Hz
	15 kW at 500 V AC 50/60 Hz
	11 kW at 415...440 V AC 50/60 Hz
	11 kW at 380...400 V AC 50/60 Hz
	5.5 kW at 220...230 V AC 50/60 Hz
Motor power HP (UL / CSA)	20 hp at 575/600 V AC 50/60 Hz for 3 phases motors
	15 hp at 460/480 V AC 50/60 Hz for 3 phases motors
	7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors
	5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
	3 hp at 230/240 V AC 50/60 Hz for 1 phase motors
	2 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type	AC 50/60 Hz
Control circuit voltage	220 V AC 50/60 Hz
Auxiliary contact composition	1 NO + 1 NC
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Overvoltage category	III
[Ith] conventional free air thermal current	40 A at <= 60 °C for power circuit
[Ith] conventional free air thermal current	10 A at <= 60 °C for signalling circuit
Irms rated making capacity	450 A at 440 V for power circuit conforming to IEC 60947
	250 A DC for signalling circuit conforming to IEC 60947-5-1
	140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity	450 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	120 A <= 40 °C 1 min power circuit
	50 A <= 40 °C 10 min power circuit
	380 A <= 40 °C 1 s power circuit
	240 A <= 40 °C 10 s power circuit
	140 A 100 ms signalling circuit
	120 A 500 ms signalling circuit
	100 A 1 s signalling circuit
Associated fuse rating	40 A gG at <= 690 V coordination type 2 for power circuit
	63 A gG at <= 690 V coordination type 1 for power circuit
	10 A gG for signalling circuit conforming to IEC 60947-5-1
Average impedance	2 mOhm at 50 Hz - Ith 40 A for power circuit
[Ui] rated insulation voltage	600 V for signalling circuit certifications UL
	600 V for signalling circuit certifications CSA
	690 V for signalling circuit conforming to IEC 60947-1
	600 V for power circuit certifications UL
	600 V for power circuit certifications CSA
	690 V for power circuit conforming to IEC 60947-4-1
Electrical durability	1.4 Mcycles 40 A AC-1 at Ue <= 440 V
Electrical durability	1.65 Mcycles 25 A AC-3 at Ue <= 440 V
Power dissipation per pole	1.25 W AC-3
Power dissipation per pole	3.2 W AC-1
Safety cover	With
Mounting support	Plate
Mounting support	Rail
Standards	EN 60947-4-1
	IEC 60947-5-1
	IEC 60947-4-1
	IEC 60947-5-1
	UL 508
	CSA C22.2 No 14
Product certifications	BV
	CCC
	CSA
	DNV
	GL
	GOST
	RINA
	UL
	LROS
Connections - terminals	Power circuit: screw clamp terminals 2 cable(s) 2.5...10 mm² - cable stiffness: solid - without cable end
	Power circuit: screw clamp terminals 1 cable(s) 1.5...10 mm² - cable stiffness: solid - without cable end
	Power circuit: screw clamp terminals 2 cable(s) 1.5...6 mm² - cable stiffness: flexible - with cable end
	Power circuit: screw clamp terminals 1 cable(s) 1...10 mm² - cable stiffness: flexible - with cable end
	Power circuit: screw clamp terminals 2 cable(s) 2.5...10 mm² - cable stiffness: flexible - without cable end
	Power circuit: screw clamp terminals 1 cable(s) 2.5...10 mm² - cable stiffness: flexible - without cable end
	Control circuit: screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
	Control circuit: screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
	Control circuit: screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable end
	Control circuit: screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - with cable end
	Control circuit: screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
	Control circuit: screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
Tightening torque	Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
	Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
	Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
	Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time	4...19 ms opening
Operating time	12...22 ms closing
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Mechanical durability	15 Mcycles
Operating rate	3600 cyc/h at <= 60 °C
