Quick Details
-
Dimensions(L*W*H):
-
2.3*1.86*2.145m
-
Weight:
-
1.8t
-
product name:
-
2 colors flexo printing machine
-
printing material:
-
film, paper, non-woven
-
color:
-
two colors
-
Model number:
-
YT series
-
Width of material:
-
600mm
-
Width of printing:
-
560mm
-
printing speed:
-
5-50m/min
-
total power:
-
8KW
-
advantage:
-
stable running, less noise, easy operation
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HAIXIN
-
Voltage:
-
380V(customized)
-
Dimensions(L*W*H):
-
2.3*1.86*2.145m
-
Weight:
-
1.8t
-
product name:
-
2 colors flexo printing machine
-
printing material:
-
film, paper, non-woven
-
color:
-
two colors
-
Model number:
-
YT series
-
Width of material:
-
600mm
-
Width of printing:
-
560mm
-
printing speed:
-
5-50m/min
-
total power:
-
8KW
-
advantage:
-
stable running, less noise, easy operation
-
Certification:
-
CE ISO

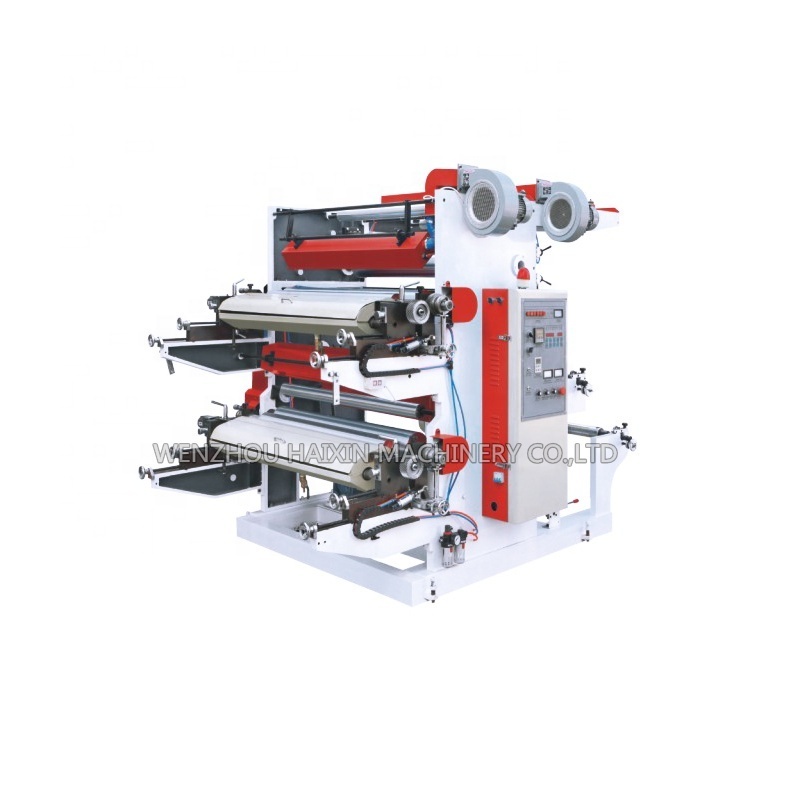

PP/PE 2 color plastic bag roll paper flexo printing machine price
YT Series Flexographic Printing Machine
Application
This machine, adopting photosensitive resin as printing plate, is commonly known as the flexographic printing machine. It is suitable for printing packing materials such as polyethylene, polypropylene bag, cellophane and roll paper, etc.
It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Performance and Features
1.Easy operation, flexible starting, accurate color register
2.The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off
3.Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting
4.The printing ink is spread by the anilox cylinder with even ink color
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops
6.360°continuous and adjustable longitudinal register device
7.The frequency control of motor speed adapts to different printing speeds
8.There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed
Main Technical Variables
|
Model |
YT-2600 |
||
|
Max. Web Width |
600mm |
800mm |
1000mm |
|
Max. Effective Printing Width |
560mm |
760mm |
960mm |
|
Range of Repeat Printing Length |
191~914mm |
191~914mm |
191~914mm |
|
Max. Diameter of Roll Material |
φ450mm |
φ450mm |
φ450mm |
|
Printing Speed |
5~50m/min |
5~50m/min |
5~50m/min |
|
Plate Thickness(Both side adhesive tape included) |
2.38mm |
2.38mm |
2.38mm |
|
Total Power |
8Kw |
10Kw |
12Kw |
|
Overall Dimension |
2300×1860×2145mm |
2300×2060×2145mm |
2300×2260×2145mm |
If you need more information, please contact us. We assure you reply the email within 24 hours.
1.We welcome the customers to visit the factory and we will pick you up.
2.Our machines use famous brand parts and test every part of the machine in the process of production.
3.Our engineers can install machines for you, and we can also train your employees until they can operate the machine independently. Of course, you can learn and install in our factory
4.We can provide a warranty of 14 months. If the machine has a non-human failure (except for vulnerable parts), we will provide you with a maintenance plan.
5.Welcome to send us an inquiry
