Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
red
-
Finish:
-
Zinc Plated
-
Wheel Dia:
-
100/125/150/200mm
-
Tread width:
-
50mm
-
Load Capacity:
-
200-400 kg per pc
-
Top plate size:
-
115x100mm
-
Hole center of plate:
-
72x85mm
-
Bearing:
-
roller bearing or double ball bearing
-
Product name:
-
heavy duty cast iron core caster wheels Pu wheel industrial caster
Quick Details
-
Material:
-
POLYURETHANE
-
Type:
-
Plate Casters
-
Model Number:
-
HPUI01
-
Place of Origin:
-
Guangdong, China
-
Color:
-
red
-
Finish:
-
Zinc Plated
-
Wheel Dia:
-
100/125/150/200mm
-
Tread width:
-
50mm
-
Load Capacity:
-
200-400 kg per pc
-
Top plate size:
-
115x100mm
-
Hole center of plate:
-
72x85mm
-
Bearing:
-
roller bearing or double ball bearing
-
Product name:
-
heavy duty cast iron core caster wheels Pu wheel industrial caster

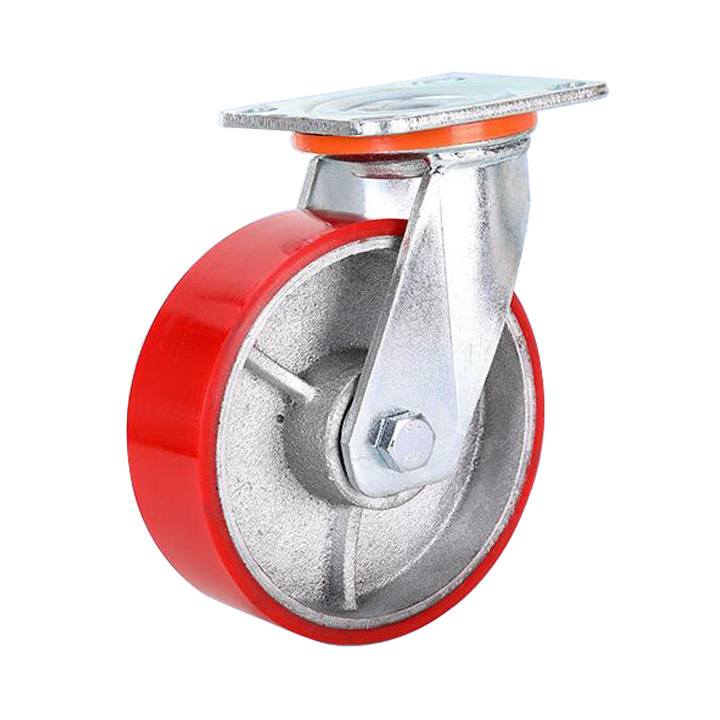

heavy duty cast iron core caster wheels Pu wheel industrial caster
Advantages of this caster:
1. Cast iron plate : fairly easy to put intsall
2. Ball trace head with seal : 360 degree rotating
3. Zinc plating steel frame : anti rust and support heavy load
4. Double ball bearings : bearings are fully sealed and will withstand high weight usage , rolling easily on various kinds of floors.
5. Iron hub : more stronger than plastic hub, load more
6. Pu tread : high wear and corrosion resistance, scratch resistant, non-marking and solid transport , rolls well.
7. Total brake : Quality brake activates and releases easily with a push down from your foot. Brakes engage/disengage easily and hold well.
Note: since this caster is iron core, can be rusted in humid environment.
Data sheet:
|
Diameter of wheel |
100mm/4'' |
125mm/5'' |
150mm/6'' |
200mm/8'' |
|
width of tread |
50mm |
50mm |
50mm |
50mm |
|
overall height |
135mm |
159mm |
189mm |
238mm |
|
plate size |
115*100mm |
115*100mm |
115*100mm |
115*100mm |
|
hole center of plate |
71x83mm |
71x83mm |
71x83mm |
71x83mm |
|
Load capacity |
250kg |
300kg |
350kg |
450kg |
