Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
30mm (acrylic)
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XM
-
Weight (KG):
-
500 KG
-
Core Components:
-
laser power
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Required
-
Certification:
-
ce
-
Resetting positioning accuracy:
-
<0.05mm
-
Minimum Shaping Character:
-
1*1mm
-
Workng Voltage:
-
220V/110V ±10%
-
Software supported:
-
CorelDraw,Photoshop,AutoCAD
-
Woektable:
-
honeycomb or aluminum
-
Controlconfiguration:
-
DSP
-
Up and down work table:
-
Up and down 550mm adjustable
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
5000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
30mm (acrylic)
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XM
-
Weight (KG):
-
500 KG
-
Core Components:
-
laser power
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Required
-
Certification:
-
ce
-
Resetting positioning accuracy:
-
<0.05mm
-
Minimum Shaping Character:
-
1*1mm
-
Workng Voltage:
-
220V/110V ±10%
-
Software supported:
-
CorelDraw,Photoshop,AutoCAD
-
Woektable:
-
honeycomb or aluminum
-
Controlconfiguration:
-
DSP
-
Up and down work table:
-
Up and down 550mm adjustable

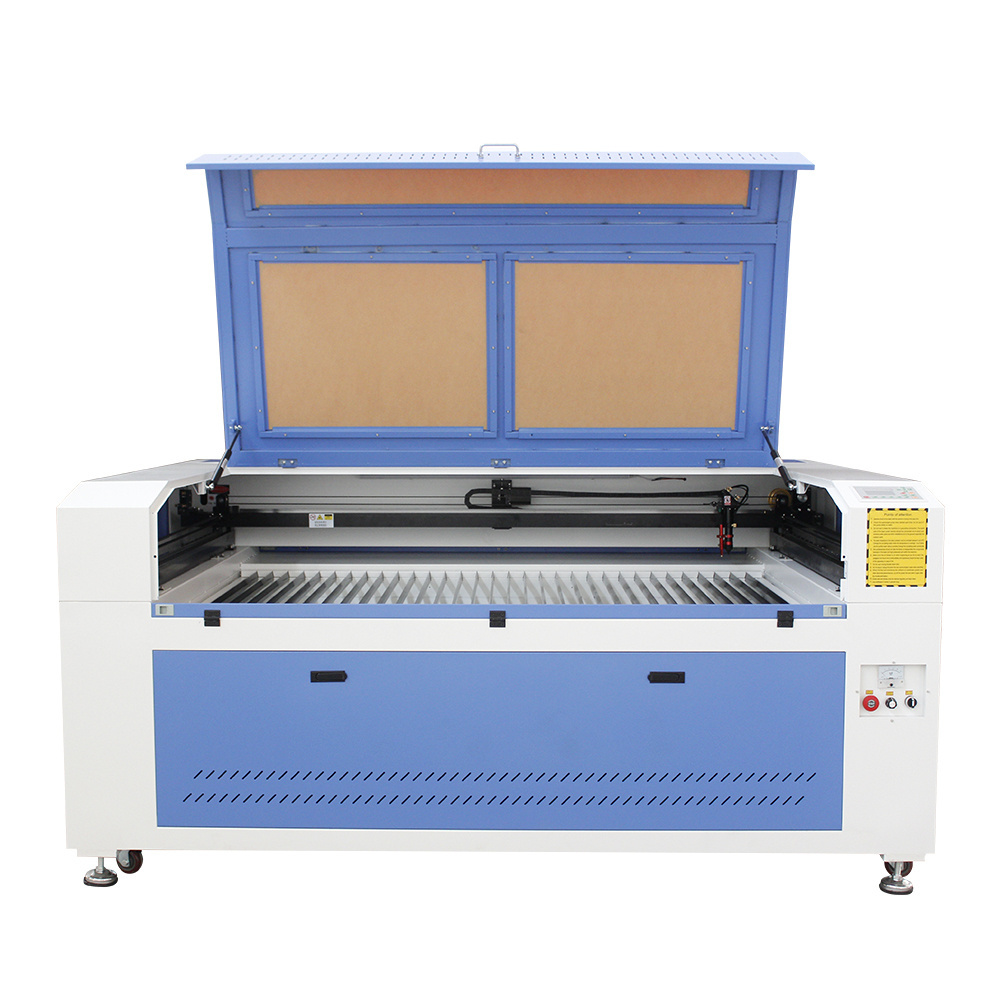

1610 CO2 LASER CUTTING MACHINE
Products Description
Product Paramenters
|
Model
|
XM-1610 laser cutting machine
|
|
|
||
|
Engraving area
|
1600x1000mm
|
|
|
||
|
Laser power
|
60w/80w/100w/150w/180w/300w/600w
|
|
|
||
|
Laser Type
|
Sealed CO2 Glass Laser Tube
|
|
|
||
|
Engraving speed
|
0~1500mm/s
|
|
|
||
|
Cutting speed
|
0~400mm/s
|
|
|
||
|
Resetting positioning accuracy
|
<0.05mm
|
|
|
||
|
Cutting depth
|
0-20mm(Cutting depths depends on materals)
|
|
|
||
|
Minimum Shaping Character
|
1x1mm
|
|
|
||
|
Workng Voltage
|
220V/110V ±10% Single Phase
|
|
|
||
|
Machine whole power
|
2500W
|
|
|
||
|
Control system
|
Ruida(U disk, offiline support)
|
|
|
||
|
Software supported
|
LightBurn, CorelDraw,Photoshop,AutoCAD
|
|
|
||
|
Graphic format supported
|
PLT,DXF,BMP,JPG,GIF,PGN,TIF
|
|
|
||
|
Engraver for Curve surfaces (Yes/No)
|
Rotary Device Required (Options)
|
|
|
||
|
Water Cooling(Yes/No)
|
Yes
|
|
|
||
|
Laser Tube (life hours)
|
8,000-10,000 hours
|
|
|
||
|
Assistant Equipment
|
Water Chiller
|
Exhaust Fan
|
Air Pump
|
||
Product Acessories
Application
Product packaging
Certifications
FAQ
1.How can Ichoose the most suitable machine?
Please tell us three questions, our customer service staff will recommend the most suitable product for you.
1) which material is mainly used for? Cutting, engraving or marking?
2) whatis the max thickness of the cut?
3)How big working area you need?
2.How long can deliver the machine?
Common machine can be delivered within 3~7 days.Custom-made machine needs 12~14 days.
3.Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support toour customers.
Our technicians can assist you to install the machine and give you free trainingafter you receive machine.
1) which material is mainly used for? Cutting, engraving or marking?
2) whatis the max thickness of the cut?
3)How big working area you need?
2.How long can deliver the machine?
Common machine can be delivered within 3~7 days.Custom-made machine needs 12~14 days.
3.Is there any after-sales service?
Yes, we have a perfect after-sale service team to supply technical support toour customers.
Our technicians can assist you to install the machine and give you free trainingafter you receive machine.
