Bottom one is " 9 holes " with new mould .
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Cold Rolled Steel, Cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Racer
-
Model Number:
-
FSB508-1710
-
Usage:
-
Drawer
-
Finish:
-
Zinc plated
-
Thickness:
-
1.0mm
-
Length:
-
246MM
-
Width:
-
17mm
Quick Details
-
Application:
-
Kitchen, Home Office, Living Room
-
Design Style:
-
Modern
-
Type:
-
Two way travel, two way travel
-
Material:
-
Cold Rolled Steel, Cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Racer
-
Model Number:
-
FSB508-1710
-
Usage:
-
Drawer
-
Finish:
-
Zinc plated
-
Thickness:
-
1.0mm
-
Length:
-
246MM
-
Width:
-
17mm
Product Description
|
Name
|
17mm two way travel mini telescopic channel
|
|
Item No.
|
FSB508-1710-246
|
|
Application
|
Drawer
|
|
Material
|
Cold-rolled Steel
|
|
Finish
|
Zinc plated finish (Galvanized plated ,no finish is also available at lower price )
|
|
Thickness
|
1.0mm
|
|
Length
|
L=246MM/10"/250MM ( Other size like L=182MM/8", L=304MM/12"/300MM,L=342MM/14"/350MM,L=406MM/16"/400MM,
L=438MM/18"/450MM,L=470MM/20"/500MM etc are all available )
|
|
Width
|
17mm(27mm one or two ways, 35mm one way , 40mm, 42mm&45mm are all available)
|
|
Packing
|
100 pairs/ bag /ctn
|
|
Ctn size
|
25*25.5*11cm (for W=17mm L=246mm)
|

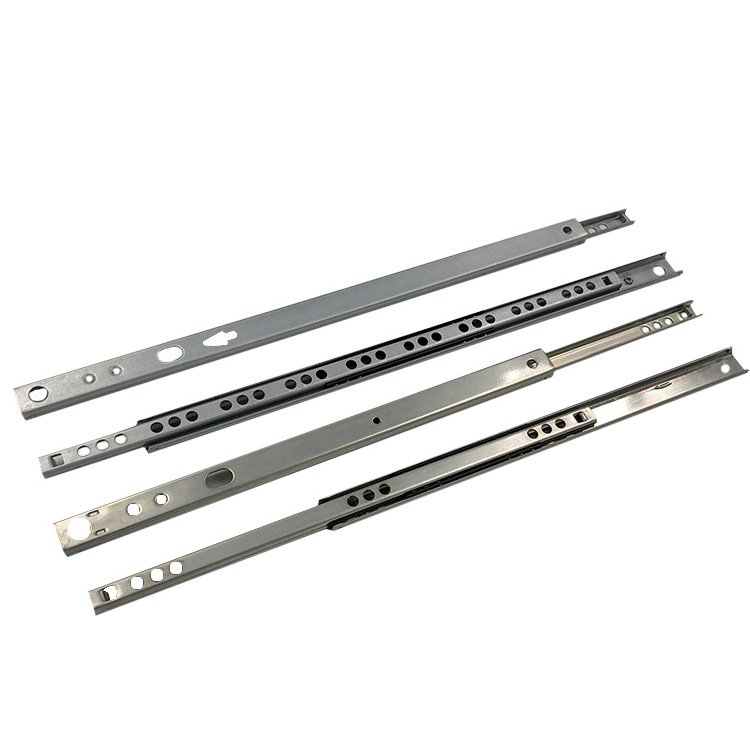

Two types of holes
We have two moulds for this 17mm mini slides .Top one is common type with many holes on the slides
Iron with zinc plated finish
This product's link is for "iron slides with zinc plated finish"
Looks shiny and nicer,but costs more
Galvanized plated ,no further finish
Galvanized plate slides is cheaper and much fast delivery
Full thickness of 1.0mm
Thickness for slides are full 1.0mm to assure the qualitly .
88g/pc for length 246mm slides
17mm two way travel
The products' link is for 17mm slides
Two way travel,two sections .
Iron with zinc plated finish
Bigger width available
Bigger width like 27mm,35mm,40mm
42mm and 45mm are all available
Stainless Steel available
45mm Stainless steel slides is also
available
Various lengths for choices
Length is 246MM/10"/250MM .
Other size like L=182MM/8",L=304MM/12"/300MM,L=342MM/14"/350MM,L=406MM/16"/400MM, L=438MM/18"/450MM,L=470MM/20"/500MM etc are all available
Other size like L=182MM/8",L=304MM/12"/300MM,L=342MM/14"/350MM,L=406MM/16"/400MM, L=438MM/18"/450MM,L=470MM/20"/500MM etc are all available
Two types of cages
Common cage is black plastic .But steel cage is also available with MOQ under higher price
