Small ATV Farm hydraulic 6 ton hook lift tipper dump trailer / container carrier lifter for tractor

FOB Reference Price: Get Latest Price

≥1 Sets

US $6960

Free Inquiry

Customized Request

Quick Details

Product Description

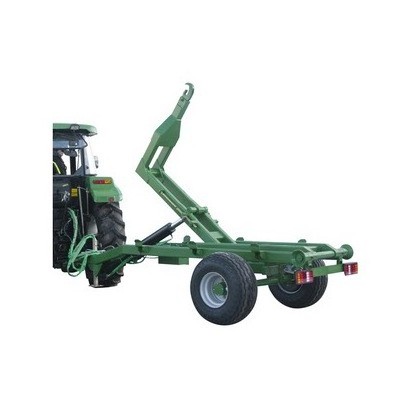

Strong , Stable , Compact hook lift trailer

RIMA HT06 / HT10 trailer is designed for efficiency . One trailer unit can be used to carry out a multiple tasks by attaching different bodies .

From a muck spreader to a water bowser , a timber forwarder to a low loader , a grain body to a dump body etc

You can attach whatever body you require , as and when you need it .

That saves your money , labour , fuel and time . Such versatility can cut your trailer expenses by more than two thrids .

Specification

Model	HT06T	HT10T
C apacity (max)	6000kg	10000 kg
Max vehicle weight (with load and full equipment)	8200kg	1 3000kg
T railer weight (the chassis)	1500kg	2050kg
Tr ailer weight with container	2200kg	3000kg
H itch stress: - trailer only - trailer with empty container - trailer with full load	575KN 787KN 2095KN	727 KN 1151 KN 2573 KN
T railer dimensions – the chassis: L eng th W idth across wheels H eight: without container	4900mm 2000mm 1980mm	5 6 00 mm 2 2 00 mm 2180mm
Tyre s (forest)	400/60-15.5	400/60-15.5
W heel quantity	2pcs	4 pcs
D rive system	tractor	tractor
W heel track	1520mm	1650mm
B rake	two	Four
M ax speed	30-40km/h	30- 40 km/h
T ractor- power	60-80HP	80 -100HP
H ydraulic pressure required	16-30MPa	16 -30MPa
H ydraulic oil	6L	8 L
