XXWP-B18 jewelry polishing machine precision finishing centrifugal disc machine

XXWP-B18 jewelry polishing machine precision finishing centrifugal disc machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $2750

≥2 Sets

US $2700

≥4 Sets

US $2650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Jewelry work pieces surface polishing

Name:: Centrifugal polishing grinding machine

VOLTAGE:: 220-440V

Color:: White

Capacity:: 18L

Certification:: CE ISO

Dimension:: 750*770*1420mm

Delievery:: 15 days

MOQ:: 1 SET

Barrel Size:: 330*260mm

Quick Details

Brand Name:: Xingxing

Place of Origin:: Zhejiang, China

Model Number:: XXWP-B18

Application:: Jewelry work pieces surface polishing

Name:: Centrifugal polishing grinding machine

VOLTAGE:: 220-440V

Color:: White

Capacity:: 18L

Certification:: CE ISO

Dimension:: 750*770*1420mm

Delievery:: 15 days

MOQ:: 1 SET

Barrel Size:: 330*260mm

Product Description

The centrifugal disc process is a high – energy mass finishing process. Adoption of centrifugal force theory to process the
workparts with improved efficiency of 15-30 times, Adjustable running speed of bottom disc, workparts can be randomly checked in the mass finishing process. Fixed upper barrel wall lined with good quality PU, it enjoys the better wear and long life cycle.

SPECIFICATIONS FOR CENTRIFUGAL DISC POLISHING MACHINE
Vibratory Finishing Machine	Machine Type	XXWP-B18	SET
		Motor	0.75	KW
		Barrel Speed(adjustable)	0-417	RPM
Main parameters	Machine Size	7507401420	MM
		Process Vessel Volume (L)	18	L
		Process Vessel Volume (L)	18	L
Other information	Lining	PU lining	PU
		Lining thickness	25	MM
		Voltage	220V-440V	3 Phase

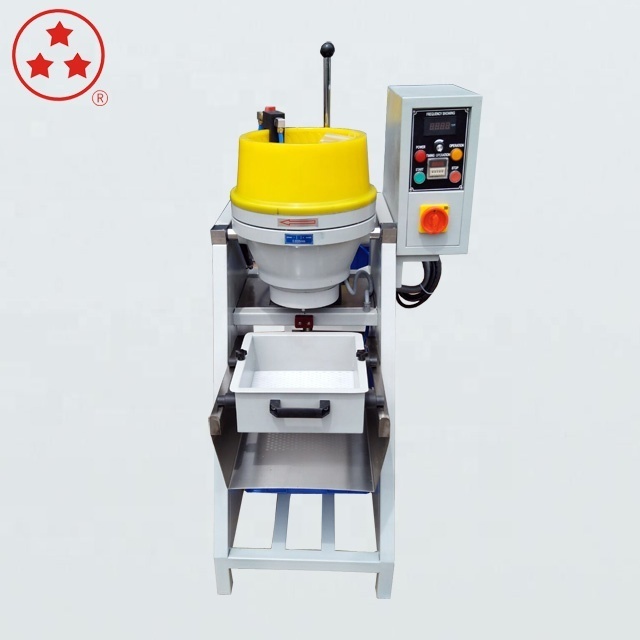

Detailed Images

Product Application & Features

This type of machine is used for grinding, de-burring, chamfering and polishing all kinds of metal stamping parts, metal castings, rigid plastic, etc. And the grinding machines are applied into the industries of horologe, eyeglass, lock manufacturing, ornaments & jewellery, electronics, art ware, machinery and hardware, etc.

Name: centrifugal disc machine

Brand: Xingxing

Original: Zhejiang, China

1. CE certified vibratory finishing machine.
2. The XXWP-B18 centrifugal disc machine type above is 18L capacity in total, working capacity is 12L.
3. Motor: 0.75KW, Taiwan brand, CE.
4.. Motor speed 1400RPM, barrel speed(bottom disc speed) 0-417 RPM adjustable.

5.The gap between the barrel wall and the bottom disc can reach 0.1mm.
6. The barrel can be tilted down with the barrel side handbar.
7. Powder coating type painting, Not easy to be scratched off paint.

Name: The control of centrifugal machine

barand: xingxing

Original: Zhejiang, China

1.inverter control box, with timer, start, stop and speed control.

2. Safe DC24V control voltage for panel buttons.
3. Breaker for protection of motor and safe operation.

4 .Automatic water recycling device

Name : The barrel of centrifugal machine
Brand : Xingxing
Original : Zhejiang, China

1. Process containers with hot molded PU lining,quality is reliable.

2.. High quality gap adjusting system.

3. The bearing selects the wear resistant ceramic/tungsten alloy ring

4. small gap (about 0.05-0.1mm) design. Can polish very thin parts like earring and pendants. This user-friendly feature made it possible to polish complicated and thin workpiece.

Related Products

Packing&Shipping

Packing: wooden case

Suitable for sea shipping

Certifications

Xingxing service

Trail Test Service

Xingxing Abrasive will process samples parts from customers and recommend the proper equipment all at no charge to customers.Just send us samples with an explanation of your desired finish and we will process them in our lab,then send back samples within 3 working days.You will see the way our machines handle deburring ang polishing process!If you are satisfied with the finishing effect,we will trial test the samples parts till your confirmation.

After sale Service.

1. Provide user tracking service to record users' problems at any time and solve them as soon as possible. After the completion of the order, users will be checked irregularly. 2. Regularly introduce new products and new functions and technologies to users.

Company Introduction

FAQ:

Q:How is Xingxing brand? Xingxing Abrasive is the leading manufacturer of mass finishing machinery and consumable medias in China. - Provincial High-Tech enterprise - More than 24 years of expertise in this field. - 21000 square meters of factory area size. -7250 tons/year of consumable medias production output -1030 sets/year of mass finishing machinery production output Q: How far is it from Shanghai or Hangzhou? - Close to Shanghai, 2.5-3 hours of ride. - Close to Hangzhou, 1 hour ride. Q: What Certifications do you have? ISO9001, ISO140001,CE, SGS(Rohs) certifications etc. Q: What is machinery and consumble medias warranty? - 2 year warranty for standard machinery. - 1 year warranty for customized equipment. - Consumble medias warranty as standard international brand media for quality lifetime consideration. Q: What service we can offer? - OEM/ODM product Manufacturing service. - Trial test service, and professional advice for specific workparts surface finishing needs. - Inquiry replied within 8 hours. - Aftersales service starts from delivery stage, receiving stage, standard operation guide, problem shooting & fixing, regular maintenance guide, spare parts providing, Machine lifetime maintenance service. - Sample available for consumable medias. Q: How you guarantee consumable (tumbling) media quality? - Mature consumable media formula, highly acknowledged by overseas customers for more than 15 years. - From raw material QC check to final products check before delivery. - Extremely test conditioned for final products of every batch, and file data kept for monitoring. - The test method is similar to Japan and USA standards. - If quality test result doesn’t meet customer’s standard, we will do the internal rejection and remaking step scheduled as priority. Q: How you guarantee the mass finishing machinery quality? -From raw material QC check to final products check before delivery. -Standard machinery, we do the extremely test conditioned running for 24 hours continuously. - OEM machinery, test method instructed by customers. - ODM machinery, test method instructed by customers. Q: What is your international term? - CIF destination port or location of customer side. - FOB Shanghai/Ningbo - EXW/FCA Q: What is your Payment method? - T/T (Bank transfer) payment，as prepayment rate discussed. - For bulk order, we can accept L/C at sight. Q: What is your Minimum order amount? - MOQ for machinery is 1 set. - MOQ for consumble media is 500kg as one wooden pallet. Q: What is your way of packaging? - Fumigation wooden pallets for medias, 1000kg per pallet, 25kg/plastic bag. - Fumigation wooden case for mass finishing machinery. Q: How long is your production time? - Generally, it will take 5-40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. - 5 working days for stock available machine and medias. - 25-30 days for machinery. - 25 days for customized medias. - 30-40 days for ODM machine or customized machinery, not including the automatic surface finishing system. Q: What is the nearest Port? Shipping methods? - Sea port: Shanghai, Ningbo. - Railway departure station: Suzhou, Shanghai, Yiwu. - Airport departure station: Shanghai. - Express: Fedex, or other international courier service available.

Please contact us!
