Quick Details
-
Type:
-
Upper Cistern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JIELIN
-
Model Number:
-
T1101+T0206
-
Fill valve type:
-
Bottom inlet
-
Fill valve Thread/Shank:
-
G1/2",15/16", 3/8"
-
Water Pressure:
-
1.5~240 P.S.I ( 0.1~16 Bar)
-
Adjustable height:
-
7.5-11.5 Inch
-
Flush valve outlet:
-
2 inch
-
control model:
-
button control
-
Flush type:
-
Dual flush
-
Package:
-
Clear PE bag+outside carton/customize
-
Lead time:
-
10~20days
-
Product Name:
-
Concealed Cistern Water Tank
Quick Details
-
Project Solution Capability:
-
NONE
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Type:
-
Upper Cistern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JIELIN
-
Model Number:
-
T1101+T0206
-
Fill valve type:
-
Bottom inlet
-
Fill valve Thread/Shank:
-
G1/2",15/16", 3/8"
-
Water Pressure:
-
1.5~240 P.S.I ( 0.1~16 Bar)
-
Adjustable height:
-
7.5-11.5 Inch
-
Flush valve outlet:
-
2 inch
-
control model:
-
button control
-
Flush type:
-
Dual flush
-
Package:
-
Clear PE bag+outside carton/customize
-
Lead time:
-
10~20days
-
Product Name:
-
Concealed Cistern Water Tank

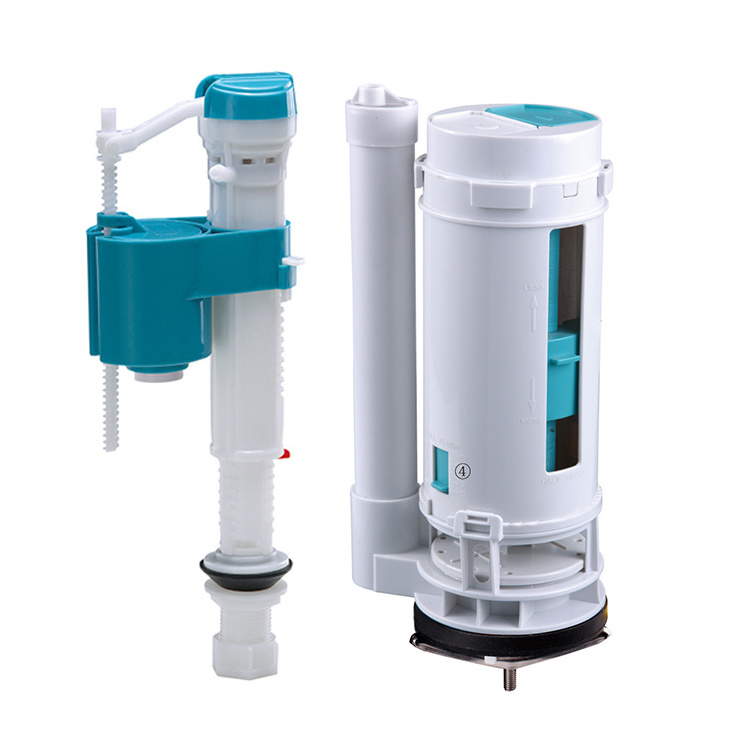

Toilet tank fitting, Dual flush valve
I .Flush Volume
Half flush volume and full flush volume adjustable
II. Advantage
Silicon seal,free from leakage,rotprofness,insensitive against dirt,long life time
III . Style
For one piece toilet(T0208LG-260)and two piece toilet(T0208FG-260)
IV.Main body height
260mm(180mm,220mm,300mm optional)
V.Overflow pipe
Fixed and adjustable pipe optional
VI.Parts details
|
Product Name: |
Toilet flush valve tank fitting |
|
Item No.: |
T1101+T0206 |
|
Height: |
flush valve:18cm;22cm,26cm |
|
Adaptable to tanks with height: |
210-400 mm |
|
Fill vavle Connector(optional): |
3/8”POM, 3/8”POM Brass ,G1/2" POM, G1/2" Brass, |
|
Outlet diameter: |
2 inch |
|
Flush speed: |
2.5 L/s |
|
Half flush: |
≥80 mm and adjustable |
|
Full flush: |
40-65 cm |
|
Fill valve water level: |
140-210 mm |
|
Toilet configuration: |
One piece / Two piece |
|
Refill adjustable: |
0-30% refilling rate |
|
Certification: |
UPC/CUPC, CE, WRAS |
|
Warranty: |
3 years |
