Quick Details
-
Table Travel (Z) (mm):
-
600 mm
-
Travel (W-axis) (mm):
-
600 mm
-
Positioning Accuracy (X axis) mm:
-
±0.025
-
Positioning Accuracy (Y axis) mm:
-
±0.025
-
Positioning Accuracy (Z axis) mm:
-
±0.025
-
Range of Spindle Speed(r.p.m):
-
240 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
High
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
270x160x 210CM
-
Weight (T):
-
5 T
-
Working table size (L*W):
-
800x700mm
-
Spindle bore:
-
85mm
-
Weight:
-
5000kg
-
Motor Power (kw):
-
7.5KW
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Spare parts
Quick Details
-
Table Size (mm):
-
1140x1000
-
Table Travel (X) (mm):
-
1140 mm
-
Table Travel (Y) (mm):
-
1000 mm
-
Table Travel (Z) (mm):
-
600 mm
-
Travel (W-axis) (mm):
-
600 mm
-
Positioning Accuracy (X axis) mm:
-
±0.025
-
Positioning Accuracy (Y axis) mm:
-
±0.025
-
Positioning Accuracy (Z axis) mm:
-
±0.025
-
Range of Spindle Speed(r.p.m):
-
240 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
High
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Wadley
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
270x160x 210CM
-
Weight (T):
-
5 T
-
Working table size (L*W):
-
800x700mm
-
Spindle bore:
-
85mm
-
Weight:
-
5000kg
-
Motor Power (kw):
-
7.5KW
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Spare parts

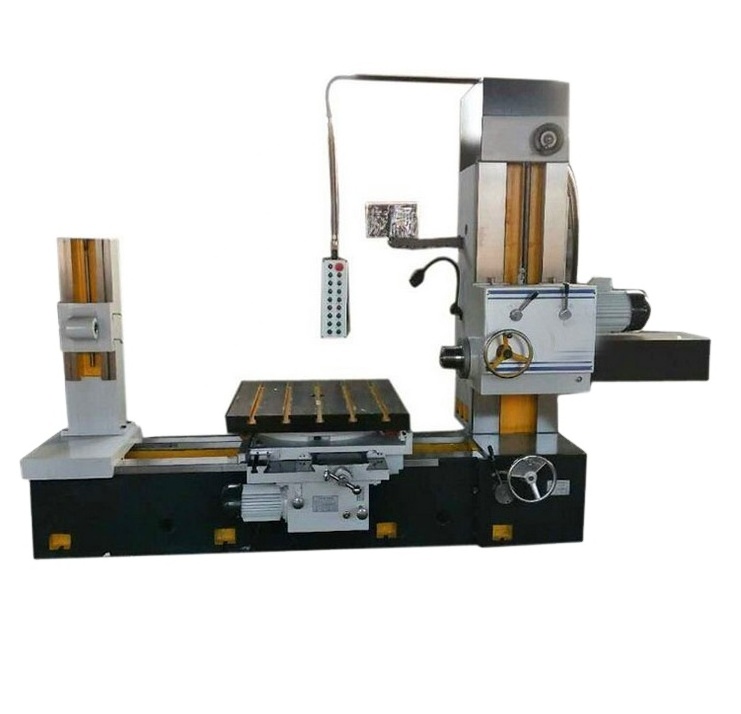

TPX 6111 China Conventional Milling Boring Machine Line Boring Machine for Sale
Product Description
Features:
- Table-type layout; column mounted on the bed; cross structure of saddle guideway;
- Compact and rigidity structure;
- Newall DRO;
- Various options are available to enlarge the machining range.
- The spindle can realize powerful cutting with high efficiency . TPX61 series of boring milling machine is mainly This model of boring milling machine is used to drilling, encountering, reaming, spotting plane, thread turning, cylindrical turning, as well as boring and milling of larger bores. This kind of machine is suitable to national defense, mine, metallurgy and machinery industry.
| Item | TPX6111 |
| Spindle diameter | 110 |
| Spindle taper | Morse 6 |
| Max. spindle torque | 1225N.m |
| Max. spindle thrust | 12250N |
| Number of spindle speed | 22 |
| Range of spindle speed | 8-1000rpm |
| Power of main motor | 7.5kW |
| Max. facing head torque | 1960N.m |
| Facing head diameter | 600mm |
| Range of facing head speed | 4-200rpm |
| Number of facing head speed | 18 |
| Table working surface (LxW) | 1100x960mm |
| Max. permissible load on table | 2500kg |
| T-slot | 22 |
| Number of T-slot | 7 |
| X-axis travel | 1250mm |
| Y-axis travel | 900mm |
| Z axis travel | 1000mm |
| W-axis travel (Spindle travel) | 600mm |
| U-axis travel (Facing slide travel) | 180mm |
| B-axis worktable rotary ° | 360mm |
| Min. distance between spindle axis and table surface | 0 |
| Rapid travel (X/Y/Z/W) | 2500 |
| Rang of axes speed per spindle revolution (X/Y/Z/W) | 0.04-6/0.01-1.88mm/rev. |
|
Measurement system reading precision
(X/Y/Z) (Z-axis measurement optional) |
0.01mm |
| Net weight of machine | 13500kg |
