Quick Details
-
Brand Name:
-
DC
-
Model Number:
-
DC-VT400
-
Temperature:
-
-12 degree Celsius
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a
-
Feature:
-
Slant Ice Storage freezer
-
Usage:
-
Ice Storage Freezer for bagged Ice Storage
-
Ice Storage Freezer inner capacity:
-
can hold 125 bags 8lbs bagged ice
-
compressor brand:
-
Aspera/Embraco
-
cooling system:
-
Air cooling system (Automatic defrost)
-
Ice Storage Freezer sheet option:
-
painted galvanized steel / stainless steel
-
Ice Storage Freezer door size:
-
Embossing aluminum solid door (685*685mm)
-
Logo sticker:
-
According to clients' requirement
-
warranty:
-
12 months
-
voltage option:
-
220V/50HZ (60HZ) or 110V/60HZ
Quick Details
-
Style:
-
Single-Temperature
-
Capacity:
-
400 Liters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DC
-
Model Number:
-
DC-VT400
-
Temperature:
-
-12 degree Celsius
-
Climate Type:
-
N-ST
-
Refrigerant:
-
R404a
-
Feature:
-
Slant Ice Storage freezer
-
Usage:
-
Ice Storage Freezer for bagged Ice Storage
-
Ice Storage Freezer inner capacity:
-
can hold 125 bags 8lbs bagged ice
-
compressor brand:
-
Aspera/Embraco
-
cooling system:
-
Air cooling system (Automatic defrost)
-
Ice Storage Freezer sheet option:
-
painted galvanized steel / stainless steel
-
Ice Storage Freezer door size:
-
Embossing aluminum solid door (685*685mm)
-
Logo sticker:
-
According to clients' requirement
-
warranty:
-
12 months
-
voltage option:
-
220V/50HZ (60HZ) or 110V/60HZ

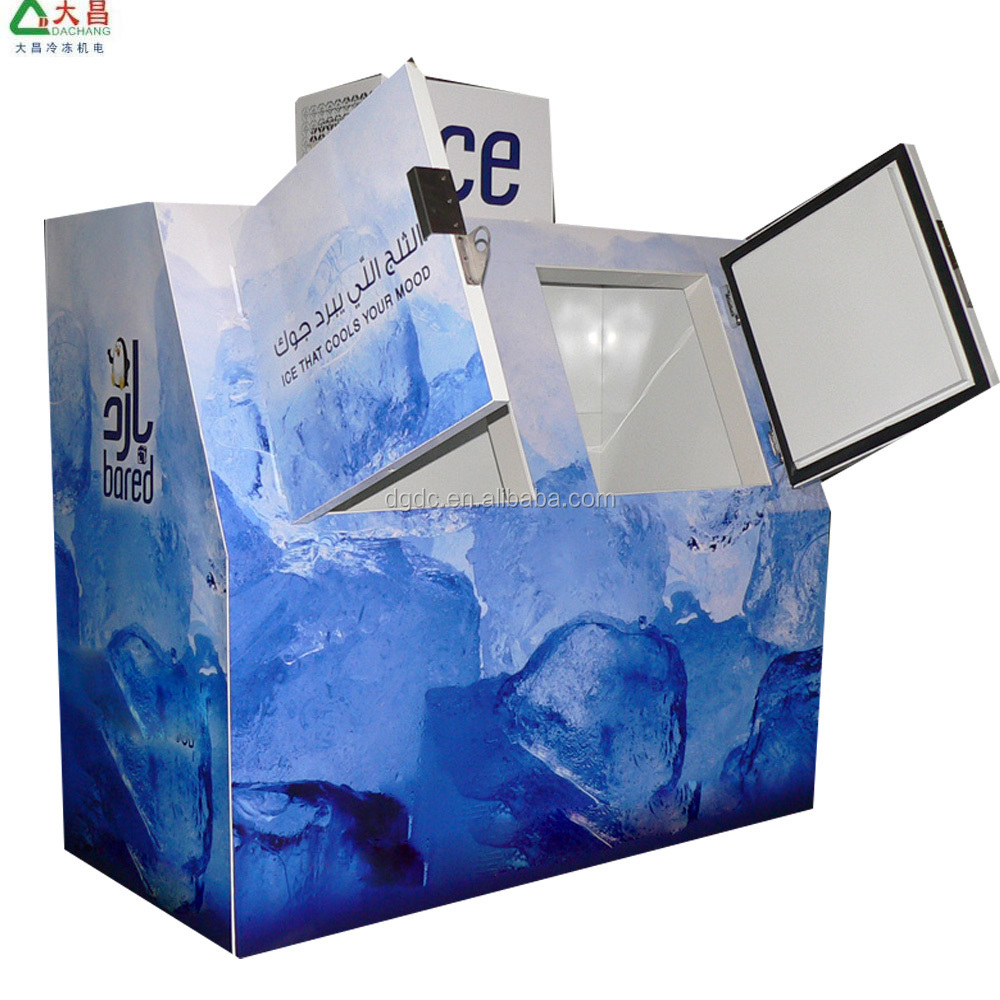

Outdoor Ice Storage Freezer for 125 bags bagged Ice
DACHANG Brand Ice Storage Freezer are produced under the highest quality control standards.
we are the leading manufacturer to do the Ice Storage Freezer in China . All of our Ice Storage Freezer is fashion design & excellent quality .
Freezed outdoor Ice Storage Freezer with CE and RoHs certificate !!!
It is designed to storgae dry ice or bagged ice .
- Ice Storage Freezer Feature
1. Material: Painted galvanized steel / stainless steel foamed in polyurethane insultation
2. Temperature: -5 degree C or -12 degree C adjustable
3. Compressor: Embraco
4. Refrigerant: R404a CFC free.
5. Embossed stucco aluminum /
galvanized steel
/ Stainless steel 304 solid door
Self-closing door with heavy duty hinge can open up to 180 degree, Solid door or glass door option, with firm lock.
6. The door is with gasket sealing & heater ( Hidden in door frame)
7. Static cooling with copper pipe (cold wall refrigeration system) or
Fan cooling optional(Automatic defrost system )
8. Voltage and frequency can be changed as customer's requirement.
9.Steel sheet:painted galvanized steel / stainless steel.
10. Logo sticker: Just according to clients' requirement .
- Slant design outdoor Ice Storage Freezer Specification (model DC-VT400)
| Model | DC-VT400 |
| Certificate | CE&Rohs |
| Temperature range | -5°C or -12 °C |
| Capacity(liters) | 400 |
| Bag(8 Lbs) | 125 pcs bagged ice |
| Steel finish | Painted galvanized steel |
| Insulation | Polyurethane 80mm thick |
| Dimension(W*D*H)inch |
72*35*48 |
| Dimension(W*D*H)mm | 1830*890*1220 |
| Door type | embossing aluminum steel solid door |
| Door size(W*H)inch/mm | 685*685mm |
| Door quantity | 2 |
| Refrigerant | R404a CFC-free |
| Cooling system | Fan cooling (Automatic defrost) |
| Refrigeration unit install | bottom mount refrigeration |
| Compressor brand | Embraco |
| 40ft container loading QTY | 24 pcs |
- more series outdoor Ice Storage Freezer for your choice
|
Model No.: |
DC-750 |
DC-650 |
DC-1000 |
DC-300 |
|
Temperature range: |
-5 to 0 ° C |
-5 to 0 ° C |
-5 to 0 ° C |
-5 to 0 ° C
|
|
Capacity (8lbs/bag): |
230 bags bagged ice |
200 bags bagged ice |
320 bags bagged ice |
100 bags bagged ice |
|
Material: |
Galvanized Paint Steel |
Galvanized Paint Steel |
Galvanized Paint Steel |
Galvanized Paint Steel
|
|
Dimension (W*D*H) Inch |
72 x 35 x 78 |
72 x 30 x 80 |
90 x 35 x 78 |
36 x 30 x 78
|
|
Dimension (W*D*H) MM |
1830*890*2030 |
1830*760*2030 |
2380*890*2030 |
910*760*2030 |
|
Cooling system: |
auto defrost/ cold wall refrigeration system |
auto defrost/ cold wall refrigeration system |
auto defrost/ cold wall refrigeration system |
auto defrost/ cold wall refrigeration system
|
|
40ft loading |
13 pcs |
19pcs |
13pcs |
36pcs |
|
Compressor brand name: |
ASPERA |
ASPERA |
ASPERA |
ASPERA |
- Ice Storage Freezer cooling system :
- Cold wall refrigeration unit system (copper pipes are around the Ice Storage Freezer wall )
Fan cooling system (Automatic defrost refrigeration system ) for the Ice Storage Freezer
- Ice Storage Freezer door : embossed stucco aluminum solid door
1. unit size : W685*H685 mm
2. Door handle : aluminium alloy door handle with lock
3. door with heater (hide under the door frame) ,which avoid the door frozen
4. Self-closing door with heavy duty hinge can open up to 180 degree
- More kind of Ice Storage Freezer door for your choice : Glass door ( hollow glass), Embossed stucco aluminum / galvanized steel / Stainless steel 304 solid door
- Following is the Ice Storage Freezer door handle & lock for your reference
- Ice Storage Freezer are designed suitable for outdoor use, the temperature control is weatherproof ,with cover
- we install the rain /smow shelter mounted above the Ice Storage Freezer doors to keep the rain and snow away!
- Ice Storage Freezer bottom is installed the wheel or feet
- C an paste the business logo on the Ice Storage Freezer surface
- Ice Storage Freezer is with Temperature test probe inside
- Ice Storage Freezer is with drainage exit inside
- High quality refrigerating unit for our Ice Storage Freezer
Ice Storage Freezer packaging information :
For the sample order , we will package the Ice Storage Freezer by plywood case,
For the full container , we will package the Ice Storage Freezer by timber frame
