Medium full servo traverse robot, this series are mainly applied to 150~320 T horizontal injection molding machines to take out the finished product. Single stage arms are adopted. AC servo motor can be added to take out sprue. Vertical, crosswise and traverse strokes are driven by AC servo motor.Low noise THK (JP) or PMI (Taiwan) linear guide way is used to guarantee quiet and stable movement. The complete set includes standard accessories.
- Product Details
- {{item.text}}
Quick Details
-
Horizonal Travel(mm):
-
1400mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runma
-
Weight:
-
190 kg
-
Dimension(L*W*H):
-
2155*1590*1620
-
Maximum payload:
-
5kg
-
Applied to IMM:
-
150~200T
-
Weight (KG):
-
190
-
Dry cycle time:
-
7-8
-
Vertical stroke:
-
800
-
Crosswise stroke:
-
Main arm:450 Auxiliary arm:150
-
Traverse stroke:
-
1400
Quick Details
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product 2023
-
Vertical Travel(mm):
-
800mm
-
Horizonal Travel(mm):
-
1400mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Runma
-
Weight:
-
190 kg
-
Dimension(L*W*H):
-
2155*1590*1620
-
Maximum payload:
-
5kg
-
Applied to IMM:
-
150~200T
-
Weight (KG):
-
190
-
Dry cycle time:
-
7-8
-
Vertical stroke:
-
800
-
Crosswise stroke:
-
Main arm:450 Auxiliary arm:150
-
Traverse stroke:
-
1400
Main explanation

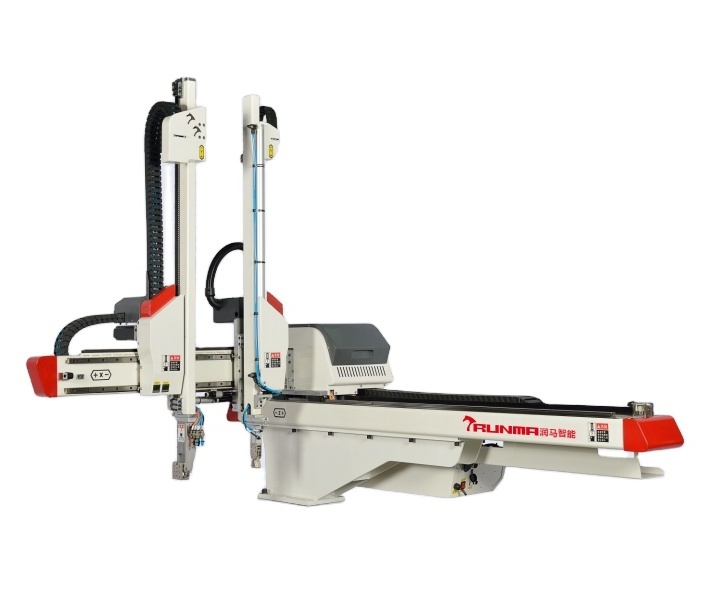

RQ800ID-Three/five-axis single traverse robot
Products Description
|
No
|
Item
|
Data
|
|
1
|
Model
|
RQ800ID-S3/S5
|
|
2
|
Applied to IMM
|
150~200T
|
|
3
|
Vertical stroke
|
800mm
|
|
4
|
Crosswise stroke
|
450mm(main arm) ；150mm(Auxiliary arm)
|
|
5
|
Traverse stroke
|
1400mm
|
|
6
|
Side-pose rotation angle
|
90°
|
|
7
|
Max payload(including EoAT)
|
5kg
|
|
8
|
Take-out time
|
1.4s
|
|
9
|
Dry cycle time
|
7-8s
|
|
10
|
Drive mode
|
X,Y,Z-ACservo motor
|
|
11
|
Working pressure(kgf/m2)
|
5~7
|
|
12
|
Air consumption(nl/cycle)
|
10
|
|
13
|
Power consumption(kva)
|
2.8
|
|
14
|
NW(KG)
|
190
|
