High alloy wear-resistant material, uniform and stable stirring.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHUCHENG
-
Motor Power:
-
2*37kw
-
Charging Capacity:
-
3000L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
21r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60S
-
Discharge Way:
-
Hydraulic/Pneumatic/Manual
-
Outline Dimension:
-
3500*2400*2150mm
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
10000 kg
-
Product name:
-

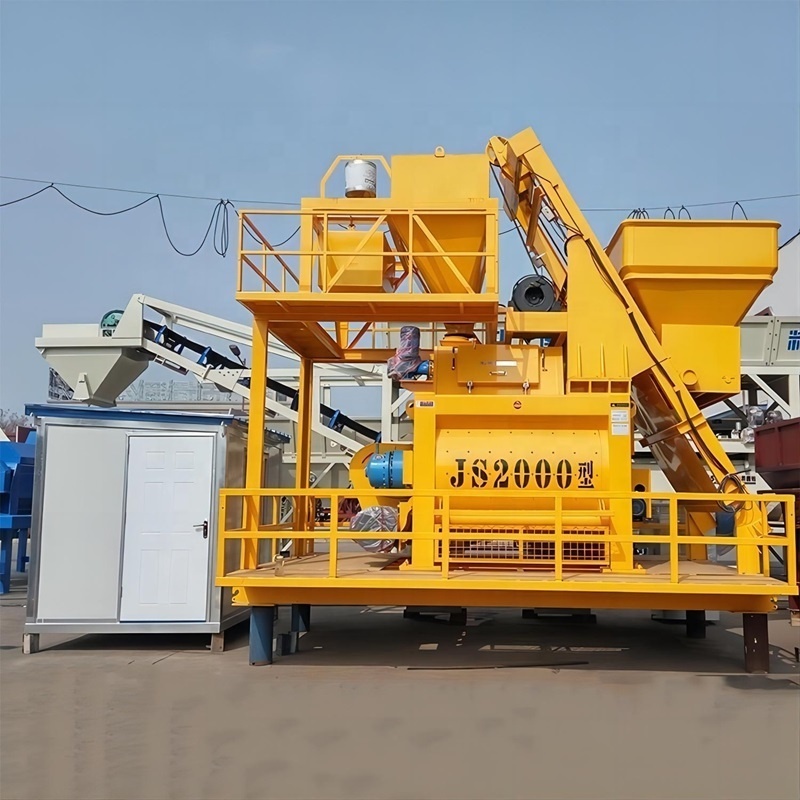

2 Cubic Meters Twin Horizontal Shaft Concrete Mixer For Sale
-
Capacity:
-
80-100m3/h
-
Mixing blade speed:
-
21r/min
-
Hoist Power:
-
21kw
-
Water Pump Power:
-
3kw
-
Loading type:
-
Belt
-
Mixing blade number:
-
7*2pcs
-
Lifting speed of hopper:
-
24.58m/min
-
Application:
-
Building Constrction
-
Color:
-
Customer's Requirement
Quick Details
-
Mixing Power:
-
2*37kw
-
Productivity:
-
80-100m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHUCHENG
-
Motor Power:
-
2*37kw
-
Charging Capacity:
-
3000L
-
Reclaiming capacity:
-
2000L
-
Speed of Mixing Drum:
-
21r/min
-
Water Supply Mode:
-
Water Pump
-
Working Cycle Period:
-
60S
-
Discharge Way:
-
Hydraulic/Pneumatic/Manual
-
Outline Dimension:
-
3500*2400*2150mm
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
10000 kg
-
Product name:
-
2 Cubic Meters Twin Horizontal Shaft Concrete Mixer For Sale
-
Capacity:
-
80-100m3/h
-
Mixing blade speed:
-
21r/min
-
Hoist Power:
-
21kw
-
Water Pump Power:
-
3kw
-
Loading type:
-
Belt
-
Mixing blade number:
-
7*2pcs
-
Lifting speed of hopper:
-
24.58m/min
-
Application:
-
Building Constrction
-
Color:
-
Customer's Requirement
Products Description
JS concrete mixer is also called double shaft concrete mixer. JS concrete mixer belongs to forced type concrete mixer, which is the second generation of the forced horizontal type concrete mixer.
It can also provide a supporting host for the mixing plant and is suitable for all kinds of large, medium and small prefabricated component plants, highways and bridges. , Water conservancy, wharf and other large industrial and civil construction projects.
Product Paramenters
Detail Images
Multiple shaft end sealing protection technology, high production efficiency and long service life without slurry leakage.
With grease filter, it can prevent impurities from entering the oil pump and affecting the sealing effect. It has the functions of improving equipment precision and prolonging equipment service life.
While slowing down, increase the output torque. Reduce the load inertia according to the motor output multiplication and deceleration ratio.
It consists of a motor, a water pump, a throttle valve, a cleaning device and a spray pipe. The water needed for mixing concrete is sent to the spray pipe by the water pump through the throttle valve, and the throttle valve can adjust the water-saving flow.
It has the functions of short circuit protection and overload protection. Insulation board design, safe and reliable, easy to operate and maintain.
Divided into: hydraulic control, pneumatic control and manual control; Through the air cylinder or hydraulic cylinder, the motor unloading is realized.
