Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
SIY
-
Model Number:
-
SIY-200M
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1150*670*30mm
-
Application:
-
Solar Power System
-
Product name:
-
solar china panel sola kit solar panel cell mono kit full black panel
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Black Anodized Aluminium Alloy
-
Keyword:
-
200W panel solar
-
Weight:
-
10kg
-
Connector:
-
MC4 Compatible Connector
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Certificate:
-
CE TUV IEC
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
All Black
-
Panel Efficiency:
-
22%
-
Warranty:
-
25 years
-
Brand Name:
-
SIY
-
Model Number:
-
SIY-200M
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
1150*670*30mm
-
Application:
-
Solar Power System
-
Product name:
-
solar china panel sola kit solar panel cell mono kit full black panel
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP68 Rated
-
Frame:
-
Black Anodized Aluminium Alloy
-
Keyword:
-
200W panel solar
-
Weight:
-
10kg
-
Connector:
-
MC4 Compatible Connector
-
OEM Order:
-
Acceptable
-
Glass:
-
3.2mm Tempered Low Iron
-
Certificate:
-
CE TUV IEC
Product Description
High-quality solar panel
We are a manufacturer of solar products. Our main products are monocrystalline solar panels, polycrystalline solar panels, PWM controllers, MPPT controllers and lithium batteries, as well as mounting brackets and poles, etc.Any questions, feel free to,contact us please.factory price solar panel pv module solar energy products full black solar panels 100w 150w 200w 300w
Torini Yu
WhatsApp: +86 13210672815
Email: torini@siysolar.com
Torini Yu
WhatsApp: +86 13210672815
Email: torini@siysolar.com
Specification
All Black Mono Whole Cells
|
Model Number
|
SIY-100M 18V B
|
SIY-150M 18V B
|
SIY-200M 18VB
|
||
|
Maximum Power at STC
|
105 Watts
|
150 Watts
|
200 Watts
|
||
|
Optimum Operating Voltage(Vmp)
|
18V
|
18V
|
18V
|
||
|
Optimum Operating Current(Imp)
|
5.99A
|
7.7A
|
11.11A
|
||
|
Open Circuit Voltage(VOc)
|
21.4V
|
23.4V
|
21.6V
|
||
|
Short Circuit Current(Isc)
|
6.2A
|
7.92A
|
12.55A
|
||
|
Module Efficiency
|
22%
|
|
|
||
|
Cell Grade
|
A
|
|
|
||
|
Max System Voltage
|
DC1000V(IEC)
|
|
|
||
|
Dimension(mm)
|
830*670*30
|
1150*670*30
|
1510*670*30
|
||
|
Weight(kg)
|
6kg
|
8kg
|
12kg
|
||
Our solar panels are connected in series with a single power of 5.4 watts cell. Smaller panel with high efficiency.
Our advantage
We use Class A cells, which have a high photoelectric conversion rate
We use Class A cells, which have a high photoelectric conversion rate
High-quality frame
Industrial-grade frame tightly fitting, to prevent deformation and damage
Industrial-grade frame tightly fitting, to prevent deformation and damage
Standardized production
Brand new components and standardized production to ensure product with good quality.
Brand new components and standardized production to ensure product with good quality.

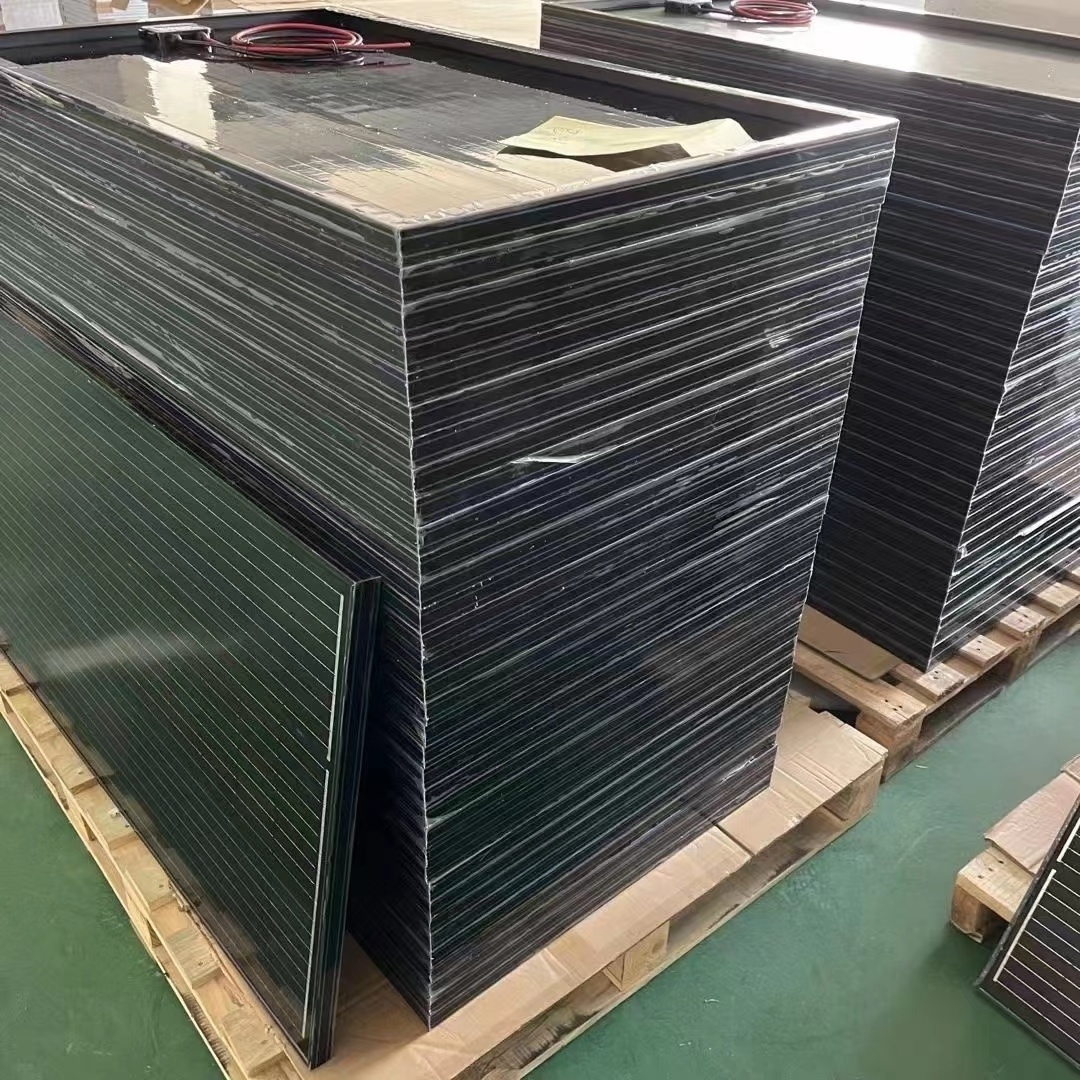

Details Images
Packing & Delivery
Corrugated carton, pallets, wooden cases
