Quick Details
-
Brand Name:
-
Landa
-
Dimension(L*W*H):
-
D60*H8(mm)
-
Weight (KG):
-
0.15 kg
-
Product Name:
-
15kg dc electromagnet
-
Certification:
-
CE RoHS ISO UL REACH
-
Work Model:
-
Holding Type
-
Holding Force (N):
-
150
-
Reset Time(s):
-
0.2
-
Service Life:
-
500 Thousand Times
-
Install Style:
-
screw
-
Insulation Class:
-
B
-
Hi-Pot Test:
-
AC 600V 50/60Hz 2s
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
Iron
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Landa
-
Dimension(L*W*H):
-
D60*H8(mm)
-
Weight (KG):
-
0.15 kg
-
Product Name:
-
15kg dc electromagnet
-
Certification:
-
CE RoHS ISO UL REACH
-
Work Model:
-
Holding Type
-
Holding Force (N):
-
150
-
Reset Time(s):
-
0.2
-
Service Life:
-
500 Thousand Times
-
Install Style:
-
screw
-
Insulation Class:
-
B
-
Hi-Pot Test:
-
AC 600V 50/60Hz 2s
4w 12v 150N Dc Electromagnet 8mm Thin Solenoid Lifting Miniature Flat Ac 110V 220V Holding Electromagnet
| Specifications | |||
| Brand | Landa | Product Name | 15kg dc electromagnet |
| Model | H6008 | Rated Voltage | DC 12v 24v |
| Power | 4w | Force | 150N |
| Waterproof Class | IP65 | Duty Cycle | 100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | 0.15kg |
| Install Style | Screw | Thread Size & Deepth(mm) | M6,8 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | D60*H8(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |

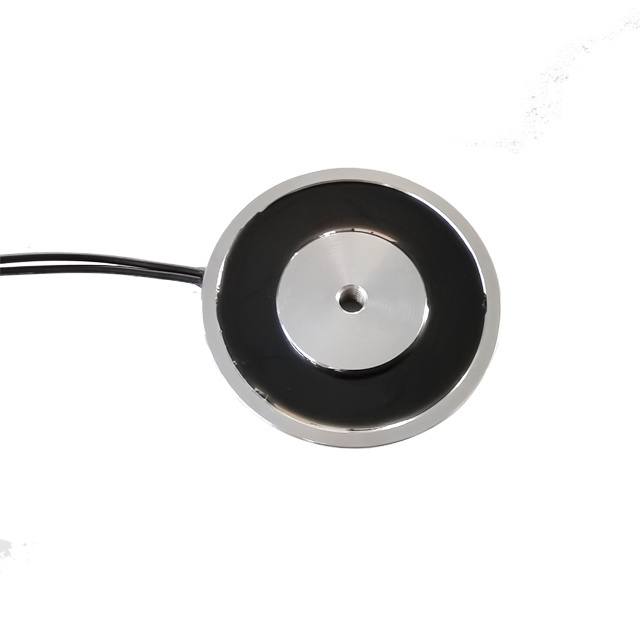

circular holding electromagnet
1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release circular electromagnet
|
