You can control 8 PCs or other media devices which support HDMI output, USB Keyboard and mouse input with only 1 set of keyboard,
mouse and monitor,
*support hot plug and don't need to install any driver. It is easy to switch devices by panel keys, remote
control and keyboard hot key command.
For the best quality we would suggest using 24 AWG or 26 AWG HDMI cable and should not exceed 10m/33ft
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HKS0801A30
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
New Product with 2 Ports HDMI KVM Switch RS232 3840x2160@30Hz
-
Key feature2:
-
Auto scan interval 5~3600 Seconds
-
Key feature3:
-
USB Auto KVM Switch
-
Port Selection:
-
hot-key/push button/auto
-
Product Type:
-
KVM Switch HDMI 8 port
-
Warranty:
-
1 Years
-
USB2.0:
-
Supported
-
EDID:
-
Yes
-
HDMI Connector:
-
HDMI Type A
-
HDMI Version:
-
Yes
Quick Details
-
Monitor Connections:
-
1 Ports
-
Resolution:
-
3840X2160
-
Brand Name:
-
TESmart
-
Model Number:
-
HKS0801A30
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
New Product with 2 Ports HDMI KVM Switch RS232 3840x2160@30Hz
-
Key feature2:
-
Auto scan interval 5~3600 Seconds
-
Key feature3:
-
USB Auto KVM Switch
-
Port Selection:
-
hot-key/push button/auto
-
Product Type:
-
KVM Switch HDMI 8 port
-
Warranty:
-
1 Years
-
USB2.0:
-
Supported
-
EDID:
-
Yes
-
HDMI Connector:
-
HDMI Type A
-
HDMI Version:
-
Yes
Product Description

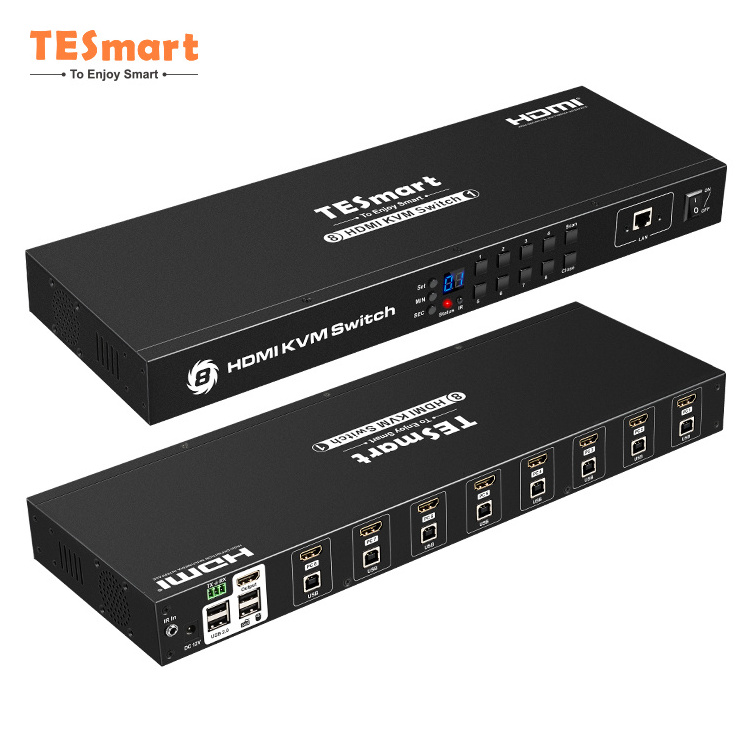

8 Port HDMI KVM Switch
Features:
1.Using one USB console controls 8 HDMI computers
2.Support Unix /Windows 3.Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system
lWith EDID emulators in every input ports, keep PCs always have correct display information
4.Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices
5.Support auto switching to monitor computers in a specified time interval
6.Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch
7.Available to use keyboard without any delay after switch input sources
8.Support resolution up to 3840*2160@30Hz
lWith extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just
as you have plug these devices directly to computer
9.Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Packing list:
1 * 8x1 HDMI KVM Switch
1 * DC 12V 2A Power Adapter
1 * IR Remote Control
1 * IR Receiver Cable
1 * 3 Pins Connector (For RS232)
2 * Rack-ears
1 * Quick-Start Guide
Product Parameters
|
HKS0801A30
|
8x1 HDMI KVM Switch
|
|
||
|
Functionality:
|
|
|
||
|
Auto Scan
|
Yes
|
|
||
|
Port selection
|
Front panel buttons
|
Yes
|
||
|
|
Keyboard hotkeys
|
Yes
|
||
|
|
IR remote control
|
Yes
|
||
|
|
Console commands
|
RS232 / IP
|
||
|
Technical:
|
|
|
||
|
Max. Resolution
|
3840x2160@30Hz
|
|
||
|
Auto to get EDID
|
Yes
|
|
||
|
Data rate
|
10.2 Gbps
|
|
||
|
Auto scan interval
|
5~3600 Seconds
|
|
||
|
Beep Sound
|
On/Off
|
|
||
|
OSD
|
No
|
|
||
|
Supported OS
|
Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system
|
|
||
|
Console ports
|
Keyboard emulation
|
1 * USB Type A
|
||
|
|
Mouse emulation
|
1 * USB Type A
|
||
|
|
USB 2.0 Hub ports
|
2 * USB Type A
|
||
|
|
Video /Audio
|
1 * HDMI Type A
|
||
|
|
RS232
|
3 Pins jack
|
||
|
|
LAN (TCP/IP)
|
1 * RJ45
|
||
|
|
IR extension input
|
1 * AUX
|
||
|
System ports
|
USB Data
|
8 * USB Type B
|
||
|
|
Video / Audio
|
8 * HDMI Type A
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Mechanical:
|
|
|
||
|
Chasing material
|
Metal
|
|
||
|
Product Dimensions
|
440 (L) x 150 (W) x 44.5 (H) mm
|
|
||
|
Item Weight
|
1800g
|
|
||
