Quick Details
-
Brand Name:
-
SINOMADA
-
Model Number:
-
DH08B2
-
Dimension(Long * Breadth * High):
-
4298*2680*2724mm
-
After Warranty Service:
-
Online support
Quick Details
-
Machine Weight:
-
8780 KG
-
Dozing Capacity:
-
Other, 1.9m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOMADA
-
Model Number:
-
DH08B2
-
Dimension(Long * Breadth * High):
-
4298*2680*2724mm
-
After Warranty Service:
-
Online support

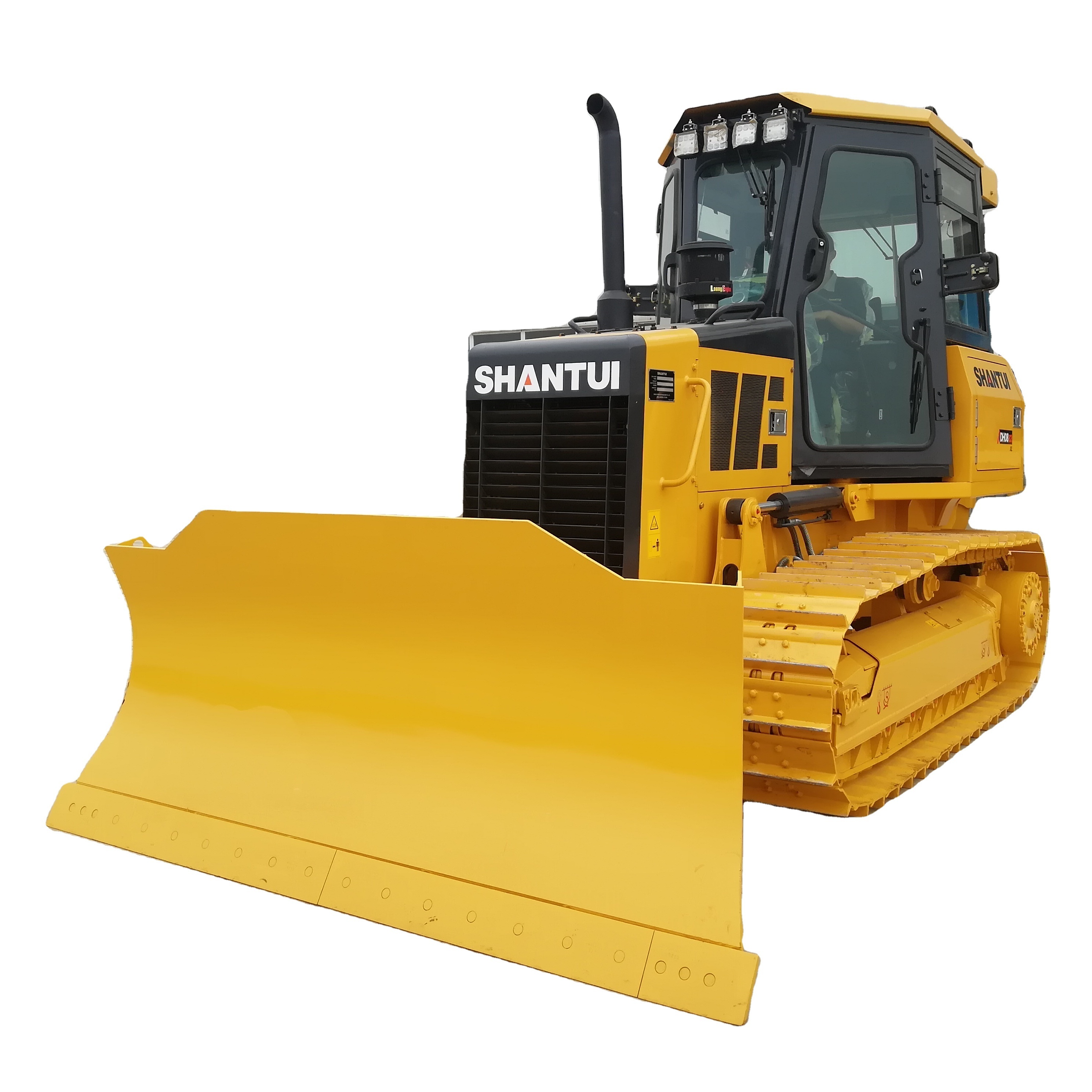

SHANTUI Mini Crawler Bulldozer 8 Tons Hydraulic Bulldozer DH08B2
* Power System
● Wei-chai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high parts interchangeability and low maintenance cost.
● The intelligent matching technology realizes the highest working efficiency and most reasonable fuel economy.
● Wei-chai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high parts interchangeability and low maintenance cost.
● The intelligent matching technology realizes the highest working efficiency and most reasonable fuel economy.
* Control system
● The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.
● The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.
● The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.
● The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.
● The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.
● The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.
* Easy maintenances
● The structural parts inherit the excellent quality of Shantui mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.
● The structural parts inherit the excellent quality of Shantui mature products.
● The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
● The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
● The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.
Product Paramenters
|
Parameter name
|
DH08 B2 XL(Extended version)
|
DH08 B2 LGP(Super-wetland version)
|
|
Performance parameters
|
|
|
|
Operating weight (Kg)
|
8780
|
9092
|
|
Ground pressure (kPa)
|
42.5
|
33.1
|
|
Engine
|
|
|
|
Engine model
|
WP4G95221
|
WP4G95221
|
|
Rated power/rated speed (kW/rpm)
|
70/2200
|
70/2200
|
|
Overall dimensions
|
|
|
|
Overall dimensions of machine (mm)
|
4298*2680*2724
|
4298*3150*2724
|
|
Driving performance
|
|
|
|
Forward speed (km/h)
|
0～9
|
0～9
|
|
Reversing speed (km/h)
|
0～9
|
0～9
|
|
Chassis System
|
|
|
|
Center distance of track (mm)
|
1650
|
1790
|
|
Width of track shoes (mm)
|
460
|
610
|
|
Ground length（mm）
|
2270
|
2270
|
|
Tank capacity
|
|
|
|
Fuel tank (L)
|
219
|
219
|
|
Working device
|
|
|
|
Blade type
|
PAT
|
PAT
|
|
Digging depth (mm)
|
450
|
450
|
|
Ripper type
|
3 shank
|
3 shank
|
|
Ripping depth (mm)
|
340
|
340
|
