Quick Details
-
Name:
-
Telescopic mast steel communication tower 4m-40m
-
Extended length:
-
4.0m steel communication tower
-
Closed length:
-
1.6m (Bottom base included)
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3 steel communication tower
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Quick Details
-
Brand Name:
-
steel communication tower
-
Model Number:
-
TAL-M4-1.6-30
-
Place of Origin:
-
Tianjin, China
-
Name:
-
Telescopic mast steel communication tower 4m-40m
-
Extended length:
-
4.0m steel communication tower
-
Closed length:
-
1.6m (Bottom base included)
-
Application:
-
lightning, WiFi Antennas ,VHF / UHF Antennas,camera,
-
Material:
-
aluminum alloy, stainless steel, fiberglass
-
number of sections:
-
3 steel communication tower
-
Wind load::
-
working rate:25m/s Max rate:35m/s
-
Temperature::
-
working temp:-40--+50C Storage Temp:-55--+70C
-
Bottom base::
-
Thickness: 10mm
-
Rotation platform:
-
Diameter:100-180mm
Product Description

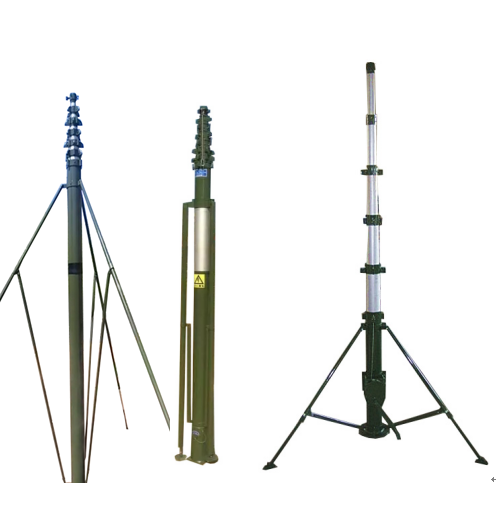

Telescopic mast steel communication tower 4m-40m
|
Specifications of steel communication tower :
|
|
|
|
Closed length:
|
1.6m
|
|
|
Extended length:
|
4.0m
|
|
|
Max.payload:
|
30kg
|
|
|
Diameter range
|
60-80mm
|
|
|
Material:
|
Main Pole: aluminum alloy
Bottom base,rotation platform and tripod: iron steel |
|
|
Color of steel communication tower:
|
We usually process three colors of Army green, the original color of aluminum, black, but any particular colour OEM is available, most of the customers prefer army green.
The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color. |
|
|
Appllication
|
The steel communication tower is suitable for car,ship or land. It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight, camera, Antenna, mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field. It could be also treated as a lifting applliance.
|
|
|
Extended height
(m) |
Closed height
(m) |
Section number
|
Top diameter
(mm) |
Bottom diameter
(mm) |
Loading weight
(kg) |
|
4
|
1.47
|
3
|
30
|
50
|
1-15
|
|
5
|
1.20
|
5
|
30
|
80
|
1-15
|
|
6
|
1.50
|
5
|
30
|
70
|
1-15
|
|
6
|
1.30
|
6
|
50
|
160
|
1-60
|
|
6
|
1.70
|
5
|
60
|
130
|
1-50
|
|
8
|
1.65
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
30
|
90
|
1-15
|
|
9
|
1.80
|
7
|
40
|
105
|
1-30
|
|
10
|
2.10
|
6
|
30
|
80
|
1-10
|
|
10
|
1.95
|
7
|
30
|
90
|
1-15
|
|
10
|
1.95
|
7
|
40
|
105
|
1-30
|
|
10
|
1.95
|
7
|
50
|
130
|
1-60
|
|
12
|
2.10
|
8
|
30
|
105
|
1-15
|
|
12
|
2.10
|
8
|
40
|
130
|
1-30
|
|
15
|
2.40
|
8
|
30
|
105
|
1-15
|
|
15
|
2.40
|
8
|
40
|
130
|
1-30
|
|
18
|
2.45
|
9
|
30
|
130
|
1-10
|
|
18
|
3.00
|
8
|
50
|
150
|
1-30
|
|
20
|
2.90
|
9
|
30
|
130
|
1-10
|
Detailed Images
|
Accessories of
steel communication tower
|
|
|
Main pole
|
1 unit
|
|
Pulling cord box with handle bars
|
3units
|
|
Handle lifting bar
|
2pieces
|
|
Tripod
|
1unit
|
|
Stainless steel sticks
|
6pieces
|
|
Ground anchor
|
3 pieces
|
|
Hand- operated valve (pneumatic mast)
|
1 piece
|
|
Air compressor(pneumatic mast)
|
1 piece
|
|
PU tube(pneumatic mast)
|
2 piece
|
|
Top platform
|
1 piece
|
|
Motor(electric mast)
|
1 piece
|
|
Electrical equipment control box(electric mast)
|
1 unit
|
|
Remote-controller(electric mast)
|
2 piece
|
|
Car clamps (when mouted on the car)
|
1 piece
|
|
Top plate( can be customized)
|
1 piece
|
